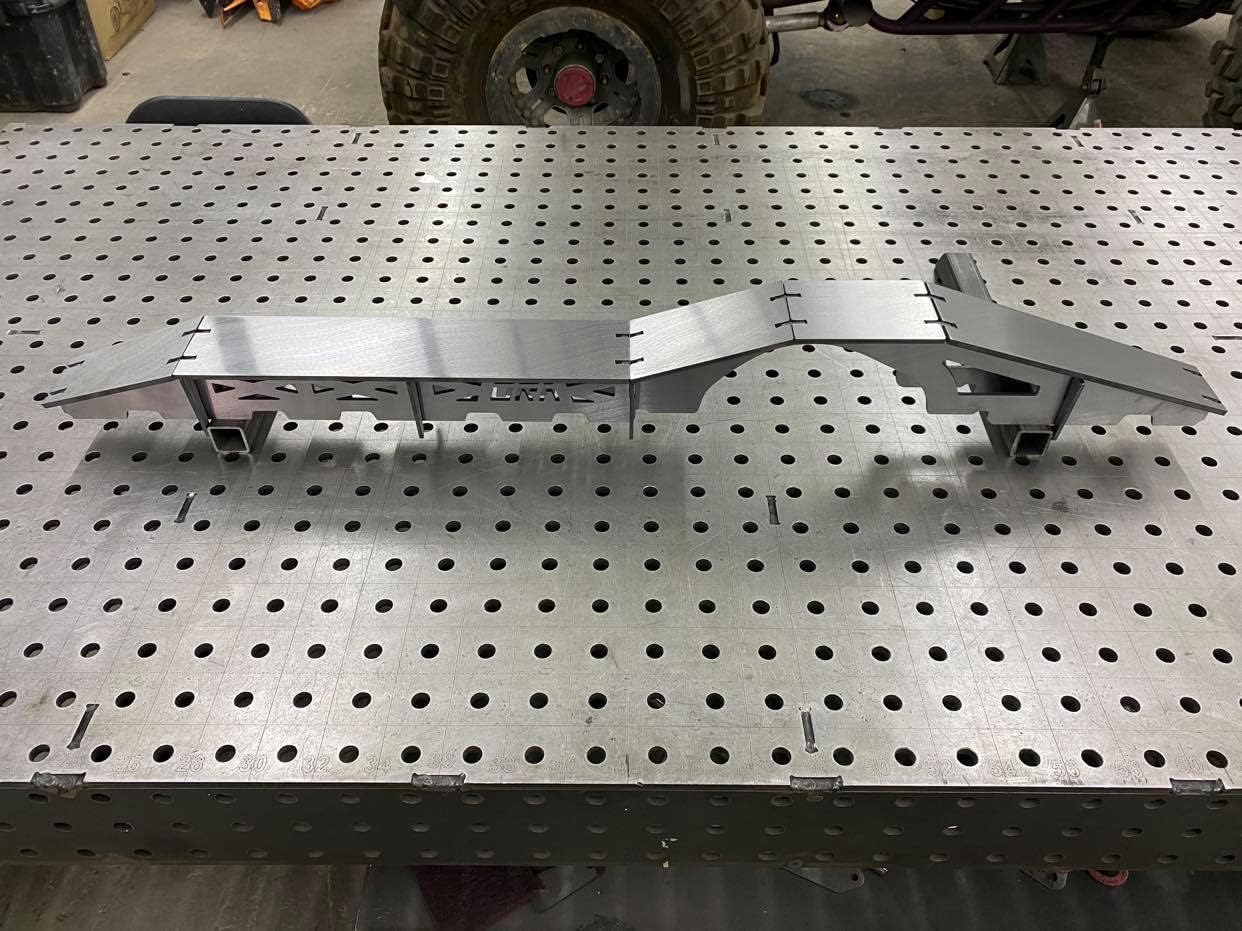

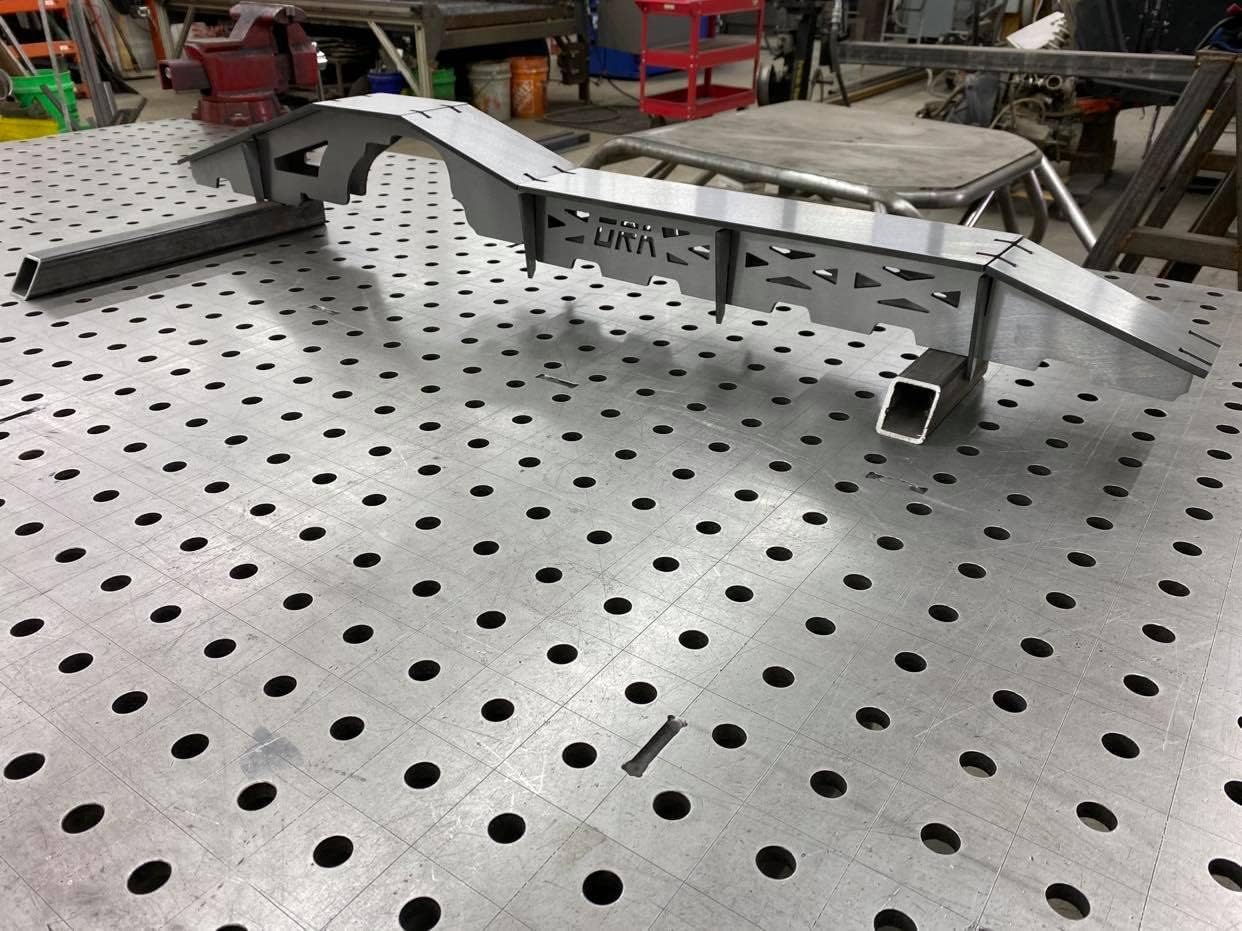

OFFROAD ANONYMOUS 71-77 HP Dana 44 Low Profile Truss

Our 71-77 HP Dana 44 low-profile Truss fits Ford Dana 44 front axles. We designed the low profile option with you in mind, allowing for more up travel and oil pan clearance. The Truss is roughly only 1″ taller than the top of the differential allowing for more clearance and easy link mounting. We wanted you to be able to fit the truss under a wide multitude of rigs while giving it a “cool” factor and being functional. With a truss, you’ll not only be reinforcing axle strength but this will additionally allow you to upgrade to custom suspension to fit your rigs goals. You will be required to remove the factory radius arm wedge mounts and other factory brackets in order to install the truss. Assembly is quick because of the keyed & slotted design. We quality check every truss before they go out the door to ensure great fitment. At Offroad Anonymous we wanted the trusses to be stout, so the truss uprights are made from 3/16″ steel & top is made from 1/4″ steel. We leave the truss as raw steel to allow you to match the color scheme of your rig. Measurements/Special Notes: 71-77 HP – Roughhousing measurements – Short side tube about 9″/ Long side tube about 24″ / Center section 14.75″ Axle housing has welded on style radius arm wedges Will NOT on cast in style wedge housings (please verify above notes before purchase) Our Upper Link Brackets fit like a glove on the truss! We also offer a large selection of Rod Ends and Link Tabs. We also offer various other trusses to match. Don’t need the low profile version check out our standard height truss.

• 71-77 HP – Roughhousing measurements – Short side tube about 9″/ Long side tube about 24″ / Center section 14.75″
• Axle housing has welded on style radius arm wedges
• Will NOT on cast in style wedge housings (please verify above notes before purchase)
• This kit requires welding and fabrication skills. Only tackle the welding yourself if you’re an experienced welder.
• Offroad Anonymous implies no guarantees or warranties & is not liable for improper installation.
• You will find that grinding & fitment may be required while installing the kit. Axles vary slightly from the manufacture; fabrication required.
• Weight: 27 lbs
• Dimensions: 48 × 7 × 2 in
• Material Thickness: Uprights/Gussets-3/16", Top Plates-1/4"
