NP-F Battery Adapter Plate Compatible with NP-F970 F960 F770 F750 F570 F550 Battery + BMPCC 4K and 6K DC Cable and LP-E6 Dummy Battery to Power Blackmagic Pocket Cinema Camera 4K/6K.

This product is a system that uses Sony NP-F series battery as the power supply, and converts a variety of different voltages and power interfaces through this product. With a variety of voltage outputs, as well as a variety of interface outputs, with good heat dissipation performance, equipped with a variety of fixed methods. It is an efficient and practical multifunctional power system. The Type-C input can charge NP-F series batteries. Compatibility: For BMPCC 4K 6K Cinema Camera and Canon EOS 5D2 5D3 5D4 6D 6D2 60D 7D 7D2 70D 80D 90D 5DSR Cameras. Notes: 1. Pay attention to voltage input and output parameters and interfaces to avoid damage to equipment and products. 2. In order to ensure the service life of the battery and components, the battery should be removed when not in use. 3. Do not store this product in a place with high temperature or humidity. 4. Do not use this product in an environment where the temperature is higher than 55°C or -20°C. 5. When this product works for a long time, please do not touch it to avoid burns. Specification: Battery input: NP-F550/F770/F970/F570 Type-C input: PD3.0 5V/9V/12V/15V/20V DC8V output (two): 8V 3A 5.5*2.1mm DC12V output: 8V 3A 5.5*2.1mm Type-C output: PD 5V/9V/12V/15V/20V/45W Plate material: shell ABS+ metal aluminum plate 4K cable size: DC12V/2A 5.5*2.5mm DC coil wound wire size: 8V/12V 5.5*2.5mm-5.5*2.5mm Package includes: 1 x NP-F battery plate 1 x BMPCC 4K/6K DC cable 1 x LP-E6 dummy battery 1 x DC male-to-male coiled cable 1 x 1/4" shoe stand 1 x Type-C to Type-C cable 1 x Storage Pocket

• ★ It is specially designed for Blackmagic Pocket cinema camera 4K 6K cameras, with one DC 12V/3A output and two DC 8V/3A outputs, one Type-C (input/output) port. BMPCC 4K/6K cameras can be powered using BMPCC 4K/6K DC locking cables and LP-E6 dummy battery.

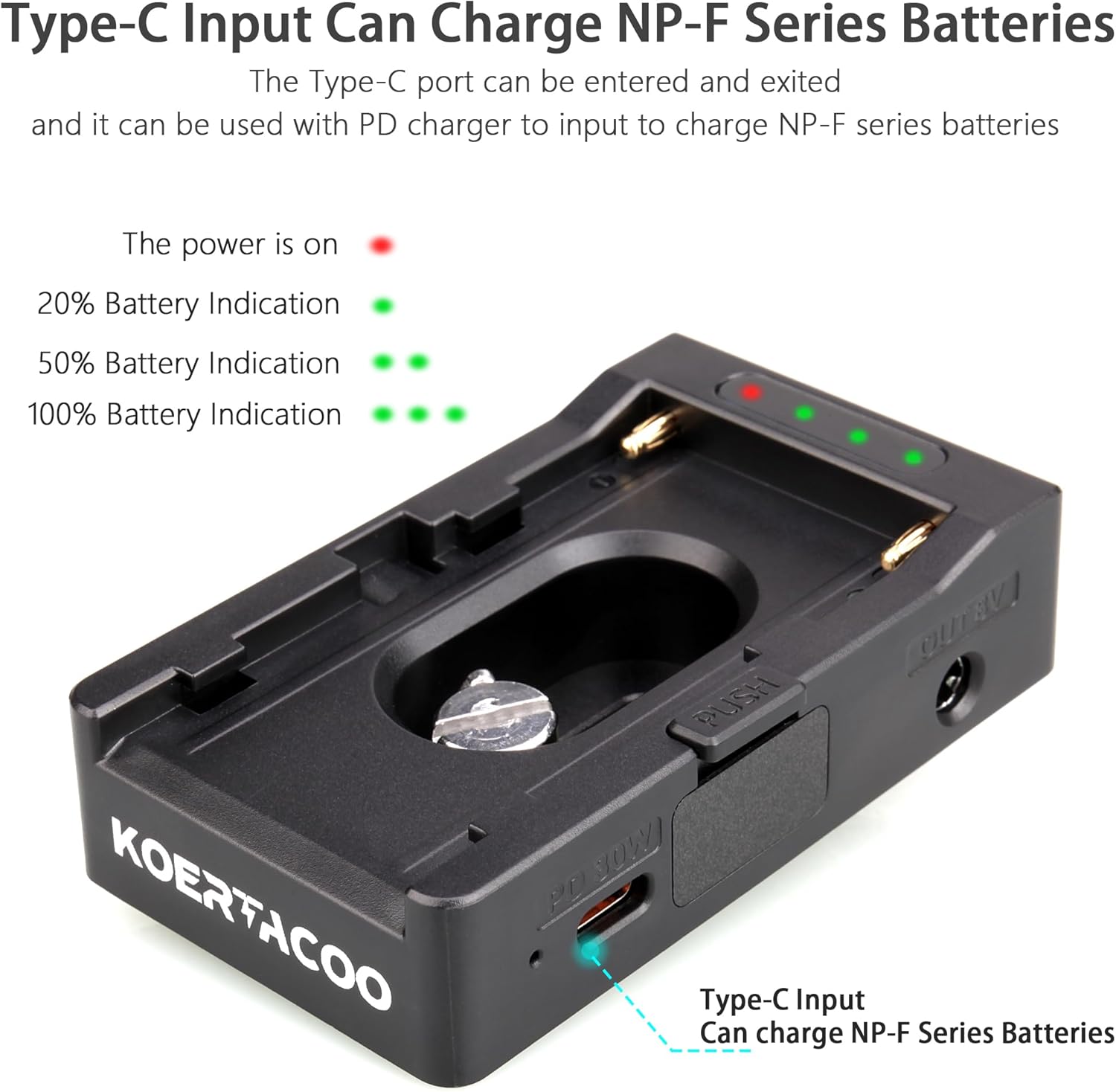

• ★ The Type-C PD port can input to charge NP-F series batteries, and can also output to power other devices such as cameras, mobile phones, etc.
• ★ Comes with shoe mount for mounting on cameras/rigs and other equipment. The battery plate has 4 indicators, A bright red LED indicates that power is on, 1 green light means 20% battery power, 2 green lights indicate 50% battery power, and 3 green lights indicate 100% battery power.

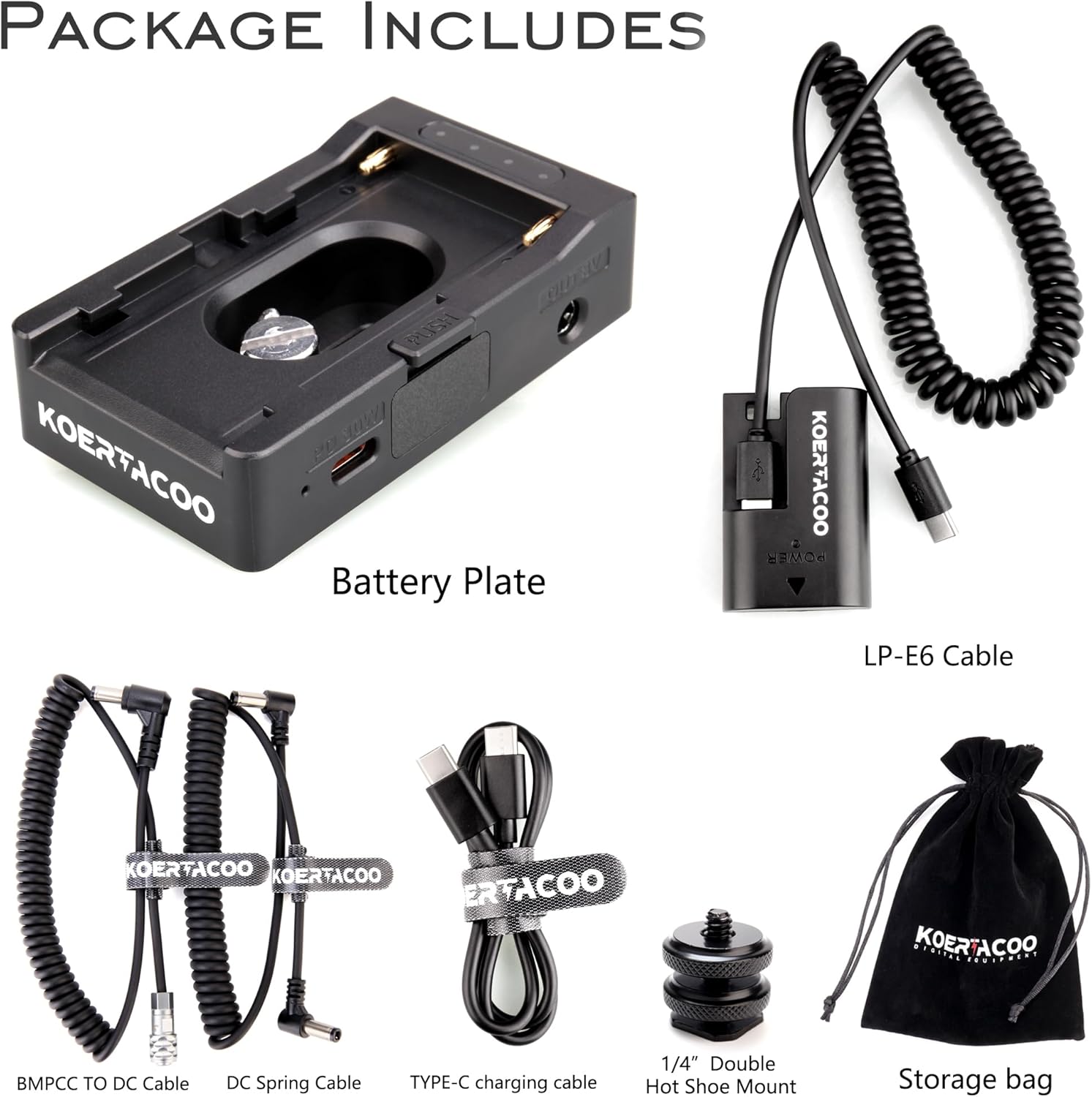

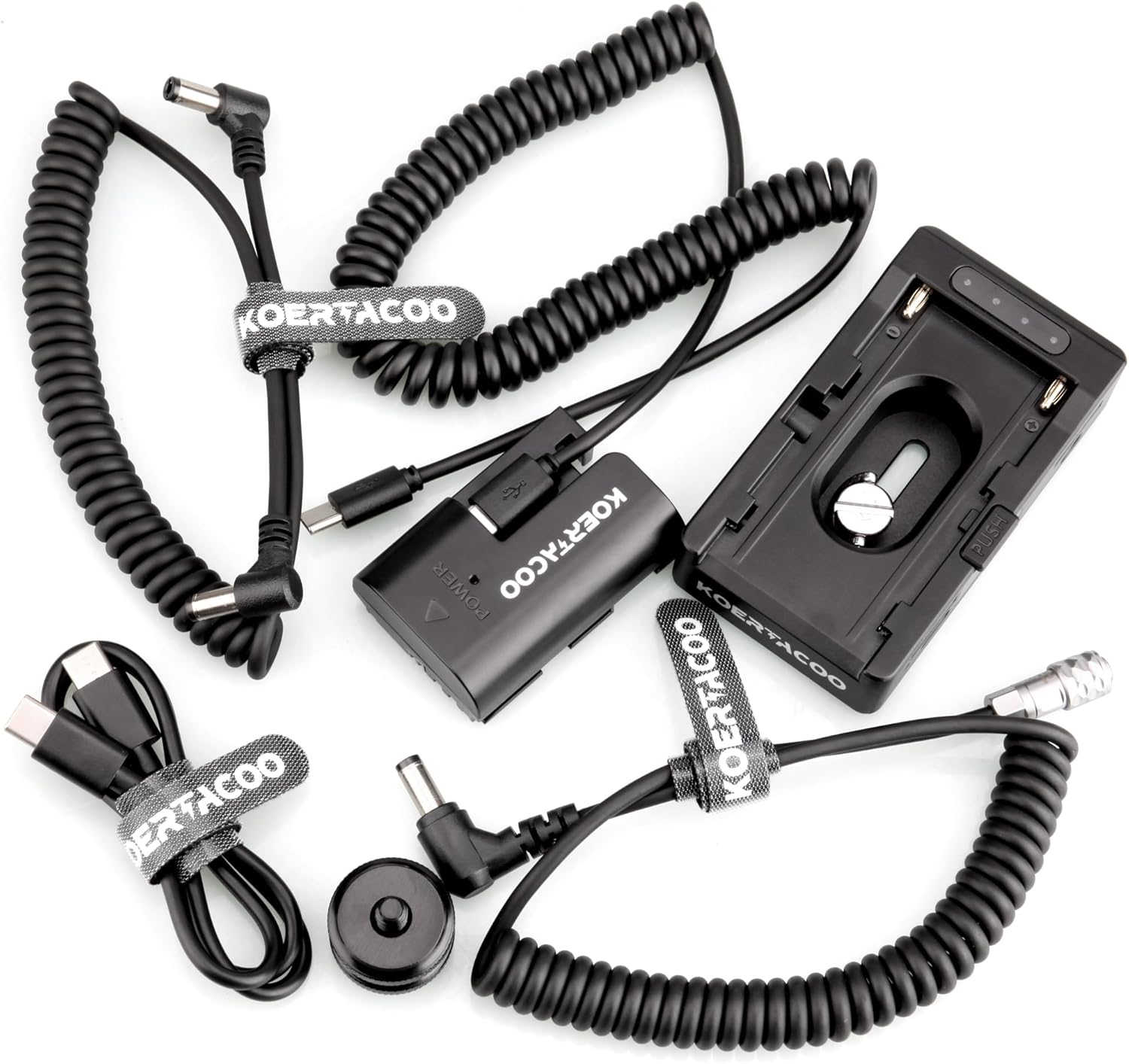

• ★ Compatible with Sony NP-F series batteries, including NP-F970, F960, F750, F770, F550, F570 batteries, with 8V/12V DC male to male coiled cable (included), can be used for video monitors, wireless video transmission, LED lights, additional equipment, etc.
• ★ The metal 2-pin connector is a self-locking connector. When the BMPCC 4K/6K camera is plugged in, it will lock automatically. When pulling out the DC cable, you need to pinch the metal connector on the top and pull it out, not directly pinch the cable.
