NOYITO Electronic Switch Control Board Isolation MOS FET High Low level Trigger Switch Control Module DC Control DC 5 to 36V Input Controlled voltage (Pack of 2)

Product description: 1: FET module, input and output are completely isolated. 2: Signal trigger side: digital high and low level. Can be connected to MCU port, PLC interface, DC power supply, etc. 3: Input signal voltage: 3V-24V; current: about 5mA. 4: The output can control high-power equipment. 5: Output controlled voltage: 5V~36V. Current: less than 5A (More than 5A need to add heat sink, the maximum can not exceed 20A). 6: Adopts F5305S power MOSFET can be used to input PWM, control the motor speed, and so on. Packag Included: 2pcs Electronic Switch Control Board Isolation MOS FET Pulse Trigger Switch Control Module

• FET module, input and output are completely isolated.
• Input signal voltage: 3V-24V; Current: about 5mA.
• Output controlled voltage: 5V~36V. Current: less than 5A (More than 5A need to add heat sink, the maximum can not exceed 20A).
• The output can control high-power equipment

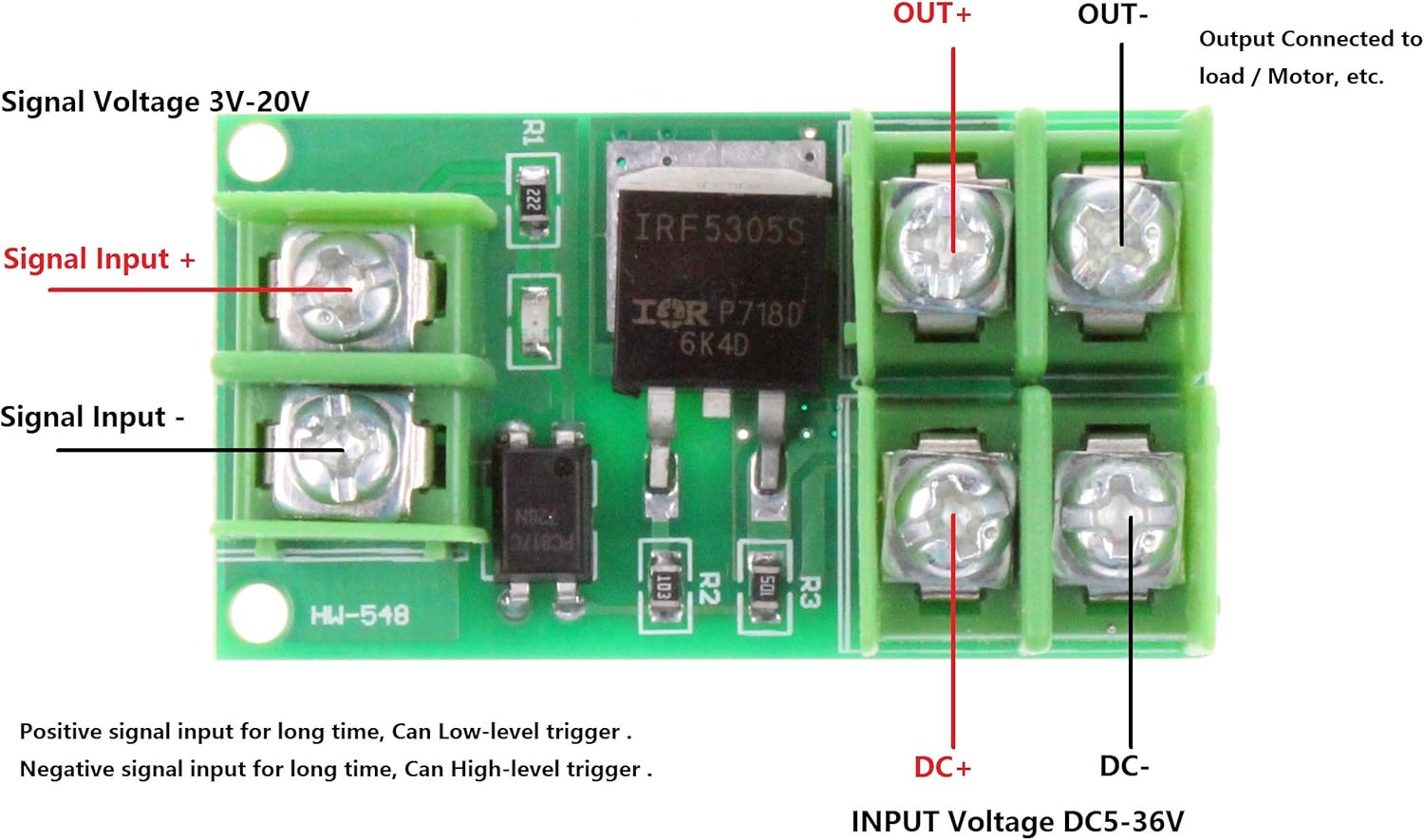

• Signal trigger side: digital high and low level. Can be connected to MCU port, PLC interface, DC power supply, etc. [You can refer to the wiring diagram of the product in the product picture item on the left.]
