NMRV040 1:5/7.5/10/15/20/25/30/40/50/60/80/100 Ratio Input Shaft 9mm Or 11mm Or 14mm Out Shaft 90 Degree Worm Gearbox Reducer

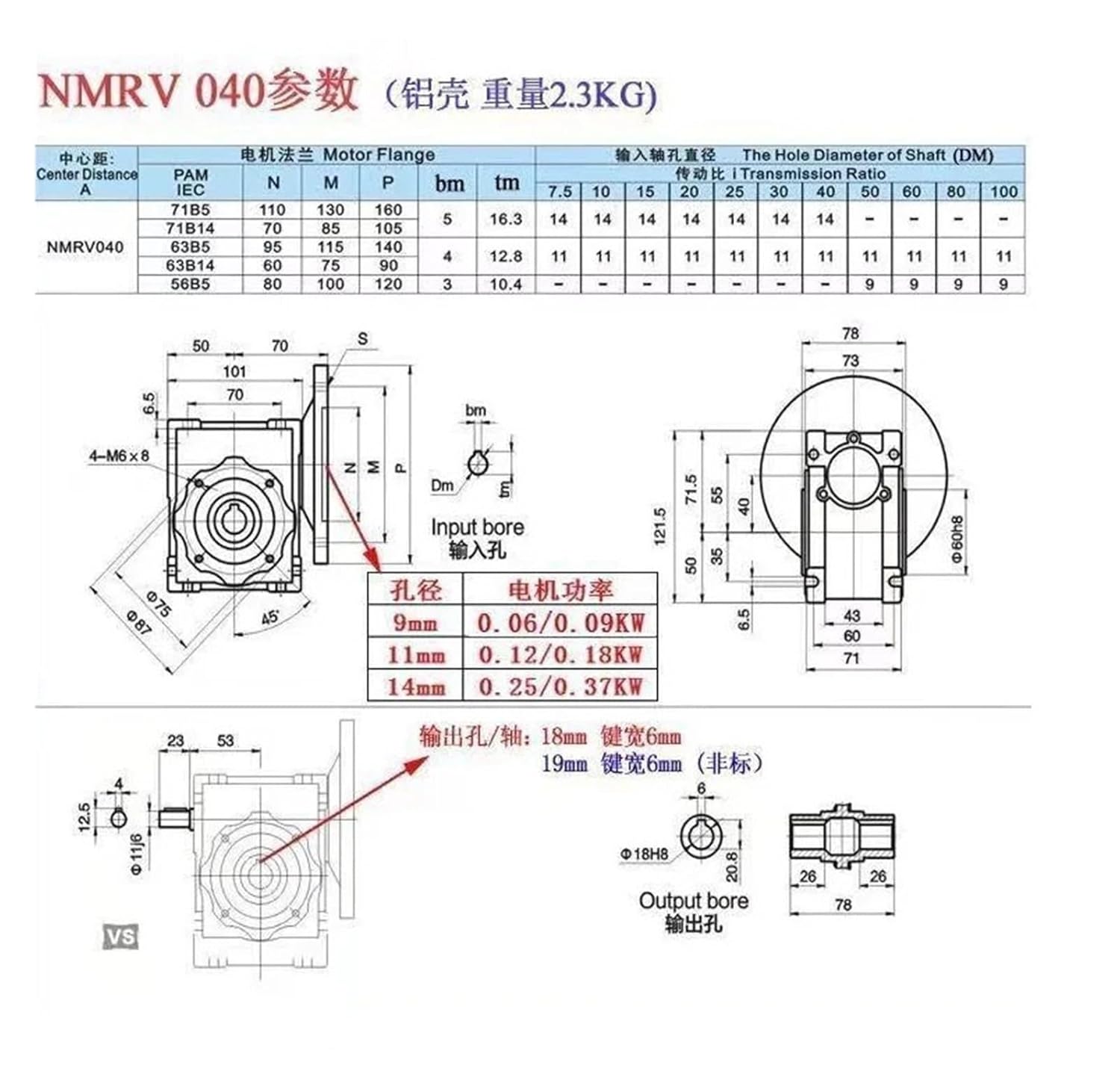

Package including1 pcs NMRV040 Worm Gearbox Speed ReducerNotice90 degree Gearbox NMRV040 Worm Gear Speed Reducer 9mm or 11mm or 14mm out hole diameter 18mmNote:With a ratio of 5:1,7.5: 1, 10: 1, 15: 1, 20: 1, 25: 1, 30:1,40: 1, 50: 1, 60: 1, 80: 1,100:1 for customers, please leave a message about the ratio transmission, input shaft (9mm or 11mm or 14 mm?) and Flanged Type when placing an order. Please leave a message about the gear ratio you need when you order.Color: silver and blue (Sometimes only one color is available)This is a worm gearbox connection without an output shaftWe also have NMRV 25/30/50/63/75/90 Models, if need, contact us please.Color: silver and blue (sometimes just one color)Material for worm reducer:housing: aluminum alloy die castWorm gear: Nodular cast iron and bronzeFeature of worm reducer gearbox:1) aluminum alloy die cast gearbox2) High accuracy worm gear and worm shaft3) Less noise and lower temperature increase4) Easy mounting anc connection, high efficiencyThe mounting dimension of worm reducer NMRV040:Torque : 90NMUsage : BOAT,Car,Electric Bicycle,Fan,Home ApplianceModel Number : NMRV040Continuous Current(A) : acording to the motorConstruction : Series WoundType : Gear MotorProtect Feature : Explosion-proofCommutation : BrushOutput Power : 370wOrigin : Mainland ChinaCertification : CCCoutput hole diameter : 18mmInput hole diameter : 9mm or 11mm or 14mmInput Speed : about 1500rpmSpeed ratio : 5:1,7.5:1,10:1,15:1,20:1,25:1,30:1,40:1,50:1 60:1,80:1,100:1IEC Flange : 71B5; 71B14; 63B5; 63B14; 56B5 for customers.Output Speed : Changes with the speed ratio
