Nitrogen Gas SpLoop Pressing Die Compressed Cylinder Industrial Die Supplies 320 Series Nitrogen SpLoop Stamping Die Compressed Welding Gas Regulators (YX320-007)

Item Type: Nitrogen Gas SpLoopMaterial: AlloyPurpose: Die compression nitrogen cylinderCylinder Diameter: Approx. 24.9mm / 1inPlunger Diameter: Approx. 15mm / 0.6inPackage List：1 x Nitrogen Gas SpLoop1 x Storage BoxNote:1. Do not use the nitrogen gas spLoop plunger rod for fixing, and the threaded hole at the end of the piston rod cannot be used as a lifting hole for lifting2. Do not modify the following aspects of the nitrogen gas spLoop:(1)Drill holes on the cylinder block of the nitrogen gas spLoop, the sealing Loop, etc.(2)The piston rod is shortened in order to reduce the stroke(3)Do not perform other processing on the nitrogen gas spLoop and its accessories3. Do not use nitrogen gas spLoops for purposes outside the scope of product catalog specifications4. Do not allow the Ammoniacal gas spLoop to return freely after being compressed, as this will cause damage to the internal structure

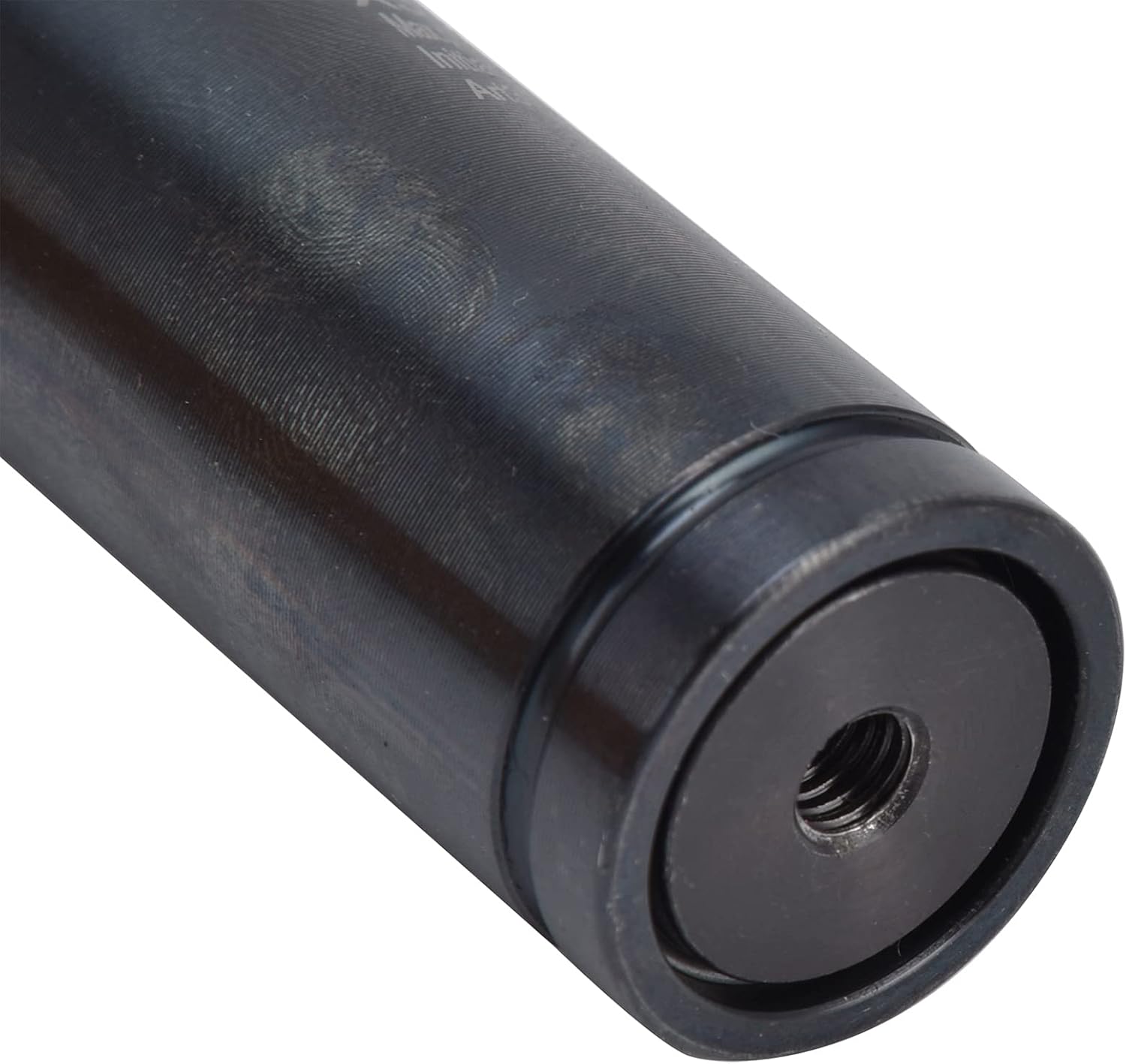

• The upper part of the nitrogen gas spLoop cylinder has a C shape notch that meets the ISO standard, and the bottom has screw hole for easy installation.

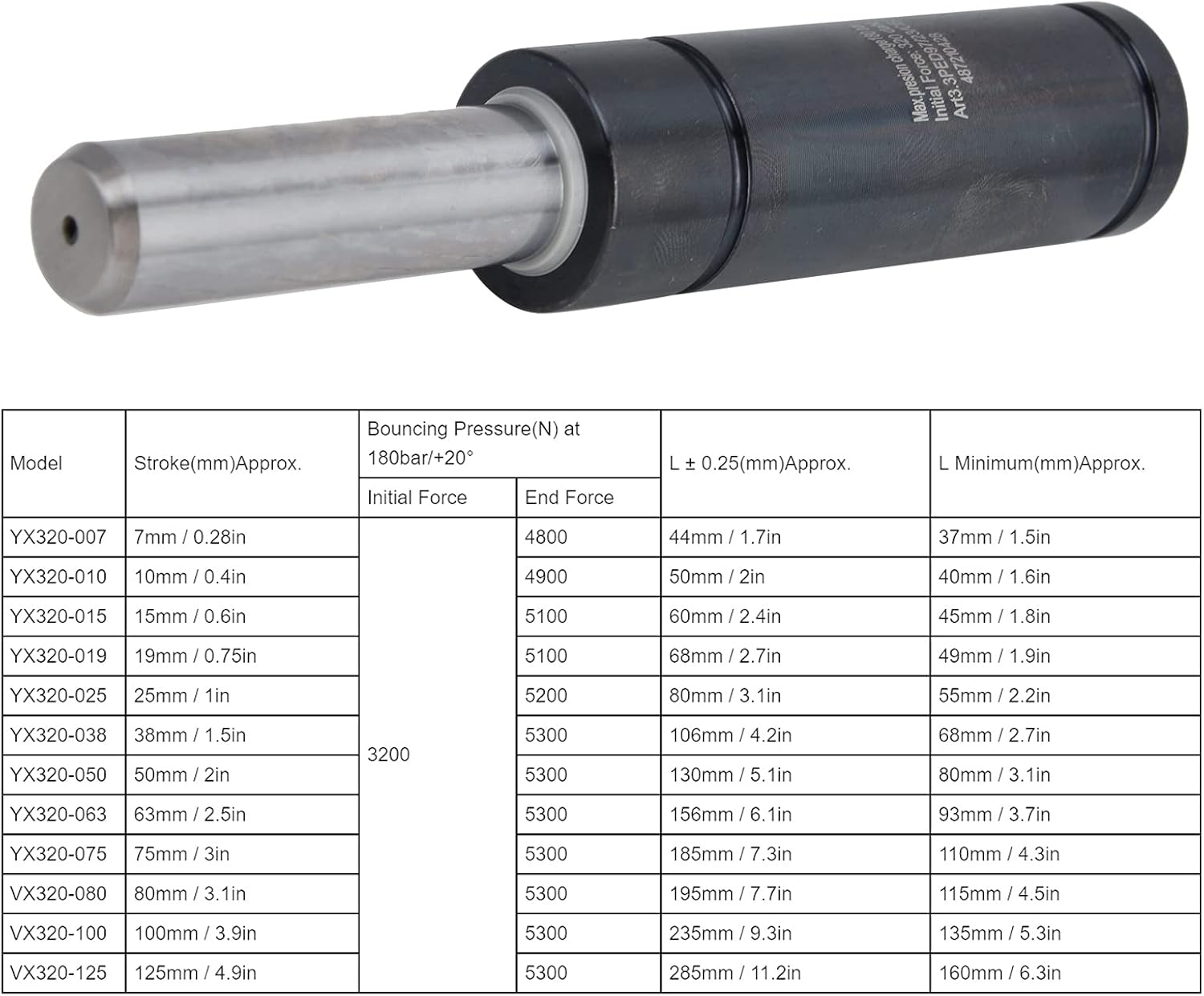

• The initial spLoop pressure of YX320 series nitrogen gas spLoop is 3200N, with long stroke and stable operation.
• With piston rod, the hardness is high after fine machining, and the surface roughness reaches about Ra0.02um.
• The cylinder body of the gas spLoop adopts an integral cutting and forming process to ensure its safety and stability.
• The cylinder body diameter of the nitrogen gas spLoop is 24.9mm, the plunger diameter is 15mm, and the adaptability is strong.
