Nanopi R6S Mini WiFi Router Linux OpenWRT - 8GB LPDDR4X RAM 64GB eMMC, 8K Video Decoder Encoder, RK3588S SoC with 6TOPs NPU, 2X 2.5G &1G Gbps Ethernet for IoT NAS Smart Home Gateway (Standard)
Product details
| Management number | 212354782 | Release Date | 2026/04/06 | List Price | $80.00 | Model Number | 212354782 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
-SoC-SoC: Rockchip RK3588SCPU: Quad-core ARM Cortex-A76(up to 2.4GHz) and quad-core Cortex-A55 CPU (up to 1.8GHz)GPU: Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2VPU: 8K 60fps H.265 and VP9 decoder, 8K 30fps H.264 decoder, 4K 60fps AV1 decoder, 8K 30fps H.264 and H.265 encoderNPU: 6TOPs, supports INT4/INT8/INT16/FP16RAM: 64-bit 8GB LPDDR4X at 2133MHzFlash: 32GB eMMC, at HS400 modeEthernet: one Native Gigabit Ethernet, and two PCIe 2.5G EthernetUSB: one USB 3.0 Type-A and one USB 2.0 Type-AHDMI:compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operationsupport up to 7680x4320 60HzSupport RGB/YUV(up to 10bit) formatmicroSD: support up to SDR104 modeGPIO:12-pin 0.5mm FPC connectorwith up to 1x SPI, up to 3x UARTs, up to 1x I2Cs, up to 2x SPDIF, up to 8x GPIOsDebug: one Debug UART, 3 Pin 2.54mm header, 3.3V level, 1500000bpsLEDs: 4 x GPIO Controlled LED (SYS, WAN, LAN1, LAN2)others:one IR receiver and the carrier frequency is 38KhzMASK button for eMMC updateone user buttonPower supply: USB-C, support PD, 5V/9V/12V/20V inputPCB: 8 Layer, 62x90x1.6mmAmbient Operating Temperature: 0℃ to 70℃-OS Support- FriendlyWrt 24.10, FriendlyWrt 23.05Android 12 Tablet, Android 12 TVOpenMediaVault, FriendlyCore Lite 20.04Debian 11 DesktopUbuntu 22.04 Desktop, Ubuntu 24.04 DesktopProxmox VE, Alpine-LinuxKernel version: Linux-5.10-LTS, Linux-6.1-LTS, U-boot-2017.09Weight: 55.1g（without Case) / 262g（with Case)Dimension: 62x90x1.6mm (without Case) / 68x94.5x30mm (with Case)
- Rockchip RK3588S SoC: NanoPi R6S Mini Router Integrated Rockchip RK3588S SoC (4 x Cortex-A76 up to 2.4GHz & 4 x Cortex-A55 up to 1.8GHz), Mali-G610 MP4 GPU compatible with OpenGLES 1.1, 2.0, and 3.2. VPU: 8K 60fps H.265 and VP9 decoder, 8K 30fps H.264 decoder encoder, with 6TOPs NPU, supports INT4/INT8/INT16/FP16.
- Open Source & Programmable: NanoPi R6S Mini Computer Wifi Router can support FriendlyWrt, a custom system based on the OpenWrt distribution. It is open source and ideal for developing IoT applications, NAS applications, smart home office gateways, 8K/4K video decoders and more.
- Larger Storage & Scalable: NanoPi R6S Mini Router with 64bits 8GB LPDDR4X RAM at 2133MHz, 64GB Flash eMMC at HS400 mode and support MicroSD slot/UHS-I up to SDR104 mode; Onboard USB3.0 and USB 2.0 Type A Host x1, PD USB-C x1. GPIO: 12-pin 0.5mm FPC connector; Debug UART x1, 3pin 2.54mm header. One 1G Native Gigabit Ethernet and dual PCIe 2.5G Gigabit Ethernet ports (1 WAN and 2 LAN), gets around 941Mbits/second.

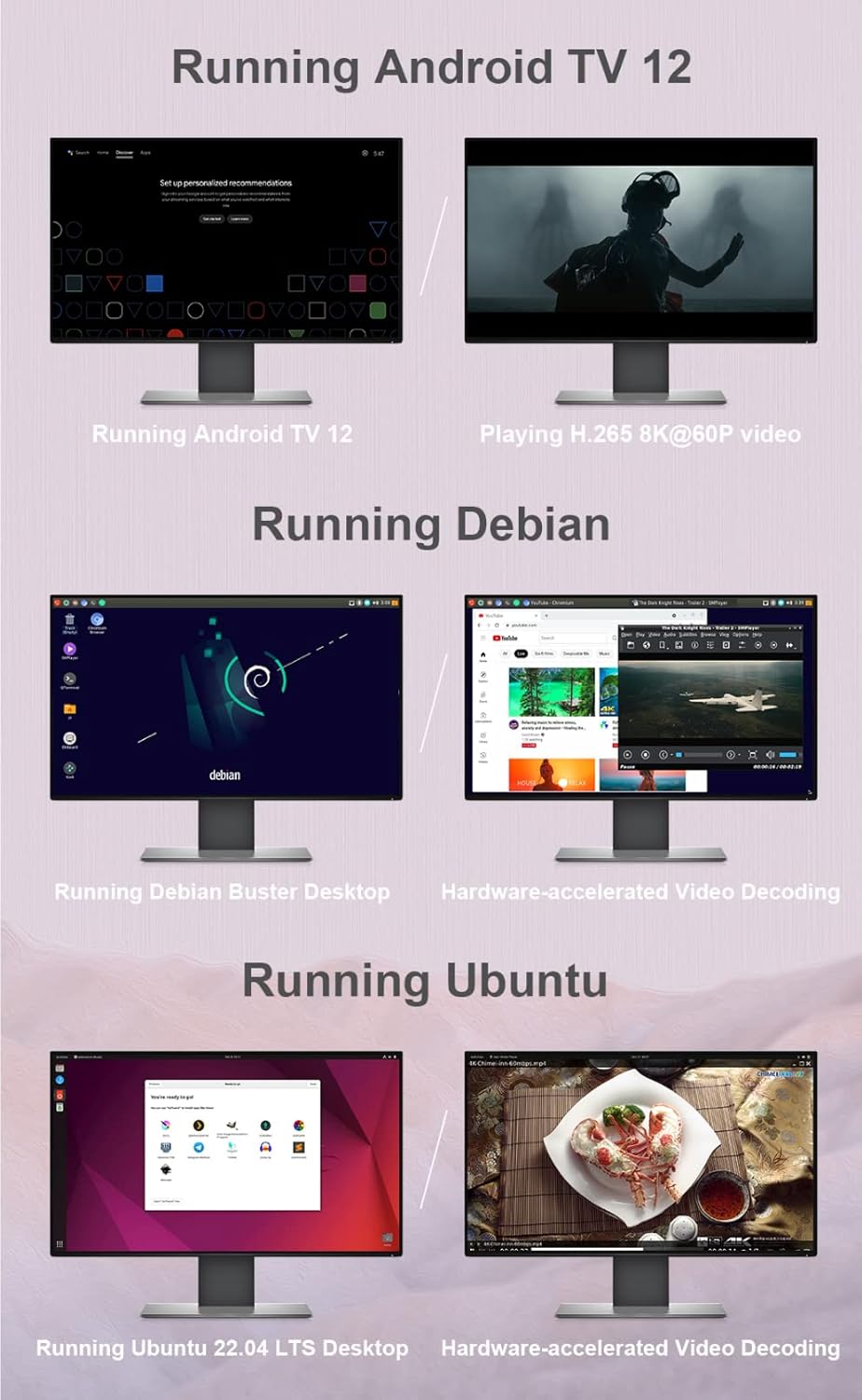

- Highly OS Compatible: NanoPi R6S Portable Travel Mini Router support Android TV 12/Tablet, Debian 10/11 Desktop, FriendlyWrt 24.10, FriendlyWrt 23.05, Ubuntu 22.04 LTS Desktop, Ubuntu 24.04 Desktop, FriendlyCore Focal Lite(Base on Ubuntu 20.04), OpenMediaVault, Proxmox VE. Kernel version: Linux-5.10-LTS/Linux-6.1-LTS/U-boot-2017.09.
- 8K Video Decoders & Encoders: NanoPi R6S Computer Mini Router support 8K 60fps H.265 and VP9 decoder, 8K 30fps H.264 decoder, 4K 60fps AV1 decoder, 8K 30fps H.264 and H.265 encoder. HDMI compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operation. support up to 7680x4320 60Hz and RGB/YUV(up to 10bit) format.
- Embedded Custom Development: Nanopi R6S wifi router is very suitable for enterprise customers to customize and develop mini machine vision systems with multiple network ports, and it is also suitable for embedded enthusiasts to discover, explore and create their own unique gameplay. It is a cannot-miss platform with infinite possibilities for light NAS, video playing, game center, geeks, fans and developers.
- USER MANUAL: "wiki.friendlyelec.com/wiki/index.php/NanoPi_R6S". All after-sales questions please click "Wapodev" store and ask the question. Or please leave the message to "wpd#youyeetoo&com (#--->@,&--->.)".
| Brand | WayPonDEV |
|---|---|
| Color | Standard |
| Voltage | 12 Volts |
| Model Name | Nanopi R6S Mini WiFi Router with 8GB LPDDR4X RAM 64GB eMMC |
| Manufacturer | WayPonDEV |
| Model Number | Nanopi R6S |
| BuiltIn Media | Show as picture |
| Antenna Location | Business, Gaming, Home |
| Compatible Devices | Gaming Console, Personal Computer, Tablet |
| Data Transfer Rate | 2.5 Gigabits Per Second |
| LAN Port Bandwidth | 10/100/1000 Mbps |
| Number of Antennas | 2 |
| Frequency Band Class | Dual-Band |
| RAM Memory Installed | 8 GB |
| Warranty Description | Wapodev Return Policy: You may return any new computer purchased from Wapodev that is "dead on arrival", arrives damaged, or is still in unopened boxes for the refund within 30 days of purchase. Wapodev reserves the right to return " Dead on Arrival" and charge a customer fee equal to 15 percent of the product retail price if the customer misrepresents the condition of the product. For any returned computer that is damaged due to customer misuse, is missing parts, or is in an unsellable condition due to customer intervention, the customer will be charged a higher restocking fee based on the condition of the product. Wapodev will not accept returns of desktop or notebook computers more than 30 days after receipt of the shipment. New, used, and refurbished products purchased from Marketplace Vendors are subject to each Vendor's return policy. |
| Wireless Compability | 802.11.be, 802.11ac, 802.11ad, 802.11ax |
| Connectivity Technology | Ethernet, HDMI, USB, Wi-Fi |
| Item Dimensions L x W x H | 3.74"L x 2.68"W x 1.18"H |
| Maximum Upstream Data Transfer Rate | 941 Megabits Per Second |
| Other Special Features of the Product | Access Point Mode, Guest Mode, QoS |
