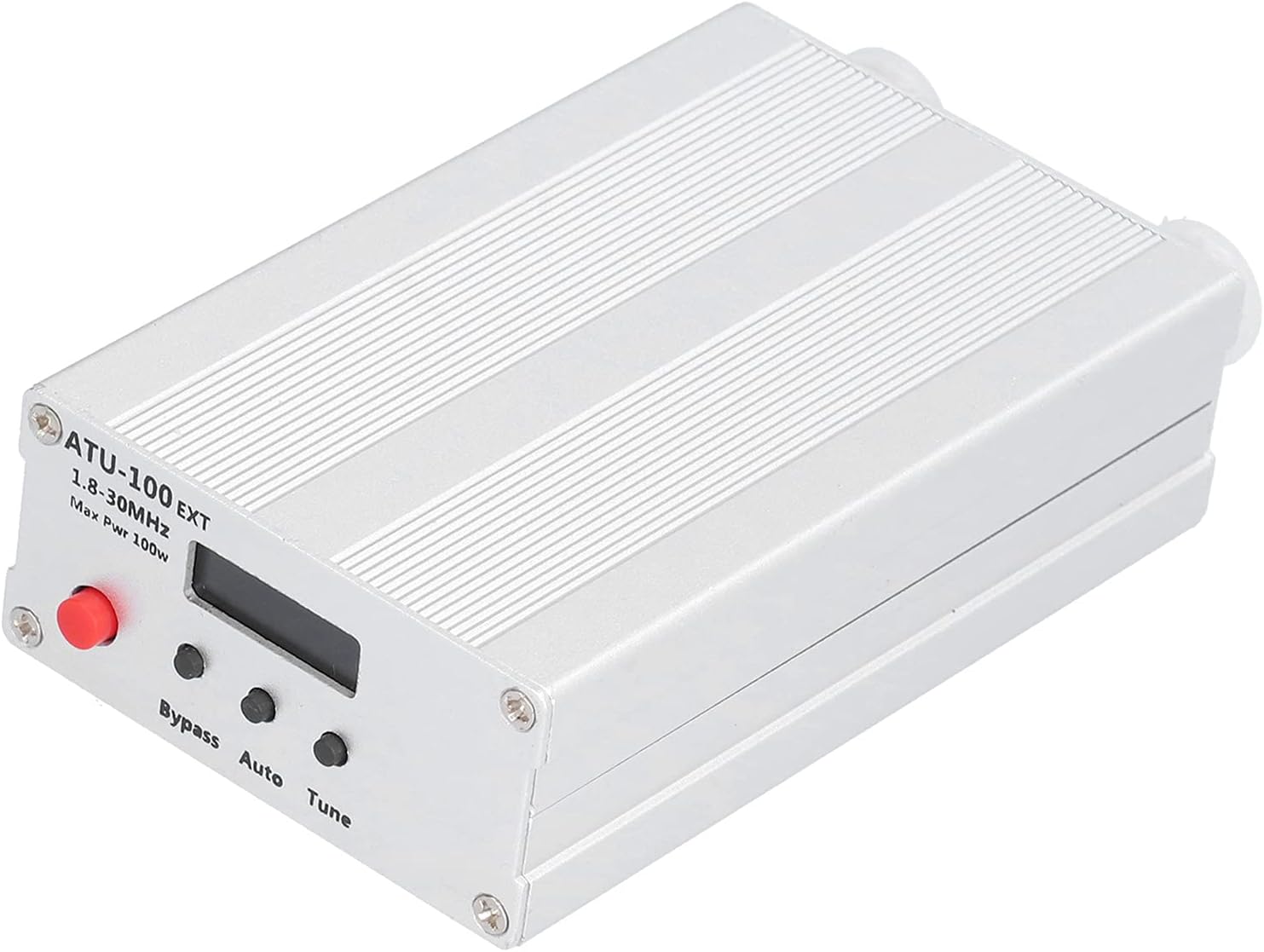

Mini Automatic Antenna Tuner ATU - 100EXT for Radio Equipment and Transceivers, 1.8MHz to 30MHz Frequency Range, Aluminum Housing, Antenna Power Line Resistance Matching Component

Item Type: Mini Automatic Antenna TunerMaterial: Aluminum alloyModel: ATU-100EXTMaximum Current Consumption: 400mAMaximum Workload: 100wattsMaximum Possible Measurement Power: 150wattsMinimum Power Required to Start Tuning: 5wattsSmallest Possible Measurement Power: 0.1wattsMeasurement Steps up to 10Watts: 0.1wattsMeasurement Steps with Power Greater than 10 : 1wattPower Measurement Accuracy: 10%Maximum Installation Inductance: 8.53μHMinimum Inductance Step Size: 0.05μHMaximum Installed Capacity: 1869pFMinimum Capacitance Step Size: 10pFFrequency: 1.8Mhz~30MhzPackage List：1 x Mini Automatic Antenna Tuner1 x Connection LineNote:Do not use over load.

• Broad Frequency Range: This automatic antenna tuner supports a frequency range from 1.8MHz to 30MHz, serving as a functional component for amateur radio equipment and transceivers.
• Automatic Operation Mode: The device operates automatically without the requirement to press buttons or manage external control devices during the matching process.
• Resistance Matching Function: This equipment is engineered to perform the function of matching the resistance of the antenna power line to manage signal flow between the input and output.
• Signal Transmission Mechanism: The internal configuration allows for signal transmission from the input to the output based on capacity on the channel and induced temporary shutdown.
• Aluminum Housing Construction: Constructed from aluminum material to provide a light weight housing that offers strength and resistance for use in various radio environments.
