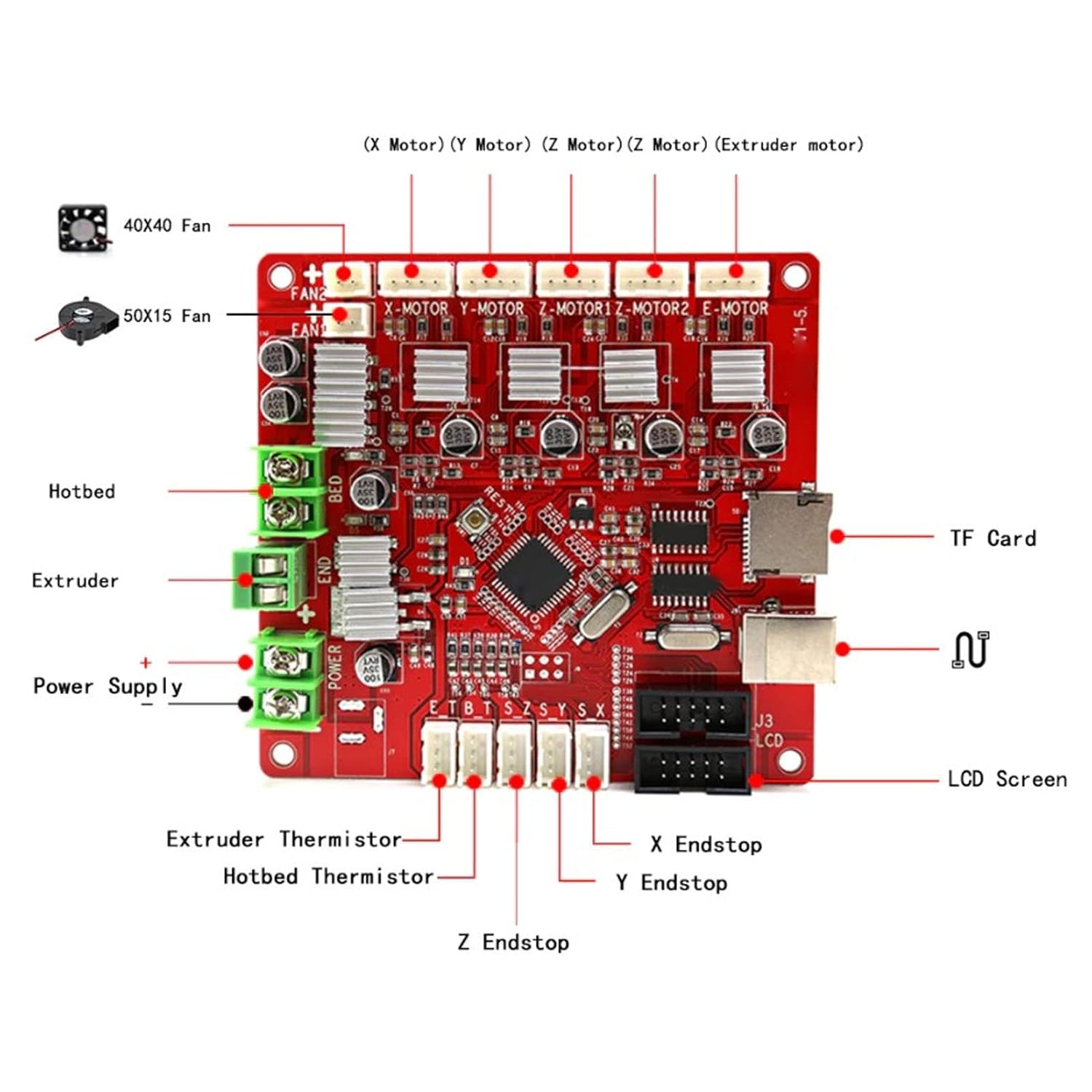

Mini 3D Printer Controller Board, 3 Way Output 3D Printer Control Board MOS Tube 16 Subdivision Stepper Driver Upgrade Motherboard with USB Port 3D Printer Parts for A8 Plus 3D

How to Use: Install and use directly Specification: Item Type: 3D Printer Motherboard Applicable Model: Suitable for A8 PLUS 3D printer Power Input: 12-24V, with USB interface Connection: Support for Ramps1.4, 2004 LCD and 12864 LCD control board Package List: 1 x Motherboard

• 【MAIN FUNCTION】The highly integrated motherboard solves the problem that the for Ramps1.4 combination interface cumbersome and prone to failure, and can directly replace the for Ramps1.4.
• 【GOOD STABILITY】The optimized layout wiring and heat dissipation design make the performance of the whole board more stable, support the automatic leveling of the proximity probe, and can debug it yourself.
• 【DRIVER BOARD】The motherboard driven by the onboard 4 way A4988 16 subdivision stepper driver board motor, and has USB interface, which convenient for connection and stable in
• 【GOOD HEAT DISSIPATION】Supports 12-24V power input, and adopts high performance low on MOS tube the driver, with good heat dissipation and effectively solves the heating problem of the hot bed MOS tube.
• 【APPLICABLE MODEL】This motherboard suitable for A8 PLUS 3D printer, and can be directly connected to for Ramps1.4, 2004LCD and 12864LCD control board (without L type adapter board, already integrated).
