MicoAir Optical Flow & Range Sensor MTF-01P Compatible with Ardupilot/PX4/INAV(AUTO FIRMWARE DETECTION)

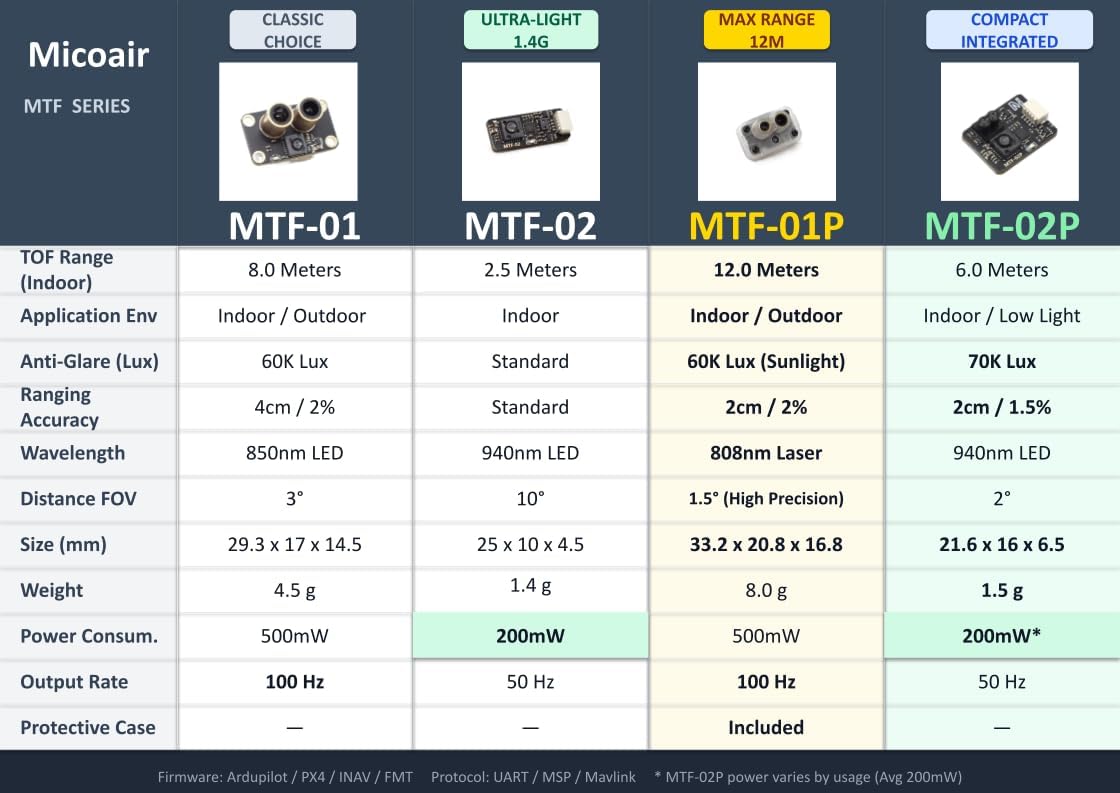

MTF-01P Optical Flow & LiDAR Sensor ModuleMTF-01P is a 2-in-1 optical flow + laser ranging sensor module designed for mainstream open-source flight controller ecosystems. It focuses on fast, hassle-free setup: with automatic detection technology, the module can recognize the connected flight controller firmware and automatically match the appropriate communication protocol, reducing manual configuration and simplifying integration.By using laser-based ToF ranging, MTF-01P is built to handle strong-light environments and deliver stable range/altitude sensing for outdoor use. Combined with optical flow data, it helps improve low-altitude control and positioning performance in real-world flight scenarios. Overall, MTF-01P is made for users who want a practical, easy-to-integrate sensing solution without a complicated setup process. Technical SpecificationsSensor Type: Laser Rangefinder + Optical FlowOutput Mode: UART 115200Output Interface: LVTTL (3.3V)Protocol Support: Micolink / Mavlink / MSP (Auto-switching)Output Rate: 100HzSupported Firmware: Ardupilot / PX4 / INAV / FMTTOF Range: 12m @ 90% reflectivity (600Lux); 8m @ 90% reflectivity (60KLux)Ranging Accuracy: 2cm (0.1-2m); 2% (>2m)Dead Zone: 2cmLight Source: Laser (Center Wavelength: 808nm)Emitting Angle: 1.5°Optical Flow FOV: 42°Max Speed Measurement: 7m/s @ 1m heightPower: 5V Supply Voltage; 500mW Power Consumption Physical & MountingDimensions: 33.2 x 20.8 x 16.8 mmWeight: 8g (Ultralight)Mounting Holes: 24.3 x 12mm, Φ2.5mm Resources & SupportUser Manual: Complete documentation is available on the MicoAir official website.Tutorials: Comprehensive guides and video tutorials covering setup for Ardupilot, INAV, and PX4 firmware can be found on the official website and product video channels. Package Includes1x MTF-01P Module1x 15cm SH1.0 4PIN-to-4PIN Cable1x 20cm SH1.0 4PIN-to-SH1.25 6PIN Cable1x 20cm SH1.0 4PIN-to-GH1.25 6PIN Cable

• AUTO FIRMWARE DETECTION & AUTO PROTOCOL MATCHING – Built with automatic detection technology to identify the connected flight controller firmware (e.g., ArduPilot / INAV / PX4) and automatically select the correct output protocol—no manual protocol setting required. Greatly simplifies setup and reduces configuration errors.
• LASER ToF RANGING FOR LONGER RANGE & STRONG-LIGHT PERFORMANCE – Uses a laser-based ToF ranging sensor (LiDAR-style ranging) designed for anti-sunlight interference. Provides an extended ranging capability of 0.02–12 m @ 90% reflectivity and helps maintain stable sensing in outdoor/strong light environments.
• HIGH-ACCURACY RANGE DATA WITH SMALL 2 cm DEAD ZONE – Ranging dead zone as low as 2 cm. Accuracy specification: 4 cm (0.02–2 m @ 90% reflectivity) and 2% (>2 m @ 90% reflectivity), providing reliable distance/height input for low-altitude control scenarios.
• 2-IN-1 OPTICAL FLOW + RANGE SENSOR (PMW3901 INSIDE) – Integrates PMW3901 optical flow with ToF ranging in a compact module, delivering both motion (flow) and distance information to support positioning and altitude-hold related use cases.
• 100 Hz OUTPUT + UART + COMPACT 8 g DESIGN – Outputs data via UART at up to 100 Hz. Supports MAVLink v1 (ArduPilot/PX4), MSP v2 (INAV), and Micolink (FMT), and parameters can be adjusted via MicoAssistant. Compact size 33.2 × 20.8 × 16.8 mm, weight 8 g, with temperature compensation.
