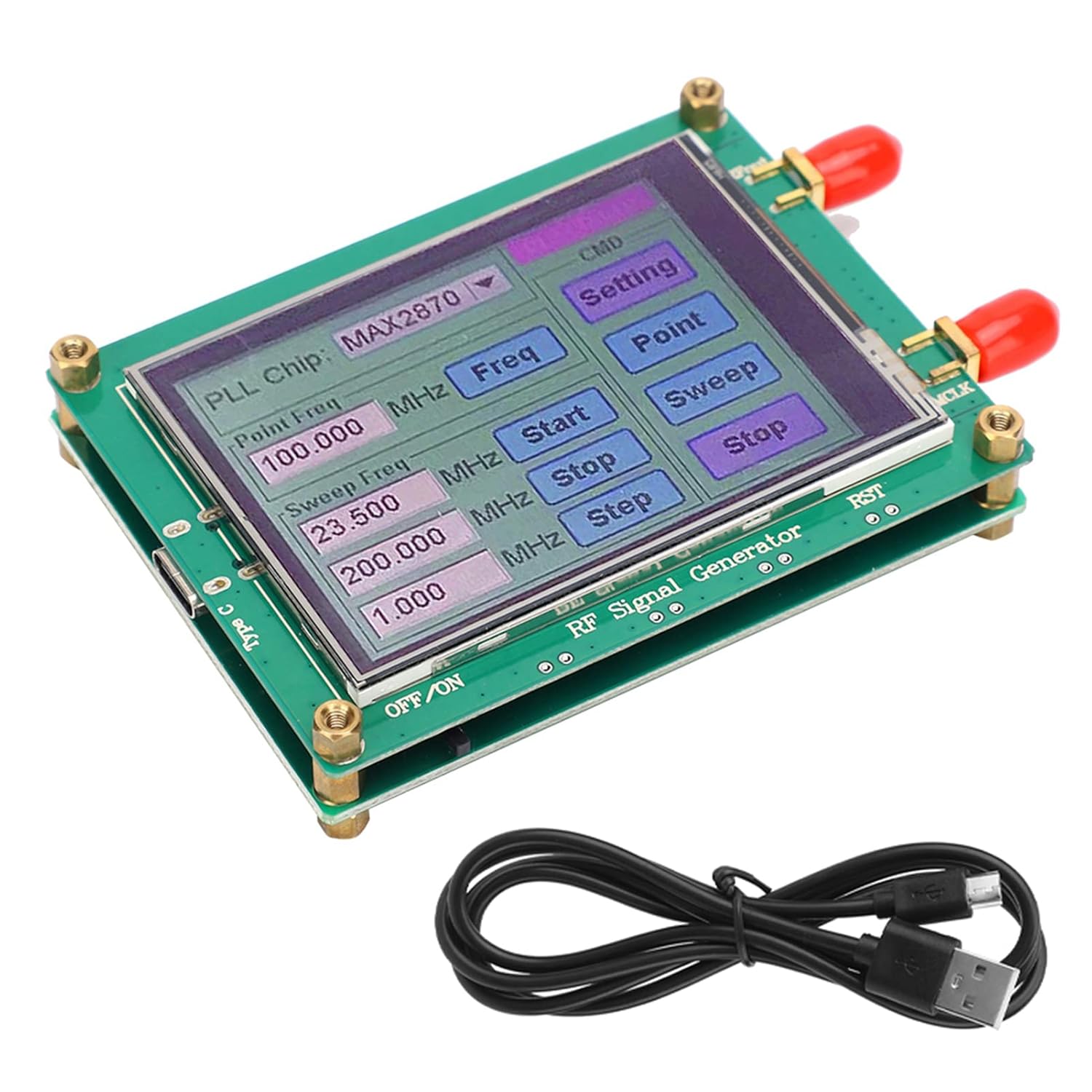

MAX2870 23.5-6000M RF Signal Source Generator Module High Stability Low Noise Frequency

Specification: Item type: RF signal source Product material: ABS Application: 1. Wireless Infrastructure 2. Test and Measurement 3. Satellite Communications 4. Wireless LAN/CATV 5. Military & Aviation/Aerospace 6. PMAR/LMAR/Public Safety Radio 7. Watch Generator Overview: MAX2870 is an ultra-broadband phase hooking ring (PLL) a built-in voltage controlled oscillator (VCO) and can work in integer and fractional N mode. MAX2870 is controlled by a 3-wire serial port and is compatible with 1.8V control logic. The device is packaged in a 5mm x 5mm lead-free TQFN 32-pin container, RoHS compliant and operates in an extended temperature range from -40C to +85C. Package list: 1 x RF signal source, 1 x data line

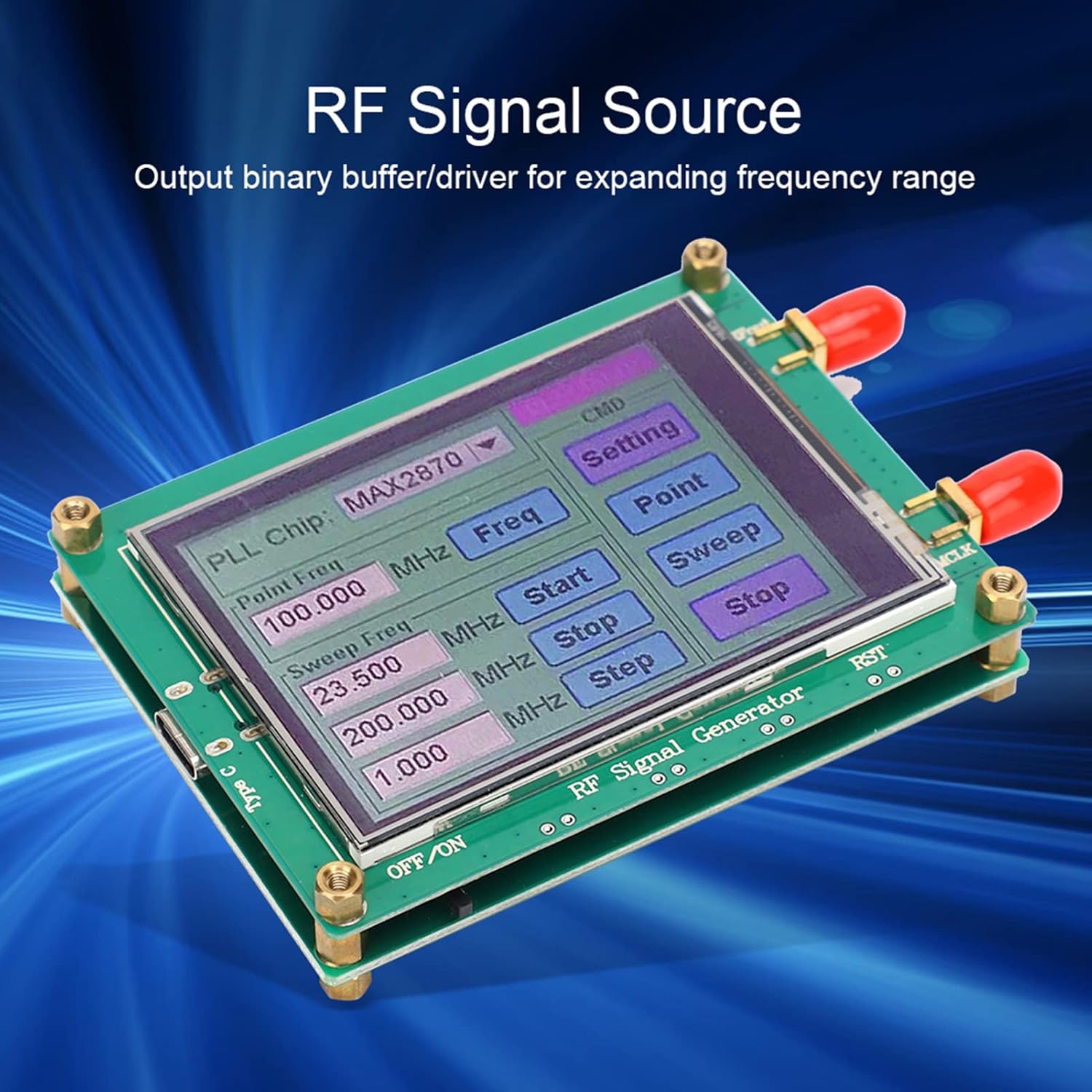

• The chip features of this RF signal source are 23.5MHz to 6000MHz base frequency VCOs, output binary buffer or driver, used to extend the frequency range, reference clock frequency up to 200MHz, compatible with 1.8V control logic.

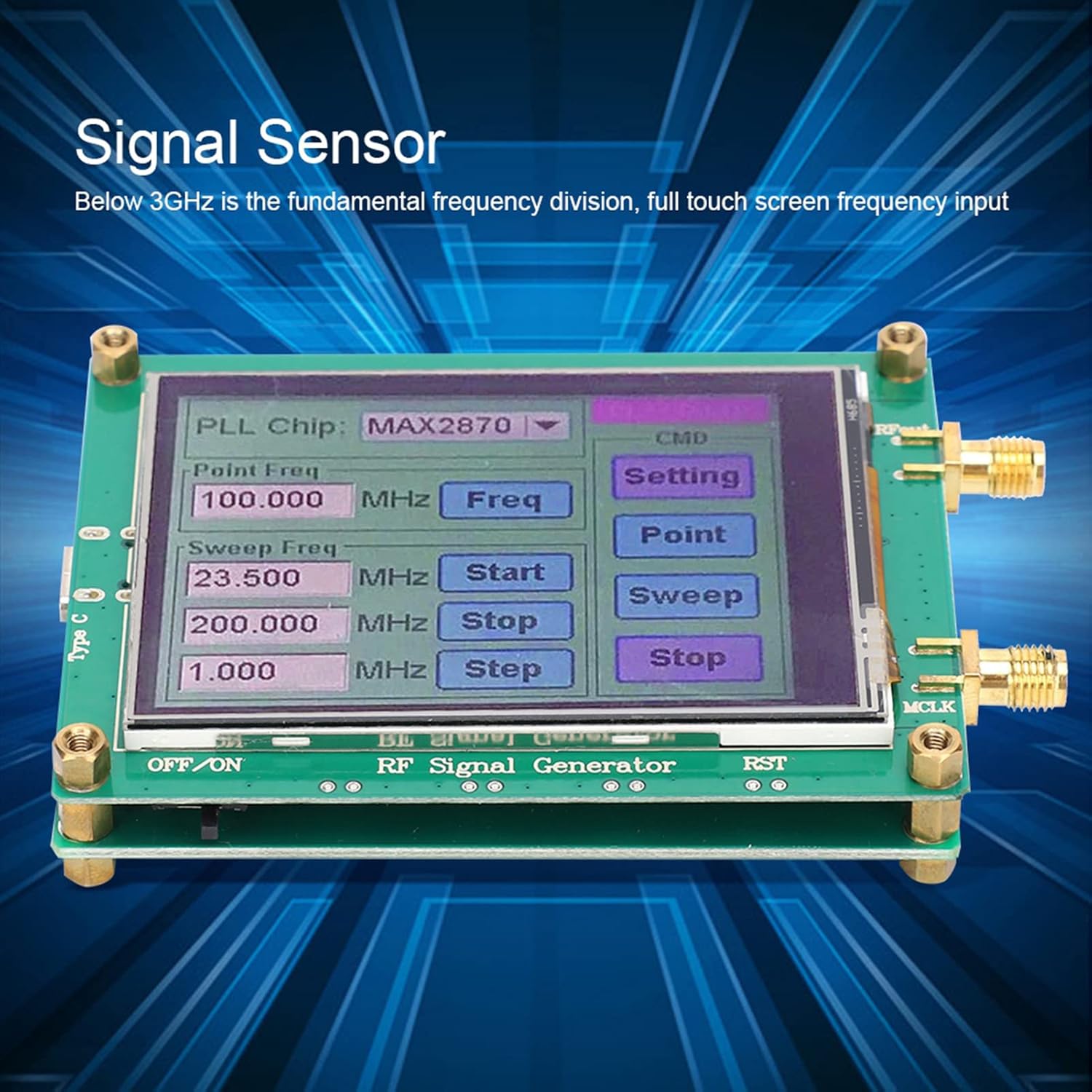

• The feature of the RF signal source module is that the high-precision default TCXO 25MHz 0.5ppm, and the core frequency output frequency range of the internal VCO is 3‑6GHz, below 3GHz is the fundamental frequency division.
• This module of this radio frequency signal source is a fully touch screen frequency input, the output frequency mode is point frequency, scan frequency is optional.
• The RF signal source adopts a 32-pin TQFN package, 5mm x 5mm, RoHS compliant and lead-, and works in an extended temperature range from -40℃ to 85℃.
• This radio frequency signal source provides PC host computer control program, output range: -4~5dBm, 4 levels of touch screen control.
