MAPLE ACE SER204-12, ER12 Insert Bearing 3/4" Bore, Cylindrical OD with Snap Ring and Set Screws (Qty 4)

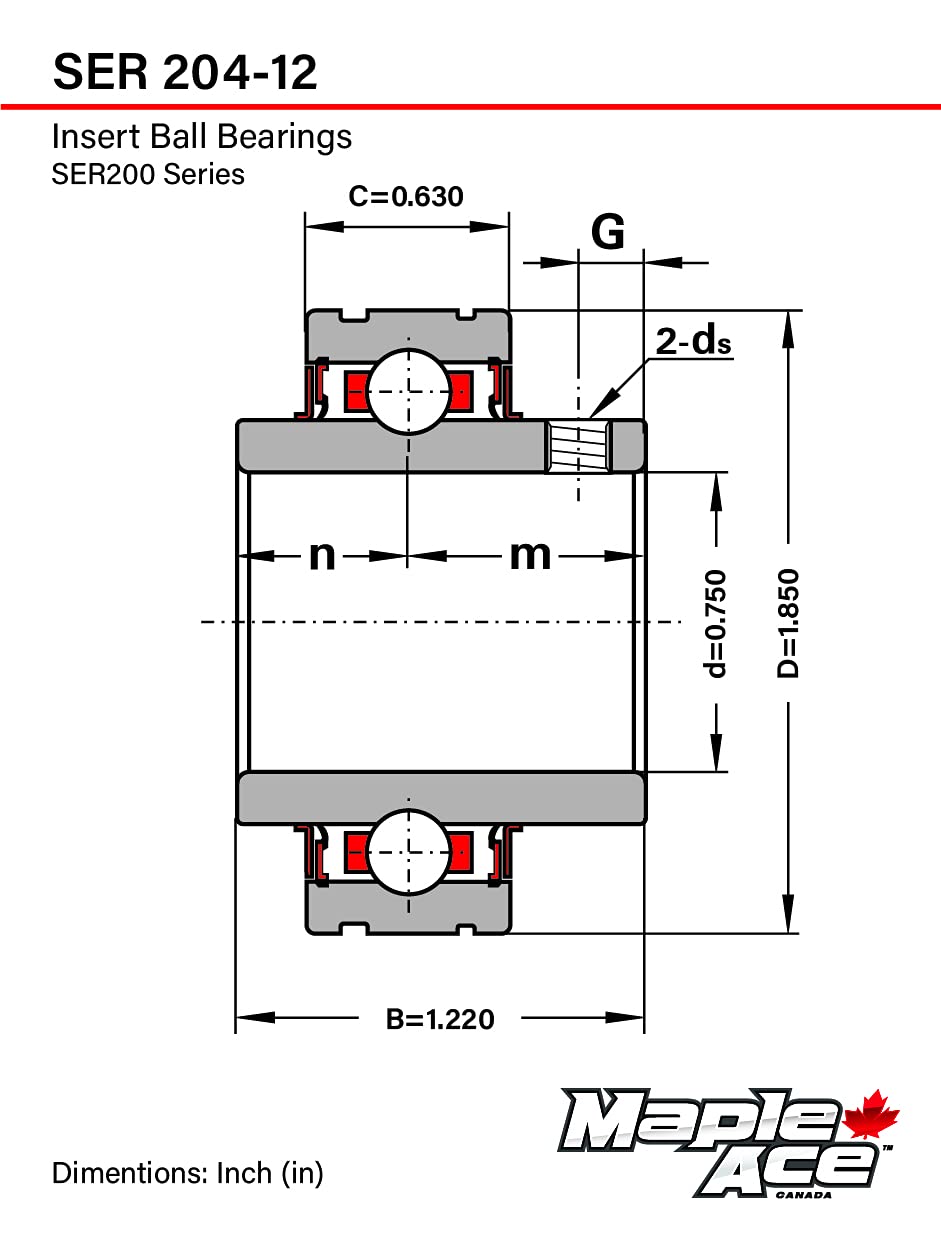

This INSERT BEARING has a Cylindrical Surface. Two Metal Shields to Protect the Bearing from Dust or any Possible Contamination. Bearing is Pre-Lubricated with High-Quality Grease, ideal for use in High and Low-temperature settings. Has a Groove and Oil Hole to Relubricate. Has a Snap Ring on the Outer Ring. Has a Set Screw Lock on its surface for securing the shaft. - Specification: Item SER204-12, Series SER200, Outer ring type Cylindrical, Bore Diameter Metric 19.05 mm, Bore Diameter Inch 0.750 in, Outside Diameter Matric 47.00 mm, Outside Diameter Inch 1.8503 in, Width Inner Ring Matric 31.00 mm, Width Inner Ring Inch 1.220 in, Width Outer Ring Matric 16.00 mm, Width Outer Ring Inch 0.630 in, Dynamic Load Rating Cr 12800 N, Static Load Rating Cor 6550 N, Locating feature Snap ring (fitted), Clearance Normal, Locating feature, bearing outer ring Snap ring (fitted) in, Closures Shield on both sides, Sealing type Contact standard, Lubrication Type Grease Shell RL2, Lubrication Temperature -20°C to +160°C, Relubrication feature With, Rolling Element Indicator Ball, Material Gcr15, Locking Type Set screws, Weight 0.180 KG.

• Exclusively Produced by High Standard Factories
• Ideal for Replacement and OEM Applications
• Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life
• DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
• 100% SATISFACTION GUARANTEED
