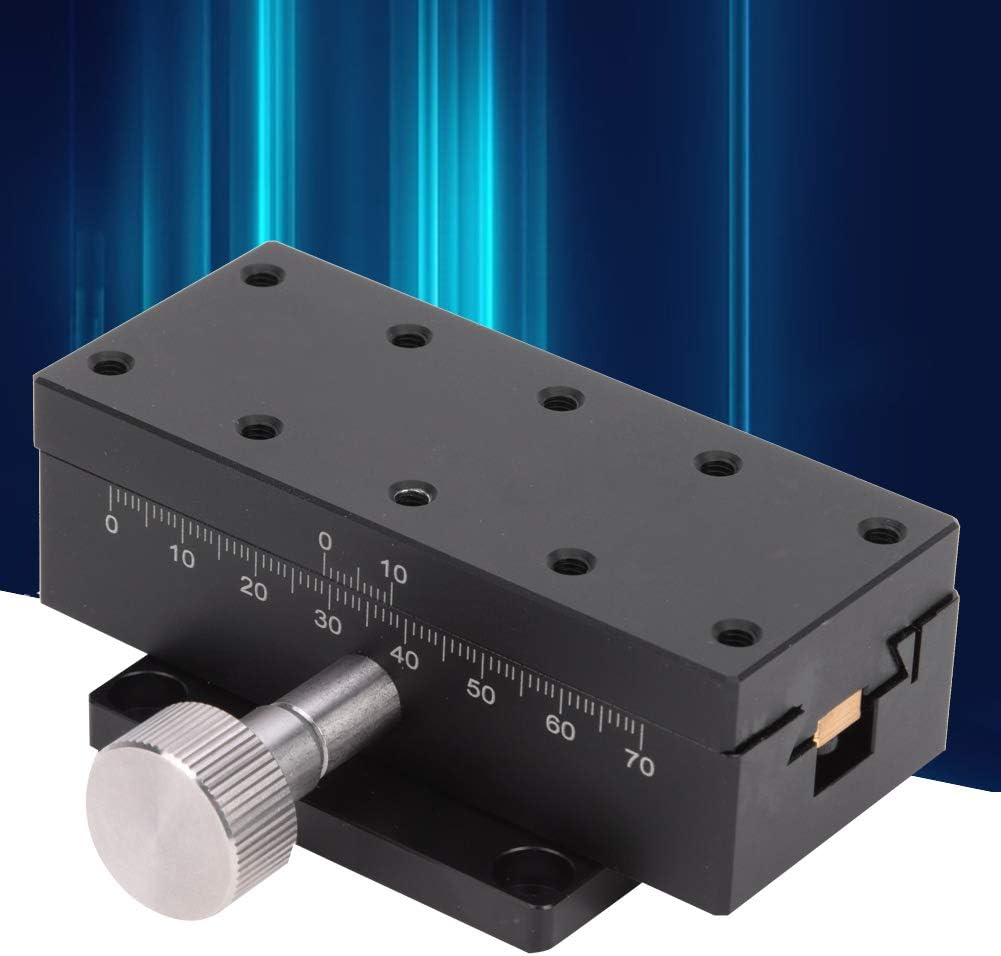

Manual X Trimming Platform with Dovetail Guide Adjustable Sliding Stage 40x90mm for Microscopes and Optical Instruments

Engineered for precision-critical tasks, this manual X-axis trimming platform delivers reliable linear motion in laboratory and industrial settings. Its dovetail-guided mechanism ensures minimal play and consistent alignment over repeated adjustments.FAQ:Q: What is the load capacity of this platform?A: It supports up to 98N (10 kgf) of vertical load.Q: How many mounting holes are on the tabletop?A: There are 10 threaded holes, each with a 4mm diameter and 6mm depth.Q: Is this platform suitable for multi-axis setups?A: This model provides single-axis (X-direction) movement; multiple units can be stacked for XY or XYZ configurations if required. Item Type: Manual Trimming PlatformModel: SPWX40-90Table Size: Approx. 40 x 90mm / 1.6 x 3.5inOverall Height: Approx. 34mm / 1.3inMoving Direction: X, 1 directionBody Material: Aluminum alloy (black anodized)Movement method: Manually turn the knob to advance the gear driveSliding Track: Gear guideGuide Rail Type: Dovetail grooveNumber of Countertop Threaded Holes: 10Threaded Hole Diameter: Approx. 4mm / 0.16inThreaded Hole Depth: Approx. 6mm / 0.24inLoad Resistance: 98N（10Kgf）Move Stroke: ±30mmMinimum Scale: 0.01mmParallelism: 60μmParallelism of Movement: 0.1mm/60mmStructure: DetachableScope of Application: Optical instruments, measuring devices, semiconductor manufacturing equipment, testing machines, microscopes, photographic equipment, conveyors, processing machines, printing machines and otherPackage List：1 x Manual Trimming Platform

• ALUMINUM ALLOY CONSTRUCTION – Lightweight yet robust black-anodized aluminum body offers abrasion resistance, scratch resistance, and long-term durability in demanding technical environments.
• HIGH-PRECISION DOVETAIL GUIDE SYSTEM – Smooth, stable movement via gear-driven knob with ±30mm stroke, 0.01mm minimum scale, and parallelism of 0.1mm/60mm for repeatable positioning accuracy.
• R-CORNER PROTECTION – Rounded corners enhance user safety during handling and installation while maintaining structural integrity of the platform surface.
• MODULAR DETACHABLE DESIGN – Easy to assemble and integrate into existing setups; compatible with standard mounting configurations for flexible system integration.
• VERSATILE INDUSTRIAL APPLICATIONS – Ideal for use with microscopes, optical instruments, semiconductor manufacturing tools, testing machines, photographic rigs, conveyors, and precision printing equipment.
