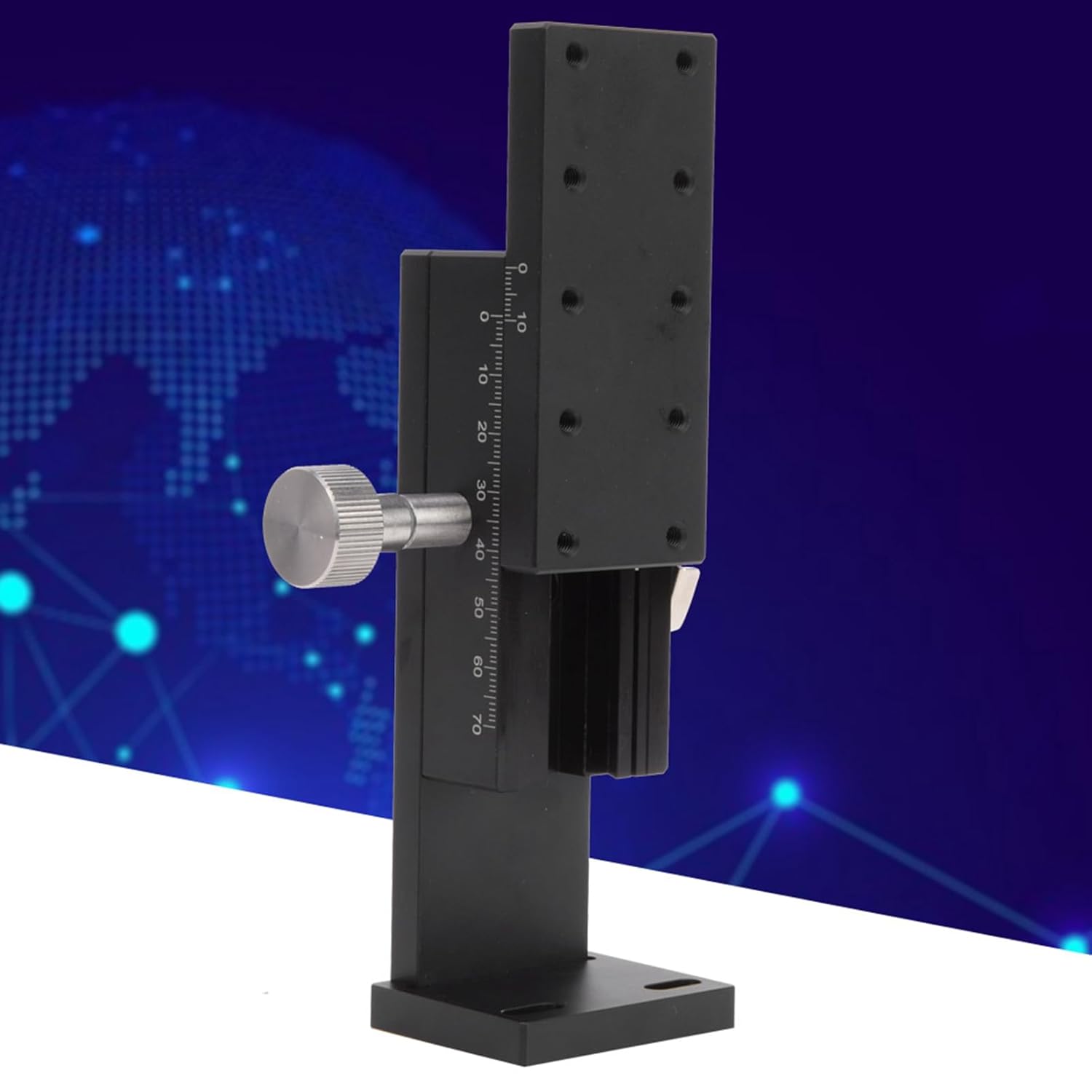

Manual Trimming Platform, Adjustable Gear Guide Sliding Table, Dovetail Stage with Aluminum Alloy Body for Microscopes and Optical Instruments

Product description Item Type: Manual Trimming PlatformModel: SPWZ40-90Table Size: Approx. 40 x 90mm / 1.6 x 3.5iOverall Height: Approx. 133mm / 5.2inMoving Direction: Z, 1 directionBody Material: Aluminum alloy (black anodized)Drive Method: Manually turn the knob to advance the gear drive (gear + rack)Sliding Track: Gear guideGuide Rail Type: Dovetail grooveNumber Of Countertop Threaded Holes: 10Threaded Hole Diameter: Approx. 4mm / 0.16inThreaded Hole Depth: Approx. 6mm / 0.24inLoad Resistance: 98N（10Kgf）Move Stroke: ±30mmMinimum Scale: 0.01mmParallelism: 0.06mmParallelism of Movement: 0.1mm/60mmScope of Application: Optical instruments, measuring devices, semiconductor manufacturing equipment, testing machines, microscopes, photographic equipment, handling machines, processing machines, printing machines and otherPackage List：1 x Manual Trimming PlatformNote:Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering. Manufacturer Contact Information 1

• High Precision Movement: This manual trimming platform features a dovetail groove guide and gear-driven handle for smooth, stable, and highly accurate linear motion, ideal for fine adjustments in sensitive applications like optical alignment or semiconductor testing.
• Durable Aluminum Construction: The main body of this manual displacement platform is made from lightweight yet sturdy aluminum alloy, offering excellent resistance to scratches, drops, , and wear for long-term reliability in demanding environments.
• Versatile Application Use: Designed for precision tasks, this manual trimming table works seamlessly with microscopes, measuring devices, photographic equipment, printing machines, handling systems, and other lab or industrial machinery requiring exact positioning.
• Rounded Corner Safety Design: With R corner protection on the edges, this gear sliding stage minimizes sharp contact points, enhancing user safety during operation while maintaining a clean, professional appearance in workspace settings.
• Compact and Functional Build: Measuring 40x90mm, this adjustable gear guide sliding table delivers a high load capacity within a small footprint, making it perfect for integration into tight setups without sacrificing performance or stability.
