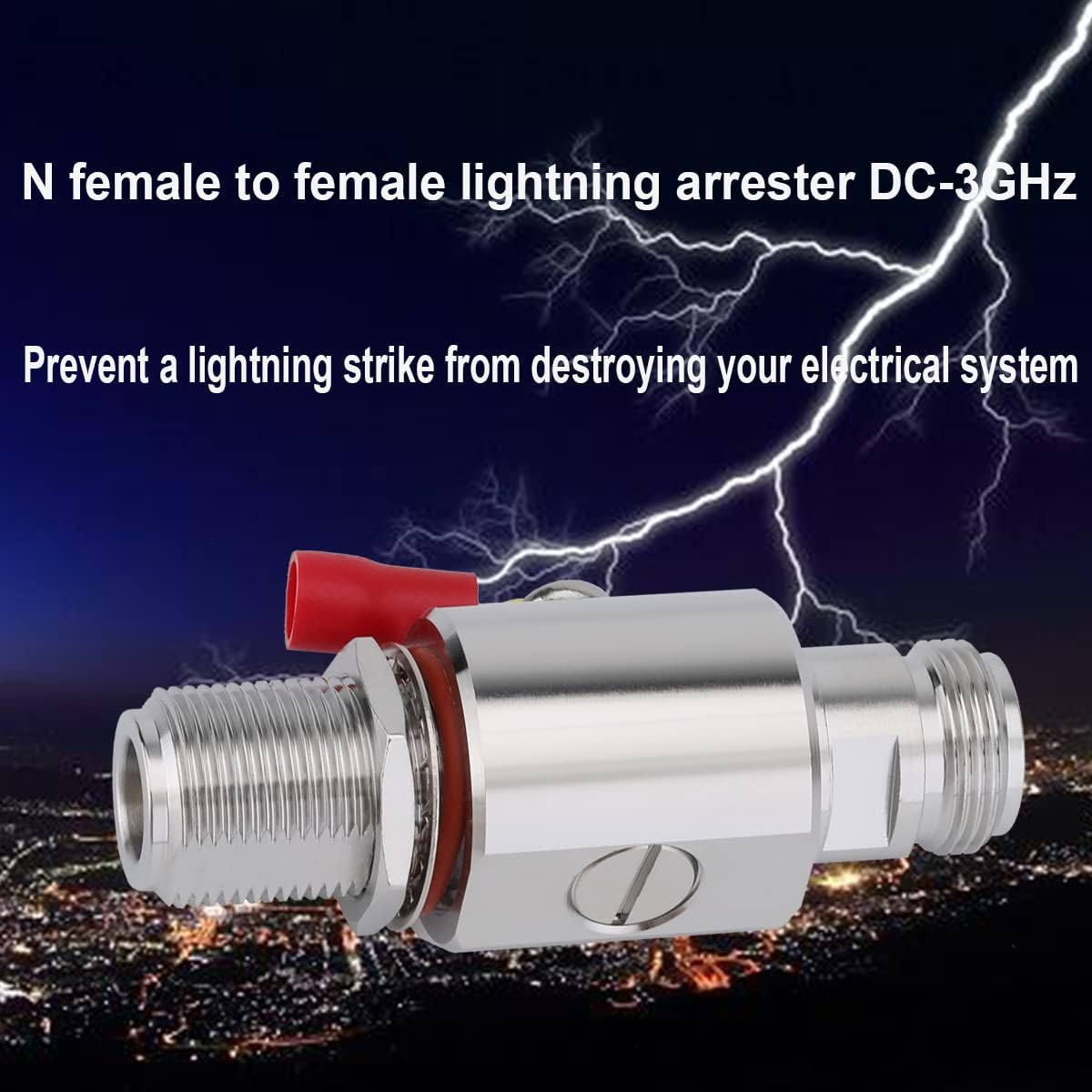

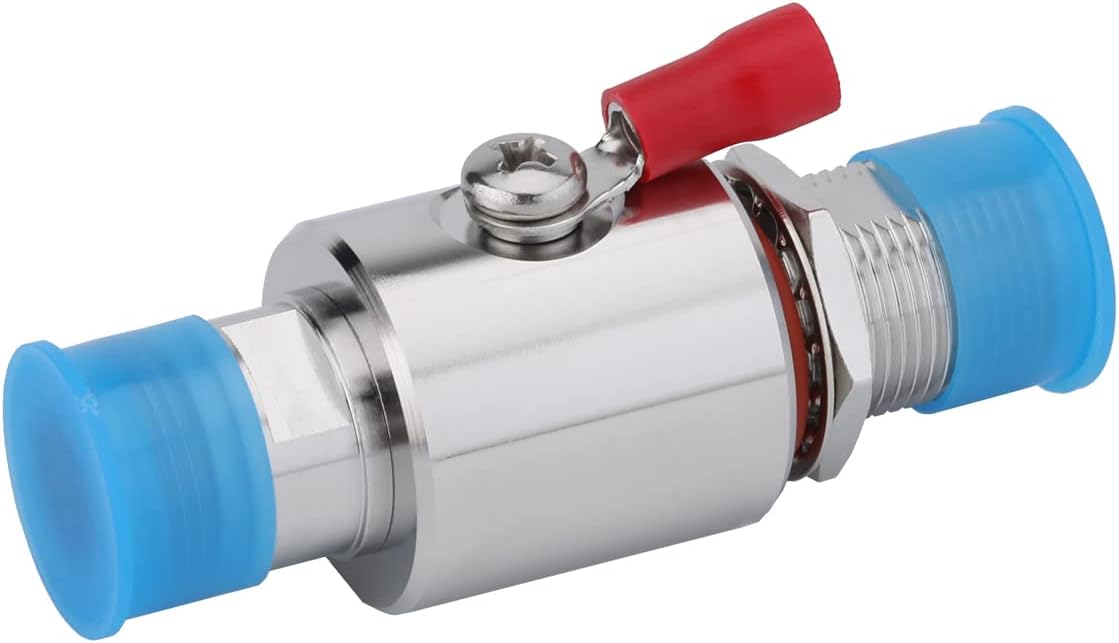

Lightning arrestor N Female to N Female Bulkhead Lightning Surge Protector IP67 with 90 V Gas Tube 50 Ohm DC-3GHz (3G N Female to Female Pack 2)

Size:Lightning arrestor N female to female Bulkhead 1.Materials & Plated: Connectors: N-Female to N-Female Bulkhead Body brass nickel plated, Contact brass gold plated ,Teflon(PTFE) Insulator for a reliable signal every time ，Salt spray test for 48 hours O-Ring: Rubber RoHS compliant 2.Electricail Characteristics： Impedance:50 ohm , RF Power: 300W Dielectric Withstanding Voltage:2500V (RMS) Contact Resistance:Center conductor ≤ 1mΩ, Outer conductor ≤ 1.5mΩ Insulation Resistance :≥ 5000MΩ Durability :≥ 500 cycles Temperature range: -40°C to +85 °C Frequency Range up to 3 GHz Attenuation is less than 0.2 dB VSWR ≤1.2 3.Package include: 2 piece N surge protector 4. Protects signal boosters from lightning strikes： Prevent a lightning strike from destroying your electrical system.

• 1.Lightning arrestor, Protects 3G, LTE Cellular Boosters and 2.4 GHz Access Points and GPS Receivers from lightning strikes, Requires additional ground cable
• 2.N female to n female Bulkhead lightning with a rubber O-ring seal for mounting through an enclosure wall, Body brass nickel plated, Contact brass gold plated ,Teflon(PTFE) Insulator for a reliable signal every time,Salt spray test for 48 hours
• 3.50 ohm lightning surge protector,Frequency Range up to 3 GHz / Attenuation is less than 0.2 dB / VSWR ≤1.2 ( DC-3Ghz),waterproof level is IP67
• 4.N arrestor,It has a replaceable gas discharge element with High Surge Power Capability ( 90V Gas tube)
• 5.N Surge protector should be installed as close a possible to the equipment to be protected, often at the point where the cable enters the building. They can also be installed near the antenna for additional protection
