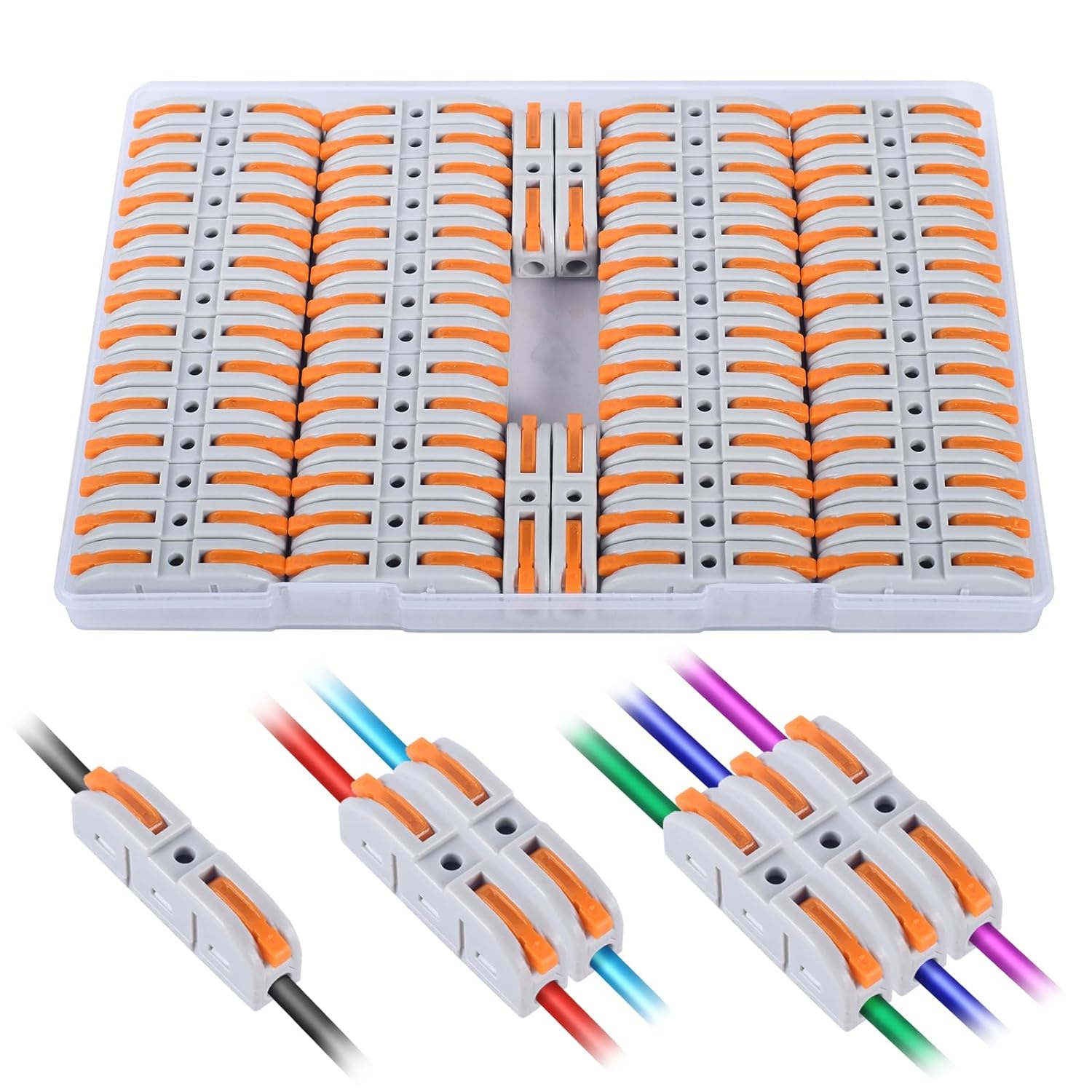

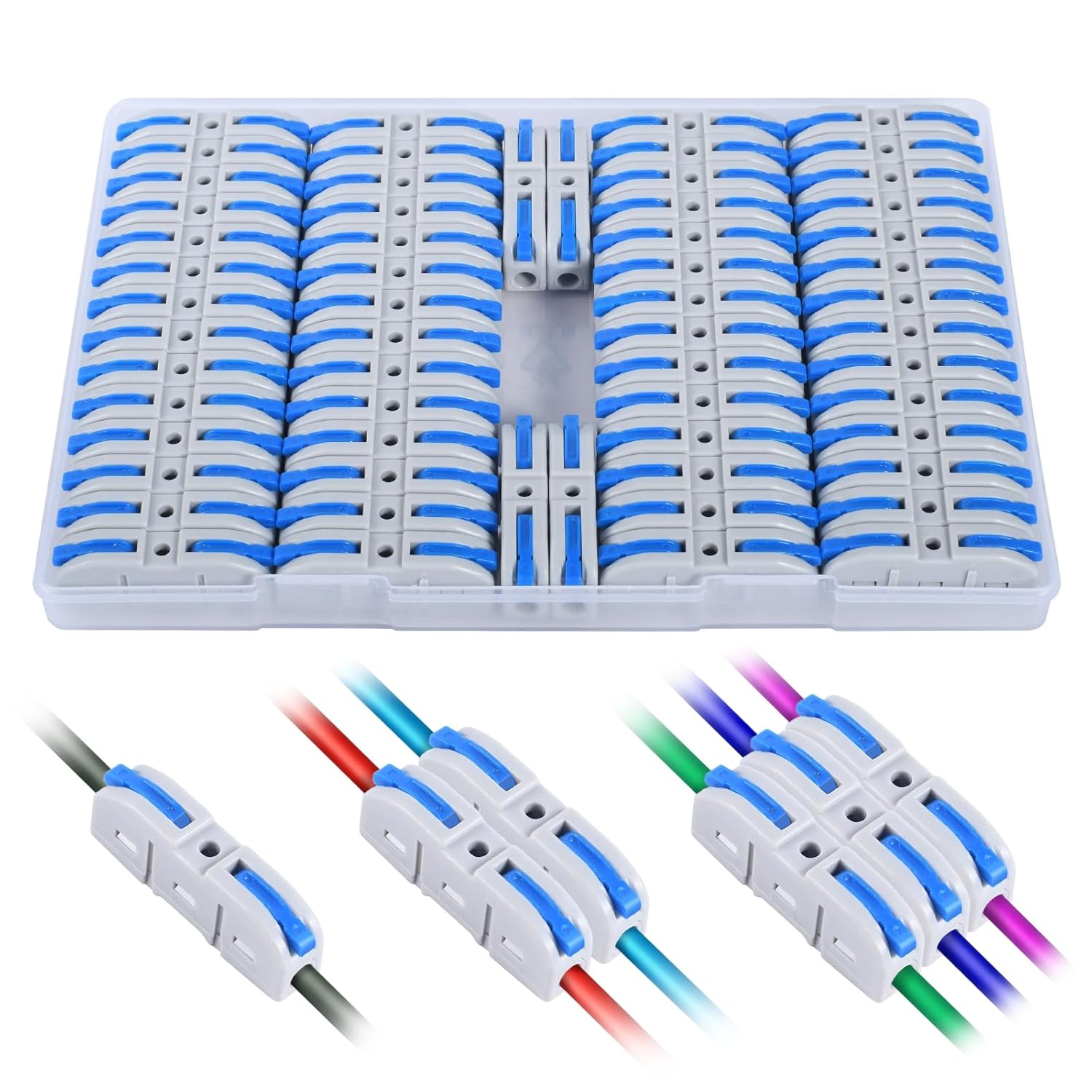

Lever Wire Connectors, HTCELLE 200-Piece Inline Wire Connectors kit for Quick Connect, Push in Compact Splicing Electrical Butt Terminals for Circuit Inline 28-12 AWG 1 in 1out.
Product details
| Management number | 218145388 | Release Date | 2026/05/03 | List Price | $12.00 | Model Number | 218145388 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【Safe and Reliable】HTCELLE lever wire connectors housing is made of the best high quality PC insulating material. With the advantages of long life, corrosion resistance, high-temperature resistance and aging resistance, HTCELLE wire connector can effectively prevent electrical leakage. So the lever wire connectors are safer than traditional wire nuts.
- 【Practical】 The lever Wire Connector is a reusable innovative connector. If you need to replace other wires, just pull up the small lever, pull out what you need and replace them. The wire connector adopts special scientific design to save space. When you combine wires, you don't need to worry about the distortion between wires. The internal use of stainless steel to lock the wires firmly and not loose, because they can be reused, and the wires can be removed or reconnected several times.
- 【Compatibility】 Any combination of solid, stranded and flexible copper wires. Applicable to wire size 0.1~4mm ²/ AWG28-12。 The connector is widely used for decorative wiring. For example, it is an ideal product for connecting ceiling lights, spotlights, etc.
- 【Easy to operate 】You can connect wires by hand without any tools. Push the orange handle to 90 ° and insert the wire (strip the wire housing to 0.35-0.47 inch, make sure the wire is inserted at the end. Do not open the wire housing for too long), and then place the back of the wire clamp. When you make electrical connection, you only need a little force to push the lever up.
- 【Convenient inspection】 You can check whether the wire length is appropriate and whether the wire insertion is complete through the transparent cover. It is easy to confirm whether the wire is inserted into the jack. In addition, there is a test hole on the back of the connector. The test hole can be used to check whether the wire is energized. Various standard test probes can be used for lever nuts.
| Color | Multicolored |
|---|---|
| Model | DZ200P |
| Terminal | Butt Terminal |
| Brand Name | HTCELLE |
| Unit Count | 1.0 Ounce |
| Part Number | DZ100 |
| Manufacturer | HTCELLE |
| Material Type | Polycarbonate |
| Connector Type | Butt Splice |
| Maximum Voltage | 600 Volts |
| Number of Items | 1 |
| Contact Material | Copper |
| Specification Met | UL |
| Temperature Rating | 0-100 C |
| Included Components | Copper |
| Insulation Material Type | Polycarbonate |
| Item Dimensions L x W x H | 1.57"L x 0.35"W x 0.56"H |
