LattePanda 3 Delta 8GB/64GB LPDDR4 Mainboard Windows 10 Mini PC Single Board Computer for 4K HDR Video Suppprt Windows 11 and Linux (inactive Version)
Product details
| Management number | 212250303 | Release Date | 2026/04/06 | List Price | $148.00 | Model Number | 212250303 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
-Overview-LattePanda 3 Delta Mainboard uses the 11th generation mobile processor quad-core processor N5105 with a frequency of up to 2.9GHz. Compared to the previous generation, the CPU is 2x faster and the GPU is 3x faster. With such powerful performance, you can use it to watch 4K HDR video smoothly, and even play big games.-Specification-Processor: Celeron N5105CPU: 2.0~2.9GHz, four cores, four threadsGPU: UHD Graphics (Frequency: 450 - 800MHz)Memory: LPDDR4 8GB 2933MHzStorage: 64GB eMMC V5.1Expansion Slot: 1x M.2 M Key, PCIe 3.0 2x, support NVMe SSD1x M.2 B Key, USB 2.0, USB 3.0, SATA, SIM, support SATA SSD, 4G and 5G modulesConnectivity: 1x Wi-Fi 6 @ 2.4GHz & 5GHz(160MHz); 1 x Bluetooth 5.21x Intel Gigabit EthernetUSB Ports: 3.2 Gen1 Type A; 1x USB 3.2 Gen2 Type A; 1x USB Type C, support PD, DP, usb2.0; 1x USB 2.0 pinsTPM: Built-in TPM (2.0)Coprocessor: ATmega32U4Audio: Microphone + Headphone Combo ConnectorGPIO and other functions:12x analog input pins,1x 2-Pin adapter (power switch) and etcDisplay:1x HDMI 2.0b: Up to 4096x2160 @ 60Hz HDR1x DP 1.4 via USB Type C: Up to 4096x2160 @ 60Hz HDR1x eDP 30Pin: expandable touch screen, up to 1920*1080Dimensions: 125 × 78 × 16mmOperating temperature: 0°~ 75°C-OS Support-Windows 10 and Windows 11 and Linux-Shipping List-LattePanda 3 Delta x1Active cooling fan (assembled) x145w PD power adapter (with European and American standard power cord) x1Dual frequency antenna x2RTC battery x 1User Manual x1
- [CPU Performance Enhancement] LattePanda 3 Delta Mainboard with 11th generation mobile quad-core processor N5105, the frequency can reach up to 2.9GHz, the performance is significantly improved, the CPU speed is increased by 2 times, and the GPU speed is increased by 3 times
- [High Bandwidth RAM] LattePanda 3 Delta Mini PC Single Board Computer is upgrade to 8GB RAM and 64GB eMMC, High Bandwidth RAM, run multiple applications smoothly and ensure efficient performance and reliable multitasking
- [Ultra-fast Connection] With lightning-fast Wi-Fi 6 and Gigabit Ethernet, the transfer speed is increased by 2.7 times, and you can quickly play videos or download large files
- [Higher Data Transfer Rate] 1x USB3.2 gen2, 2x USB3.2 gen1; USB 3.2 gen2 interface has ultra-high bandwidth, providing up to 10Gb/s speed
- [Supports Dual 4K HDR and 3 Video Outputs] Includes HDMI, USB-C DisplayPort, and eDP for superior flexibility

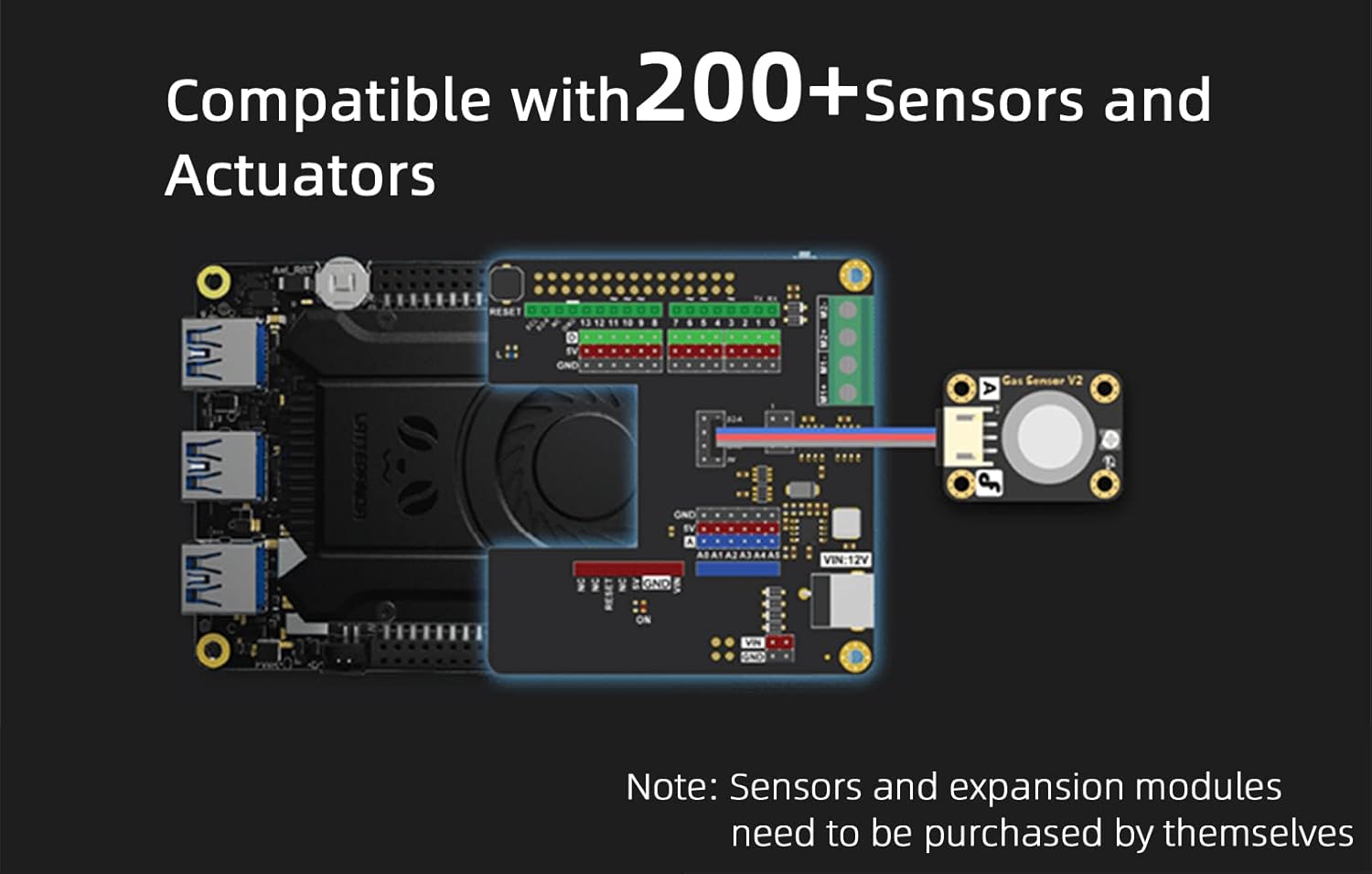

- [Rich Processor] Rich IOs and integrated coprocessor ATmega32U4, compatible with 200+ sensors and actuators

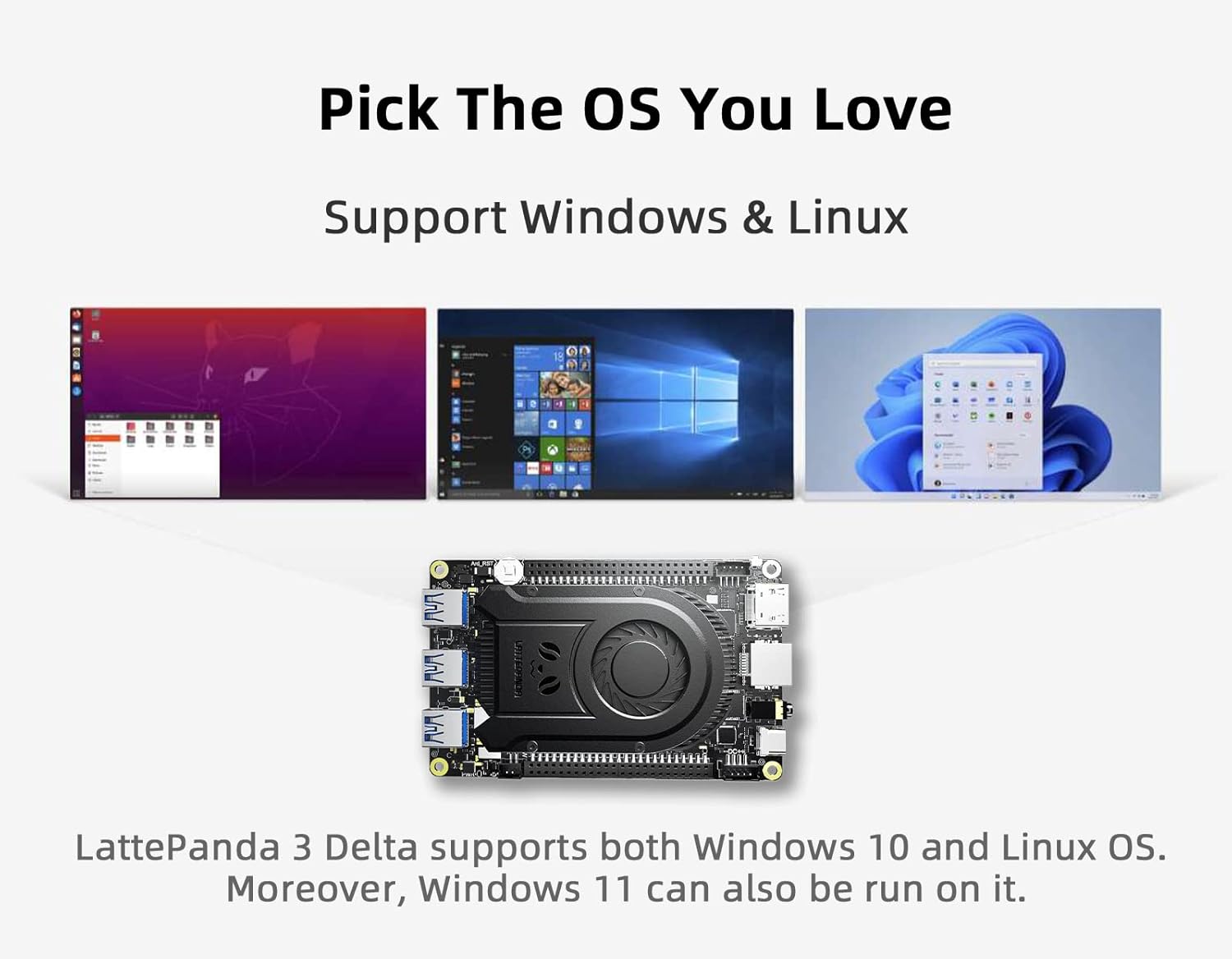

- [Pre-installed Windows 10 System] LattePanda 3 Delta is pre-installed with Windows 10 operating system, supports Windows (win10 and win11) and Linux operating systems
| Brand | WayPonDEV |
|---|---|
| Color | Black |
| RAM Type | DDR4 SDRAM |
| Model Name | LattePanda 3 Delta Window 10 Mainboard |
| Model Year | 2022 |
| Resolution | 3840 x 2160 |
| Aspect Ratio | 16:9 |
| Display Type | LCD |
| Manufacturer | WayPonDEV |
| Memory Speed | 2933 MHz |
| Model Number | Windows 10 Mini PC Single Board Computer |
| Video Output | HDMI, DisplayPort, eDP |
| BuiltIn Media | LattePanda 3 Delta x1 Active cooling fan (assembled) x1 45w PD power adapter (with European and American standard power cord) x1 Dual frequency antenna x2 RTC battery x 1 User Manual x1 |
| Item Type Name | Mainboard;Single Board Computer |
| Processor Brand | Intel |
| Processor Count | 4 |
| Processor Speed | 3 GHz |
| Total Usb Ports | 3 |
| CPU Model Number | Quad core processor N5105 |
| Operating System | Windows 10 |
| Processor Series | Celeron |
| Graphics Ram Type | Shared |
| Native Resolution | 3840 x 2160 |
| Compatible Devices | Personal Computer |
| Hardware Interface | USB |
| Memory Clock Speed | 800 MHz |
| Additional Features | Microphone |
| Hard Disk Interface | PCIE x 4 |
| Wireless Technology | Wi-Fi |
| Graphics Coprocessor | Intel UHD Graphics |
| Graphics Description | Integrated |
| HumanInterface Input | Microphone, Touchscreen |
| RAM Memory Installed | 8 GB |
| Wireless Compability | 2.4 GHz Radio Frequency, 5 GHz Radio Frequency, 802.11a/b/g/n/ac |
| Hard Disk Description | Embedded MultiMediaCard, SSD |
| RAM Memory Technology | LPDDR4 |
| Memory Slots Available | 1 |
| Video Output Interface | HDMI, DisplayPort, eDP |
| Connectivity Technology | Ethernet, HDMI, USB, Wi-Fi |
| Graphics Card Interface | Integrated |
| Memory Storage Capacity | 64 GB |
| Ram Memory Maximum Size | 8 GB |
| Specific Uses For Product | Multimedia |
| Display Resolution Maximum | 3840 x 2160 pixels |
| Total Number of HDMI Ports | 1 |
| Cache Memory Installed Size | 64 GB |
| Number of Component Outputs | 3 |
| Wireless Network Technology | Wi-Fi |
| Personal Computer Design Type | Mini PC |
