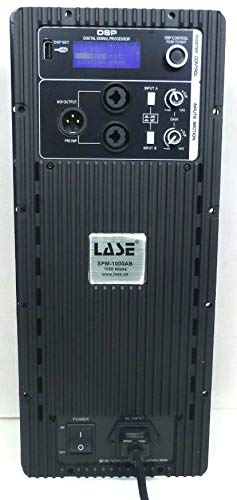

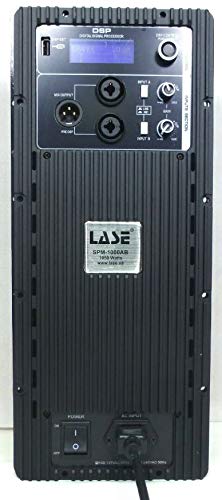

LASE SPM-1000AB Bi-Amp (2 Way) Power Amplifier Module 1000W Change Your Passive Speaker into Active
Product details
| Management number | 215164291 | Release Date | 2026/04/12 | List Price | $107.60 | Model Number | 215164291 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
NEW !! LASE SPM-1000AB Bi-Amp Power Amplifier 1000Watts Module. Convert your Passive Speaker into an Active Speaker. The LASE SPM-1000AB Bi-amp Power Module is a high performance switching power amplifier.Completely enclosed for efficient and easy installation,no need for a chamber or a compact(small enclosed space). Features : Completely Enclosed for easy installation. Unprecedented power density,2 channel power amplifier. Reliable sound quality. Class D wiring amplifier. Efficient cooling system,100% pure copper heat sink. XLR input and link connectors. Low-Pass Crossover 80Hz -250Hz 24db/oct. Comprehensive protection and warning. Dimensions : (L×W×D) : 15" x 6.25" x 4.25"(381mm x 158.75mm x 107.95mm) Outer Lip.(see pics). 14" x 5.5" x 3.75" (355.6mm x 139.7mm x 95.25mm) Opening.(see Pics). Packing dimension : 16" x 9" x 6" (406.4mm x 228.6mm x 152.4mm) Net weight :5lbs (2.26Kgm) Gross weight :5.5lbs(2.49Kgm) Mounting Hole Size : 0.1815" x 0.288" (4.61mm x 7.31mm).
- Rated Power : Ch 1@ 8Ω 950W ±5% / Ch 2@ 4Ω 1000W ±5% (1KHz,THD+N<0.5%
- Crossover - Low Pass 2000Hz -6db 24db oct / Hi Pass - 2600Hz - 6db 24db oct
- S/N >95db / THD <1%A / Sensitivity: LF - Mic -40dBu±1dbu Line : -4dBu± 1dBu @ 100Hz. HF - line -10dBu ±1dBu @ 10 Hz.
- Working Voltage : AC 100 -127V or 220 - 240V 50/60 Hz.
| UPC | 653753250743 |
|---|---|
| Model | LASE SPM-1000AB |
| Brand Name | LASE |
| Manufacturer | LASE |
| Output Power | 1000 Watts |
| Material Type | Metal, Plastic |
| Mounting Type | Surface Mount |
| Supply Current | 5.21 Amps |
| Item Dimensions | 15 x 7 x 5 inches |
| Specification Met | FCC, RoHS |
| Number of Channels | 2 |
| Maximum Supply Voltage | 240 Volts (DC) |
| Minimum Supply Voltage | 100 Volts (AC) |
