Kill Switch 12V/24V 240A, Remote Battery Disconnect Switch, Car Battery Kill Switch, Anti Theft, Automatic Cut/Shut Off Switch, for Truck Boat Auto Car
Product details
| Management number | 218195629 | Release Date | 2026/05/03 | List Price | $9.60 | Model Number | 218195629 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
This disconnect switch can avoid car battery to run out due to long-term parking, line aging and forgetting to turn off the light. It can maximize the storage of car battery power, effectively protecting and extending lifespan. Technical specifications: Rated current: 240A; Rated voltage: DC 12V/24V; Standby power consumption: 3mA; Instantaneous current: 500A; Power-off threshold: 11.8V±0.2V/23V.2±0.2V, Powerloss delay disconnects for 120 seconds;Out-of-control voltage of remote control in driving.13.3V±0.2V/26V±0.2VOperating temperature 30℃-90℃Standby powerconsumption 0.003aNote: the product works in the 6v-13.2 V/DC19-28V range of the remote control only the normal pairing and remote control switch magnetic keep relay, electrical appliances, when the supply voltage is below 11.8 V/23V delay,60 seconds alarm sound, remote control can not turn off magnetic hold relay (ignition will also be), manual button can turn off,120 seconds off, magnetic hold relay. When the voltage is higher than 13.3 V/25v,the remote control function of the product fails to prevent accidental triggering during driving, resulting in driving power failure.
- This disconnect switch can avoid car battery to run out due to long-term parking, line aging and forgetting to turn off the light. It can maximize the storage of car battery power, effectively protecting and extending lifespan
- Rated current: 240A; Rated voltage: DC 12V/24V; Standby power consumption: 3mA; Instantaneous current: 500A; Power-off threshold: 11.8V±0.2V/23V±0.2V
- When Battery Voltage drops to 11.6V ± 0.2V or lower (for 12V system); 23V ± 0.2V or lower (for 24V system). The Remote control function will fail and the Device will sound the alarm after 60 seconds and Automatically cut off after 120 seconds
- When the voltage is higher than 13.3V ± 0.2V or higher (for 12V system); 26.2V ± 0.2V or higher (for 24V system), the remote control will be disabled to prevent accidental action to turn off the power while driving, and the power supply can only be controlled by the button on the switch

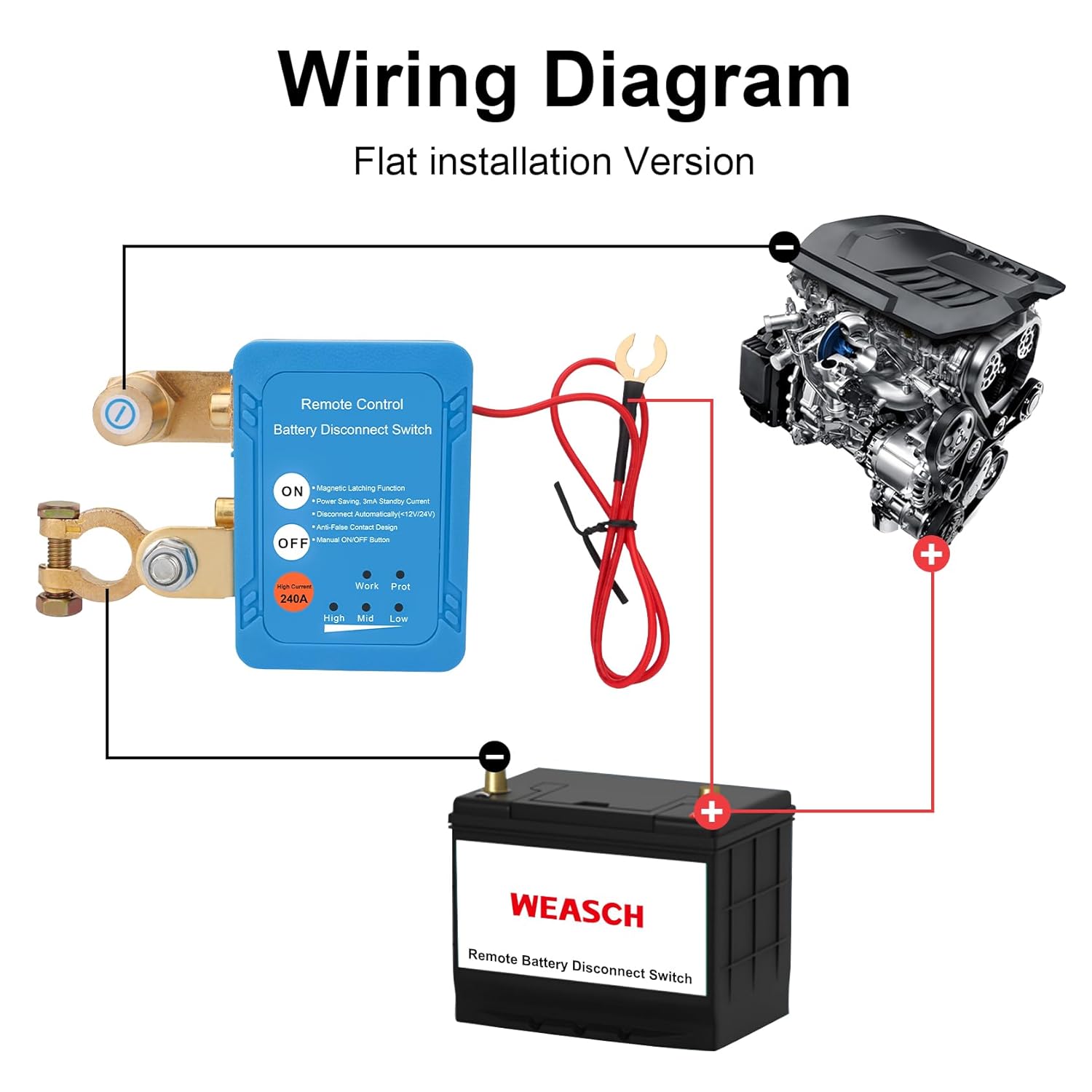

- Package Content: Cut off Switch x 1, Remote controller x 2. This kill switch for car adopts the negative link method, easy to install, more stable performance. Please follow the wiring diagram to install. NOTE: be sure to turn off the power before installation, ignition test after installation
| Model | 12V/24V 240A |
|---|---|
| Terminal | Screw |
| Brand Name | Weasch |
| Part Number | 12V/24V 240A |
| Switch Type | Kill Switch |
| Circuit Type | 1-way |
| Contact Type | Normally Open |
| Manufacturer | Weasch |
| Material Type | Copper, Plastic |
| Mounting Type | Surface Mount |
| Connector Type | Plug In |
| Current Rating | 240 Amps |
| Operation Mode | ON-OFF |
| Item Dimensions | 4.85 x 3.7 x 2 inches |
| Number of Items | 1 |
| Contact Material | Copper |
| Operating Voltage | 12 Volts (DC) |
| Specification Met | CE |
| Included Components | 12V/24V 240A |
| Number of Positions | 3 |
| Upper Temperature Rating | 90 Degrees Celsius |
| International Protection Rating | IP20 |
