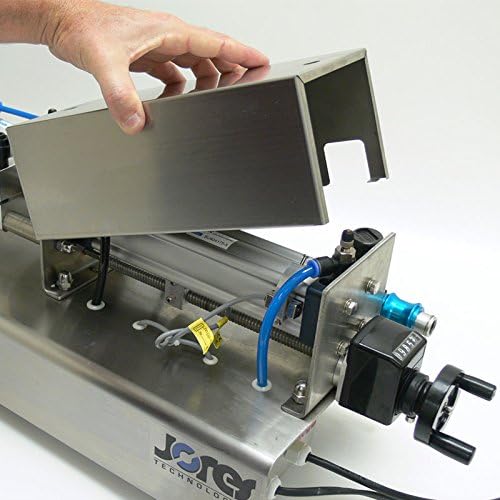

JORESTECH Low Viscosity Piston Filler (50 ml)

Features: Filling Range: 0.34-1.70 Oz. (10-50 ml) Approximate Speed: 20 - 25 pcs/min(depending on operator speed, product density, draw length, a fill speed, among others) Suitable to fill low to mid density liquids (0 - 3,000 cp) All Parts in Contact with Product are Food Grade (SS 316) Stainless Steel Construction. Fluoropolymer elastomer O-ring System. Adjustable Volumetric Piston System with Numeric Reference Display> Piston Feed Speed Adjustment. No-drip Option Included and Installed. Extremely Accurate (+/- 1%) Sanitary Stainless Steel Quick Disconnect Fittings. Quick Connect/Disconnect Pneumatic Fittings. Control Panel: Master Start/Stop. Cycle Reset Button. Semi Auto/Continuous Operation Selector Switch. Air Pressure Gauge. Air Intake Pressure Adjustment. Piston Volume Adjust with Numeric Display. Other Specifications:Required Compressor Capacity (not included with the machine)Minimum Tank Capacity: 25 gal (95 lts)Volume: 4 CFM/min (114 lts/min)Air Pressure: 90 PSIAir Requirements: 4 CFM/min (114 lts/min) @ 90 PSI (6.2 Bar) (Air compressor not included)Includes Electro-mechanic Industrial Duty Pedal. Includes Parts Kit. Voltage: 110v / 50-60 Hz / 1Ph Flammable or explosive products should not be dispensed with this unit. Shipping Specifications: Boxed Machine Size: 29" (737mm) x 16" (406.4) x 17" (432mm) Boxed Machine Weight: 90 lbs (41 kgs)

• Low Viscosity Piston Filler (50 ml)
• Suitable to fill low to mid density liquids (0 - 3,000 cp)
• Electro-pneumatic operation
• Stainless Steel Construction.
• Extremely Easy to Operate, Clean and Maintain.
