JMT 5/10PCS Eport-E20 Network Server Port FreeRTOS TTL Serial to Ethernet Embedded Module DHCP 3.3V DHCP TCP IP Telnet Converter MCU (5pcs)

Festures: Support TCP / IP / Telnet / Modbus TCP protocol Support serial port to 10 / 100M Ethernet data transmission, serial port rate up to 921600 bps Support 10 / 100M Ethernet adaptation Support webpage simple configuration Support data SSL / AES / DES security encryption configuration Single + 3.3V power supply Size: 50 x 23 x 11 mm (L x W x H) Paramters: Processor / Frequency: Cortex-M3/96MHz Flash/SDRAM: 2MB/128KB Operating System: FreeRTOS Ethernet Interface Port: 1RJ45 with LED Interface Standard: 10/100 Base-T Auto-negotiation Protection: 1.5KV Electromagnetic Isolation, Housing Isolation Protection Network Transformer: Integrated Network Protocol: IP, TCP, UDP, DHCP, DNS, HTTP Server/Client, ARP, BOOTP, AutoIP, ICMP, Web socket, Telnet, FTP.TFTP, uPNP, NTP, SNMP,Modbus TCP Security Protocol:TLS, AES 128Bit, DES3 IPV6: Not Suppor Serial Port Number of Ports: 1 + 1 debug Interface Standard 3.3V TTL: 2 wire (TX, RX) Data Bit: 5,6,7,8 Stop Bit: 1, 2 Check Digit: None, Even, Odd Baud Rate: TTL 600 bps'921600 bps Software: No Aow Control,Hardware RTS/CTS,Software Xon/Xoff Flow Control Software Web Page Configuration: Http Web Page Configuration, Customers can Customize the Custom Http Page, Information Printing Remote real-time Log Configuration Method: WEB Page, Cli Command, XML File Import, Telnet Configuration, lOTService Configuration Software, Serial Port Quick Configuration Solid upgrade: Web Page, lOTService Tool Basic Parameters Size? 50 x 23 x 11 mm Operating Temperature: -45 ?85? Save Environment: -45?85?, 5-95% RH (No Condensation) Input Voltage: 3.3V Working Current: -100mA Power Consumption: <400mW

• Cortex-M3 MCU (128KB SRAM) and 2MB Flash
• FreeRTOS real-time operating system.Certification: 3C/FCC/CE/ROHS

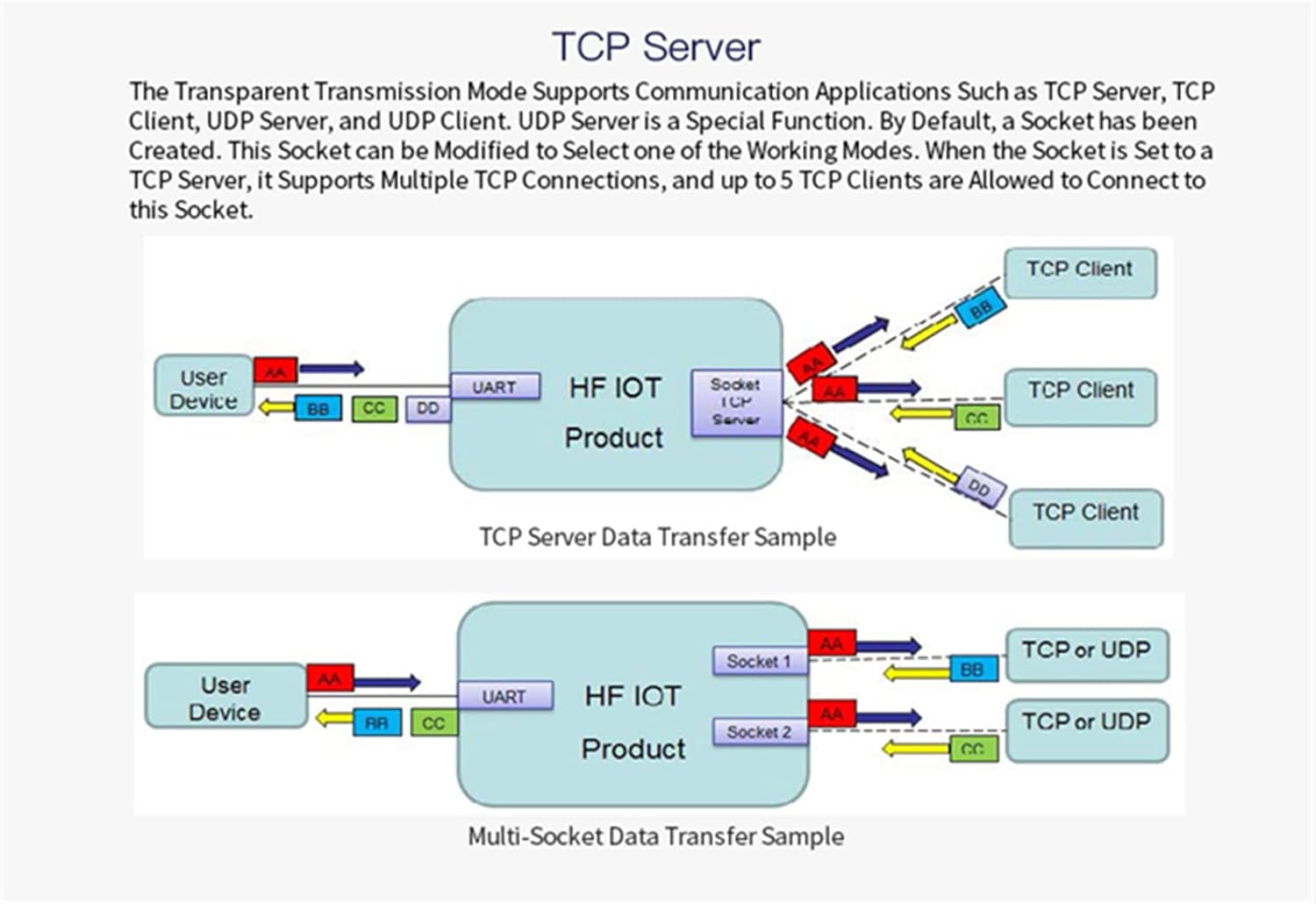

• Support TCP / IP / Telnet / Modbus TCP protocol, Support serial port to 10 / 100M Ethernet data transmission, serial port rate up to 921600 bps, Support 10 / 100M Ethernet adaptation, Support webpage simple configuration, Support data SSL / AES / DES security encryption configuration, Support web OTA wireless upgrade, Supports industrial-grade operating temperature: -40 to + 85? C.
• Port: 1RJ45 with LED, Interface Standard: 10/100 Base-T Auto-negotiation.
• Web Page Configuration: Http Web Page Configuration, Customers can Customize the Custom Http Page, Information Printing Remote real-time Log
