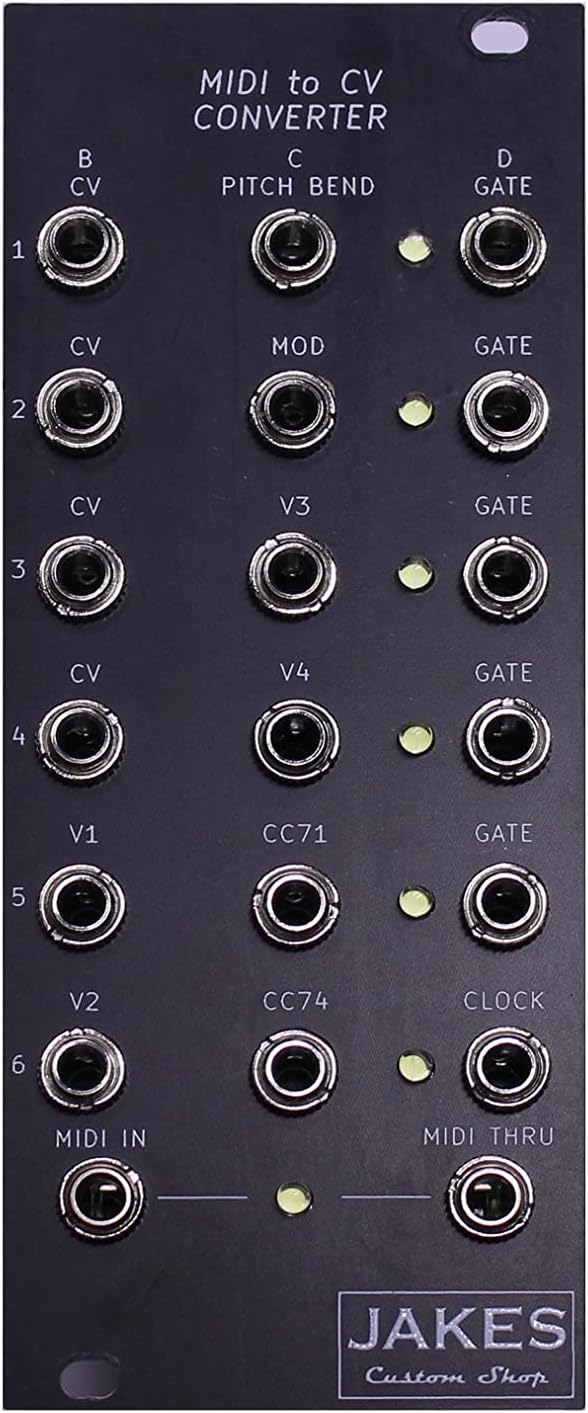

JCS MIDI to CV Eurorack Module

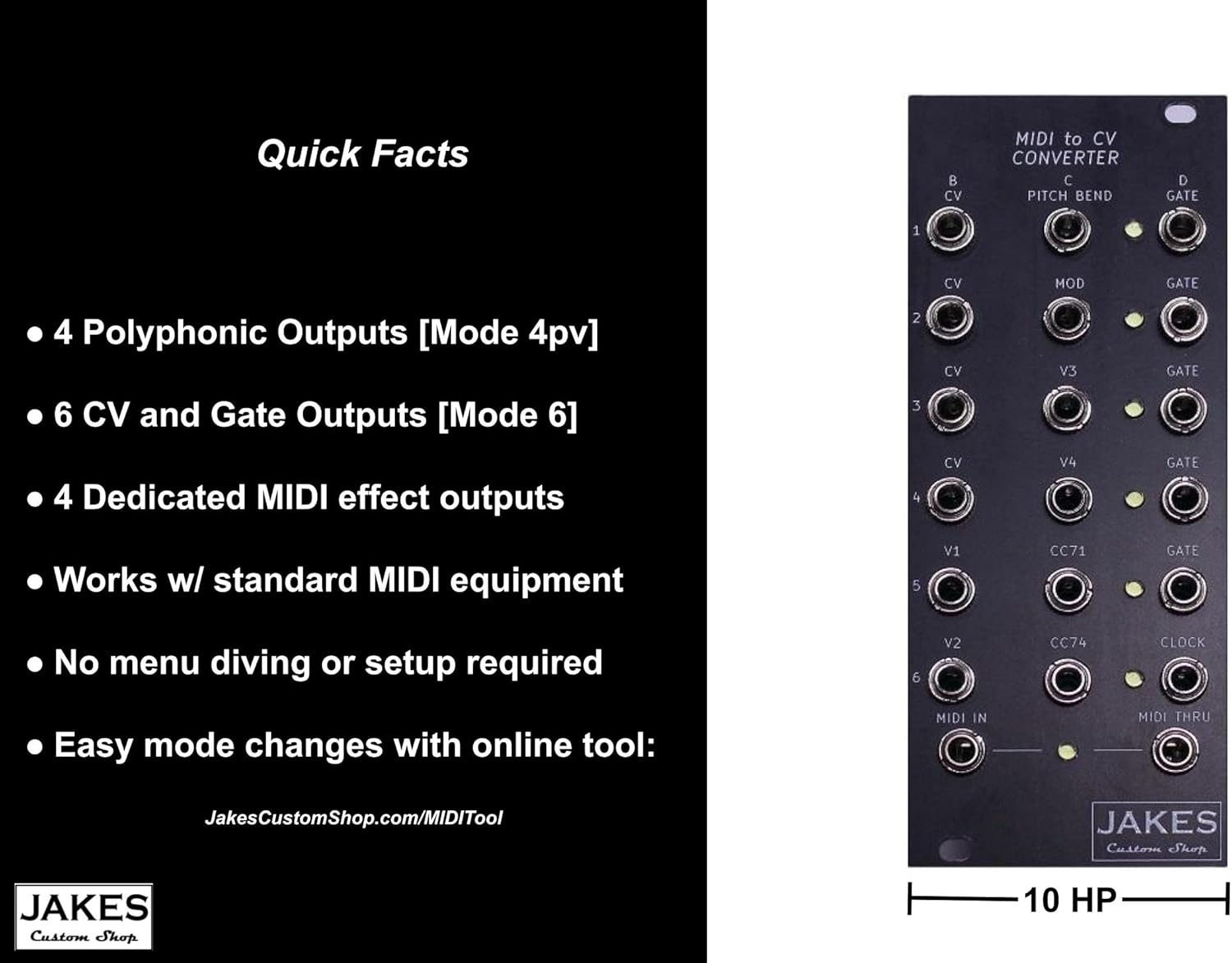

The Jake’s Custom Shop MIDI to Control Voltage eurorack module is a re-configurable digital to analog converter based around the MIDI-Muso Integrated Circuit. A total of 18 outputs can be used as 1 V/O CV outputs, gates, triggers, and various MIDI effect triggers. The Module is shipped in mode “4PV.” In this configuration, four MIDI notes on one MIDI channel may be played polyphonically to create chords and complex melodies. Up to 6 MIDI notes each on separate channels can be mapped to individual CV and Gate outputs. This module is also great for use as a drum sequencer with up to 11 auxiliary gates. There are essentially limitless combinations of CV, gate and MIDI effects.

• Up to 6 MIDI notes each on separate channels can be mapped to individual CV and Gate outputs.
• 18 outputs can be used as 1 V/O CV outputs, gates, triggers, and various MIDI effect triggers.

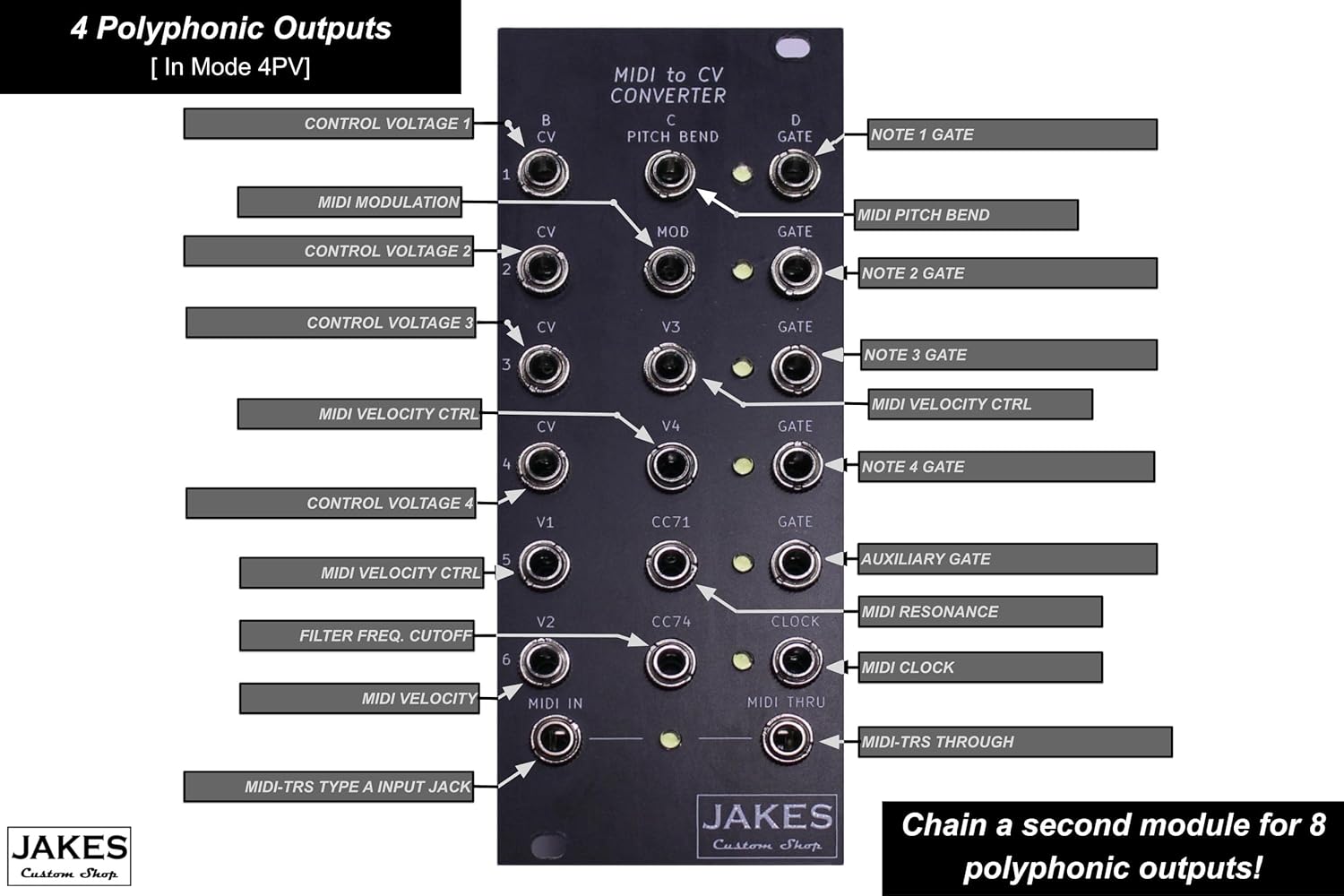

• Default mode: Four MIDI notes on one MIDI channel may be played polyphonically to create chords and complex melodies.
• Great for use as a drum sequencer with up to 11 auxiliary gates.
• 1, 1.2 or 0.5 Volts/ per octave
• Eleven operation modes
• MIDI-in/out for adding multiple MIDI Devices
• White LED indicators on each Gate and MIDI input
• Full 10-octave range (0 to 10 V)
