IO23C01 DC12V 30A Multifunction Timer Delay Relay Module High Power On/Off Self-Lock Instantaneous Switch for Motor LED Car

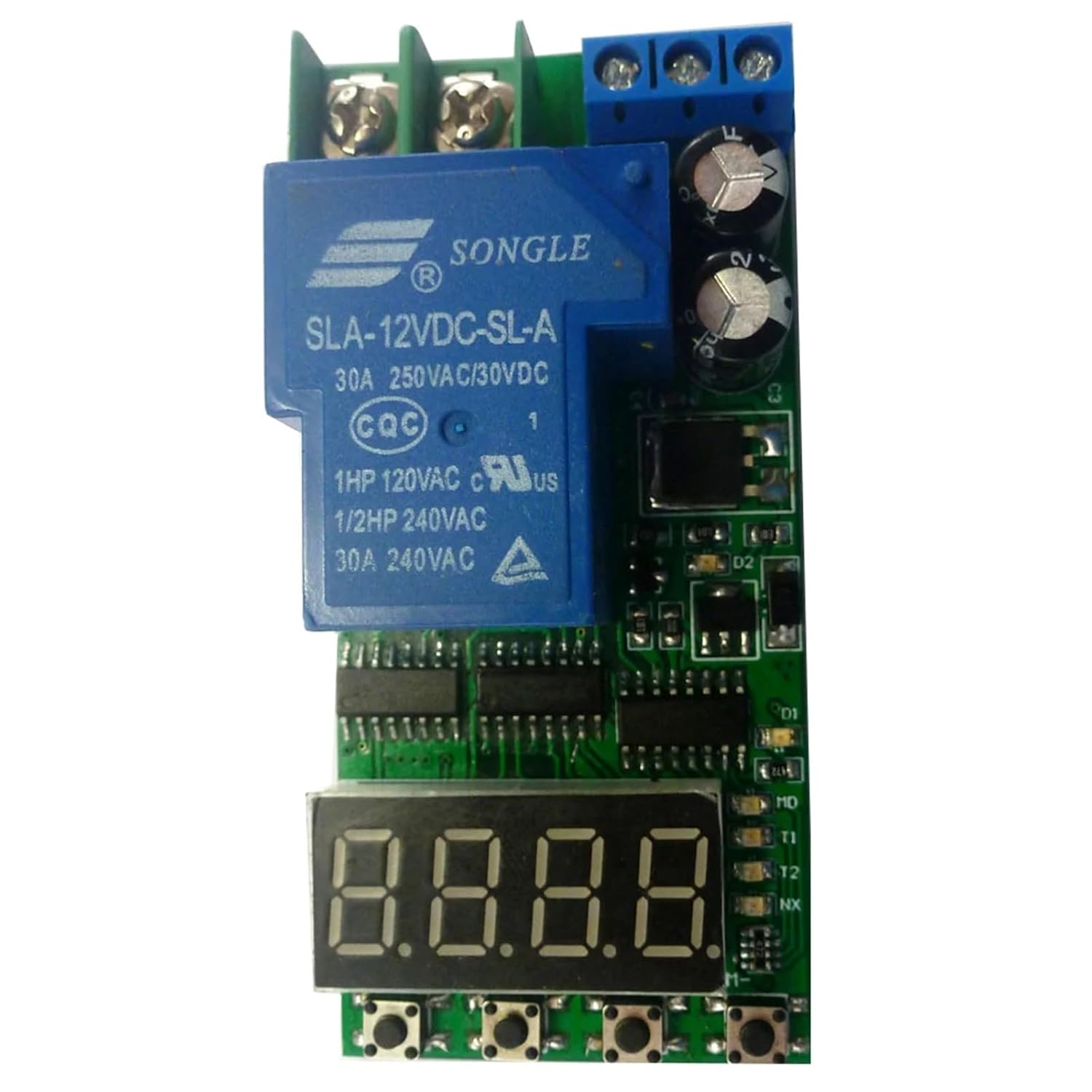

MotorsIO23C01 DC12V 30A Multifunction Timer Delay Relay Module High Power On/Off Self-lock Instantaneous Switch for Motor LED CarFeatures:IO23C01 multifunction relay control module, designed specifically for a variety of users with different needs, the use of micro-controller as the primaryControl unit, preset 18 kinds of functions, and can be based on user needs, customize and add other specific functions. power relay modules, high power high-voltage transistor, red, blue signal lights, military grade double-sidedPCB board, cloth board to consider a comprehensive, stable performance, can be widely used in a variety of power control type applications.Specifications: upgrade to version 3.0, the module functions by eight kinds before, increased to 18 kinds, to meet the needs of more applicationsPower is 12VUses top-quality high-voltage power supply modules, discrete power supply before replacing the system more stable and reliableIncreased 0.1 seconds , accuracy from the previous 0.1 seconds, upgrade to 0.01 secondsIncrease in automatic power saving feature, users can independently setSize:80x37x24mmWeight : 46 gramsApplications:Home lighting system Remote control switchRemote lockingSmart Home / Home Automation 12V LED lightingFluorescent lamp MotorCarFluorescent lampAutomotive electronicsIndustrial automation and controlModule Functions:Tips: Function 1-8 on power-up self-start function 9-18 require high pulse signal (high duration is shorter than 20ms, hereinafter the same) trigger the start.Function 1: Pick: After power, time delay relay pull T1, T1 between 0.1 seconds -270 hours adjustable, IN interface to a high level pulse signal, repeat the above functions;Function 2: off: when the power relay, time delay relay disconnected T1, T1 between 0.1 seconds -270 hours adjustable, IN interface to a high level pulse signal, repeat the above functions;Function 3: pull off again: After power relay to not pull, the delay time T1 reaches the relay is energized; pull the relay off after T2 arrival time, delay time T1 and T2 in 0.1 seconds -270 hours between adjustable, CH1 interface to ahigh pulse signal, repeat the above functions;Function 4: and then pull off: After power, immediately pull the relay, the relay off delay time T1 after arrival; T2 arrive after disconnecting time relay, -270 hour in 0.1 seconds delay time between T1 and T2 adjustable to CH1 interface a high pulse signal, repeat the above functions;Function 5:Infinite loop mode 1: After power relay to not pull, after the delay time T1 reaches the relay is energized; pull the relay off after time T2 arrives, and then repeat the above condition, the delay time T1 and T2 at 0.1 adjustable between second -270 hours, giving a high level pulse signal CH1 interface, you can restart the above functions;Function 6:Infinite loop mode 2: After power, immediately pull the relay delay time T1 reaches the relay off; arrive after disconnecting time T2 relay, and then repeat the above condition, the delay time T1 and T2 in 0.1 seconds adjustable between -270 hours, giving a high level pulse signal CH1 interface, you can restart the above functions;Function 7:Finite loop mode 1: 5 on the basis of functionality, increasing the number of cycles function, this time between T1 and T2 in 0.1 seconds -9999 seconds adjustable cycles NX adjustable between 1-9999 times to CH1 interface a high pulse signal, the above functions can be re-started;Function 8:Finite loop mode 2: 6, on the basis of the function, increasing the number of cycles function, this time between T1 and T2 in 0.1 seconds -9999 seconds adjustable cycles NX adjustable between 1-9999 times to CH1 interface a high pulse signal, the above functions can be re-started;Function 9:Latching relay modes: CH1 interface to relay a high level pulse signal, relay, give a high pulse signal relay disconnected.Function 10:Trigger relay modes: CH1 interface to a high signal relay, relay, low disappear, relay disconnected.Function 11:Pull the trigger : After power relay does not act, a high -level interface to CH1 pulse signal, the delay time relay pull T1, T1 between 0.1 seconds -270 hours adjustable, repeating a high level interface to CH1 pulse signal, repeat the above function;Function 12:Trigger off: After power relay does not act, a high -level interface to CH1 pulse signal relay, the relay off delay time T1, T1 between 0.1 seconds -270 hours adjustable, repeat to CH1 interface a high pulse signal, repeat the above functions;Function 13:Pull the trigger then disconnect: After power relay does not act, CH1 interface to a high level pulse signal, the delay time T1 reaches the relay is energized; pull the relay off after T2 arrival time, delay time T1 and T2 between 0.1 seconds -270 hours adjustable, repeat CH1 interface to a high level pulse signal, repeat the above functions;Function 14:Disconnect and then pull the trigger : After power relay does not act, a high -level interface to CH1 pulse signal, immediately pull the relay, the relay off delay time T1 after arrival; T2 arrive after disconnecting time relay, delay time between T1 and T2 in 0.1 seconds -270 hours adjustable, repeat CH1 interface to a high level pulse signal, repeat the above functions;Function 15:Infinite loop mode 1: After power relay does not operate to a high level pulse signal CH1 interface, the delay time T1 reaches the relay is energized; pull off the relay arrival time T2, and then repeat the above condition, the extension when the time between T1 and T2 in 0.1 seconds -270 hours adjustable, repeat CH1 interface to a high level pulse signal, the above functions can be re-started;Function 16:Infinite loop mode 2: After power relay does not act, a high -level interface to CH1 pulse signal, immediately pull the relay, the relay off delay time T1 after arrival; break time T2 after reaching relay, then repeat the above condition, the delay time between T1 and T2 in 0.1 seconds -270 hours adjustable, repeat CH1 interface to a high level pulse signal, the above functions can be re-started;Function 17:Finite loop mode 1: 15 on the basis of functionality, increasing the number of cycles function, this time between T1 and T2 in 0.1 seconds -9999 seconds adjustable cycles NX adjustable between 1-9999 times, repeating to CH1 interface a high pulse signal, the above functions can be re-started;Function 18:Finite loop mode 2: 16 on the basis of functionality, increasing the number of cycles function, this time between T1 and T2 in 0.1 seconds -9999 seconds adjustable cycles NX adjustable between 1-9999 times, repeating to CH1 interface a high pulse signal, the above functions can be re-started.Note: 1.Due to the light and screen difference, the item's color may be slightly different from the pictures.2.Please allow 1-3cm differences due to manual measurement.Package Includes:1x Timer Delay Relay Module==========
