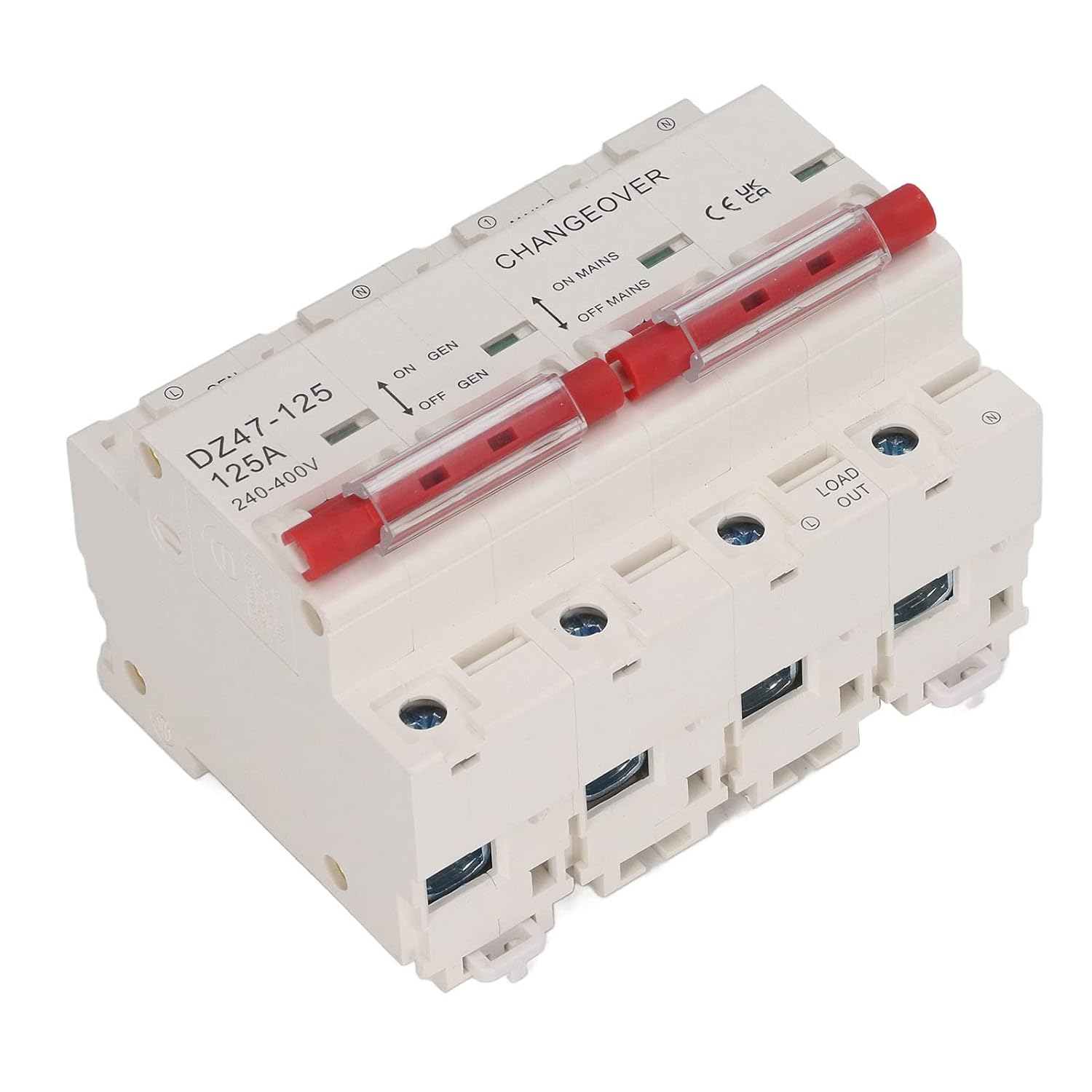

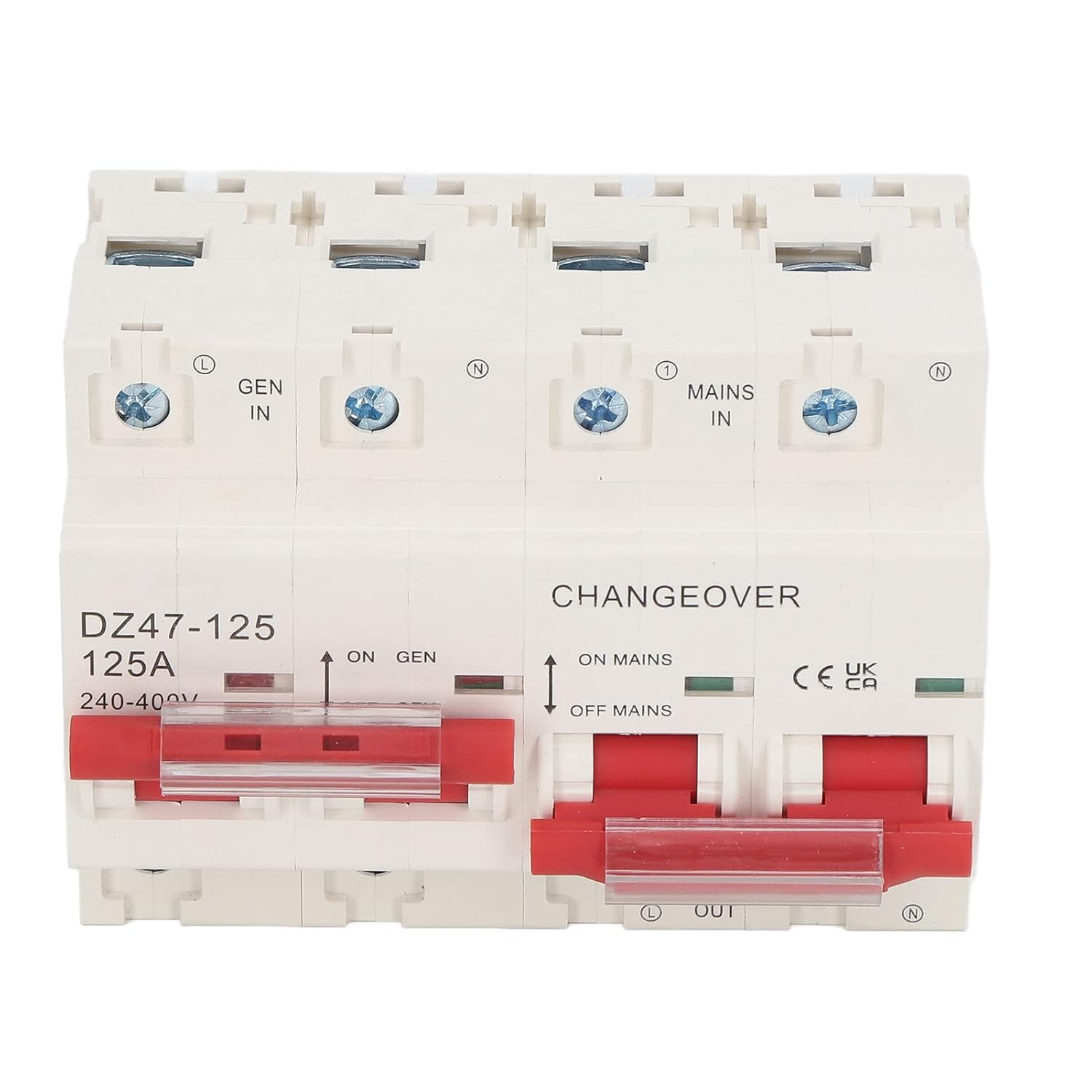

Interlock Transfer Circuit Breaker, Manual Transfer Switch Dual Power 125A 2P and 2P 10KA DIN Rail Mount Breaking Capacity Transfer Switch AC 240‑400V

Specification:Item Type: Interlock Transfer Circuit BreakerMaterial: Pa66Rated Voltage: AC 240-400VRated Current: 125ANumber of Levels: 2P and 2PSegmentation Capacity: 10KAElectrical Life: Not less than 10,000 timesMechanical Life: Not less than 20,000 timesTemperature and Heat Test: Class 2 (temperature at 55℃, relative humidity 95%)Package List:1 x Interlock Transfer Circuit Breaker 1 x Busbar

• Versatile Interlock Circuit Breaker: Designed for rail installation, this circuit breaker functions as a 2P and 2P switch, allowing seamless switching between the generator and the main power supply to maintain a stable power flow.
• Comprehensive Leakage Protection: Equipped with a multilevel interlocking mechanism, this circuit breaker simultaneously provides leakage protection for both the main circuit and auxiliary circuit.
• Manual Transfer Capability: In the event of a normal power supply failure, this circuit breaker enables manual transfer to a backup power supply or generator, ensuring reliable and safe power supply.
• Durable PA66 Housing: With an advanced structure and high breaking capacity, this compact circuit breaker features a PA66 housing composed of impact-resistant and highly flame-retardant materials, ensuring reliable performance.
• Wide Range of Applications: This circuit breaker is well-suited for environments where power outages are strictly prohibited, such as fire protection systems, hospitals, skyscrapers, military industries, construction markets, banks, and networks.
