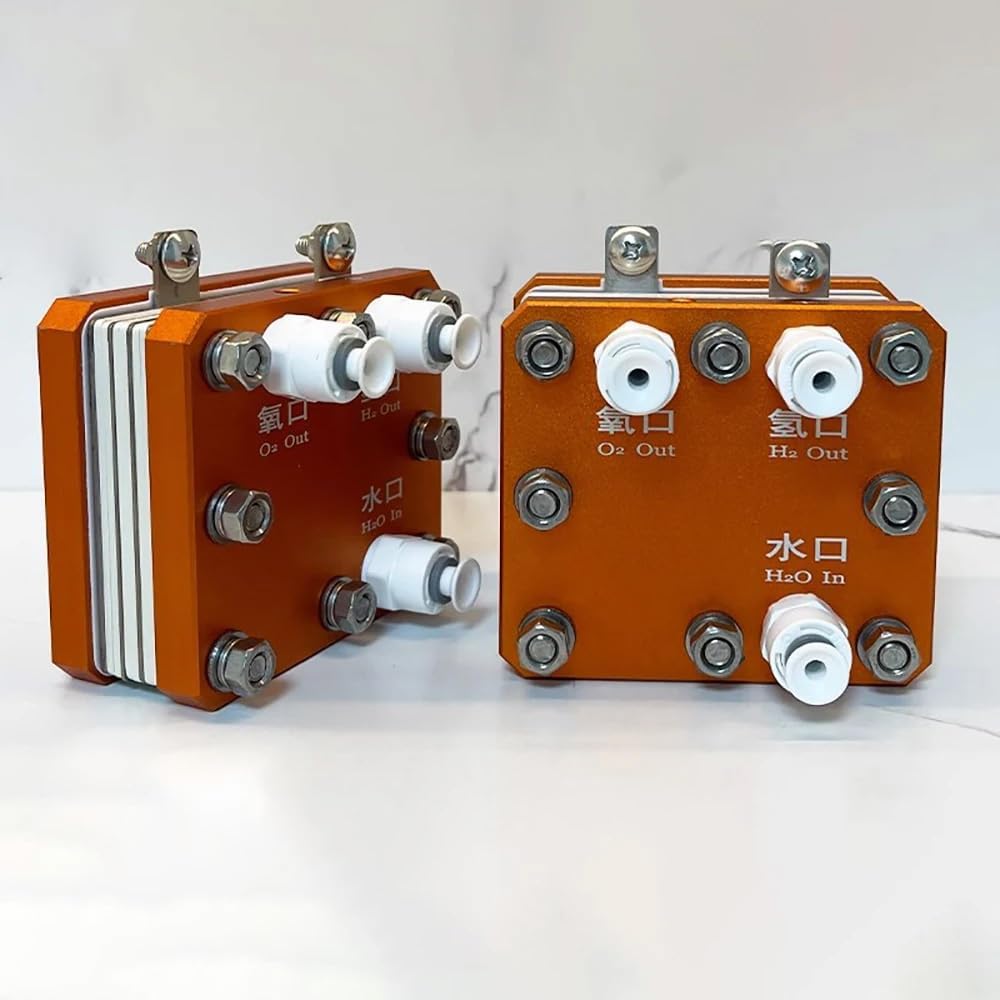

iDili 200mL/min PEM Electrolyzer Stack, Hydrogen Generator Replacement Part, CF26A-3.5V-200mL

PEM Electrolyzer Stack 200ml/min - Hydrogen Generator Replacement Part (Model: CF26A-3.5V-200ML) Specifications: Model: CF26A-3.5V-200ML Hydrogen Output: 200 ml/min Oxygen Output: 100 ml/min Constant Current: 26A Operating Voltage: 3.5V Single Cell Voltage: 1.7V-2.2V Electrode Area: 20 cm² Current Density: ≥1.3 A/cm² Pressure Range: 0-2 MPa (Max Working: ≤2 MPa) Water Inlet: Conductivity ≤5 μS/cm, Temp 10-50°C Port Size: BSPP 1/8" (Water/H₂/O₂ ports) Operating Temp.: 10-60°C Water Flow: ≥600 ml/min Electrode Qty.: 1 PCS Membrane Type: Proton Exchange Membrane Tank Capacity: ≥1200 ml Dimensions: 88 × 45 × 90 mm (L×W×H) Packing List: 1 * PEM Electrolyzer Stack

• 200ml/min High-Purity Hydrogen Output
• Corrosion-Resistant Materials & Sealed Construction
• ≥10,000 Hours Lifespan
• Stable Performance with PEM Membrane
• Compact Design: 88×45×90 mm
