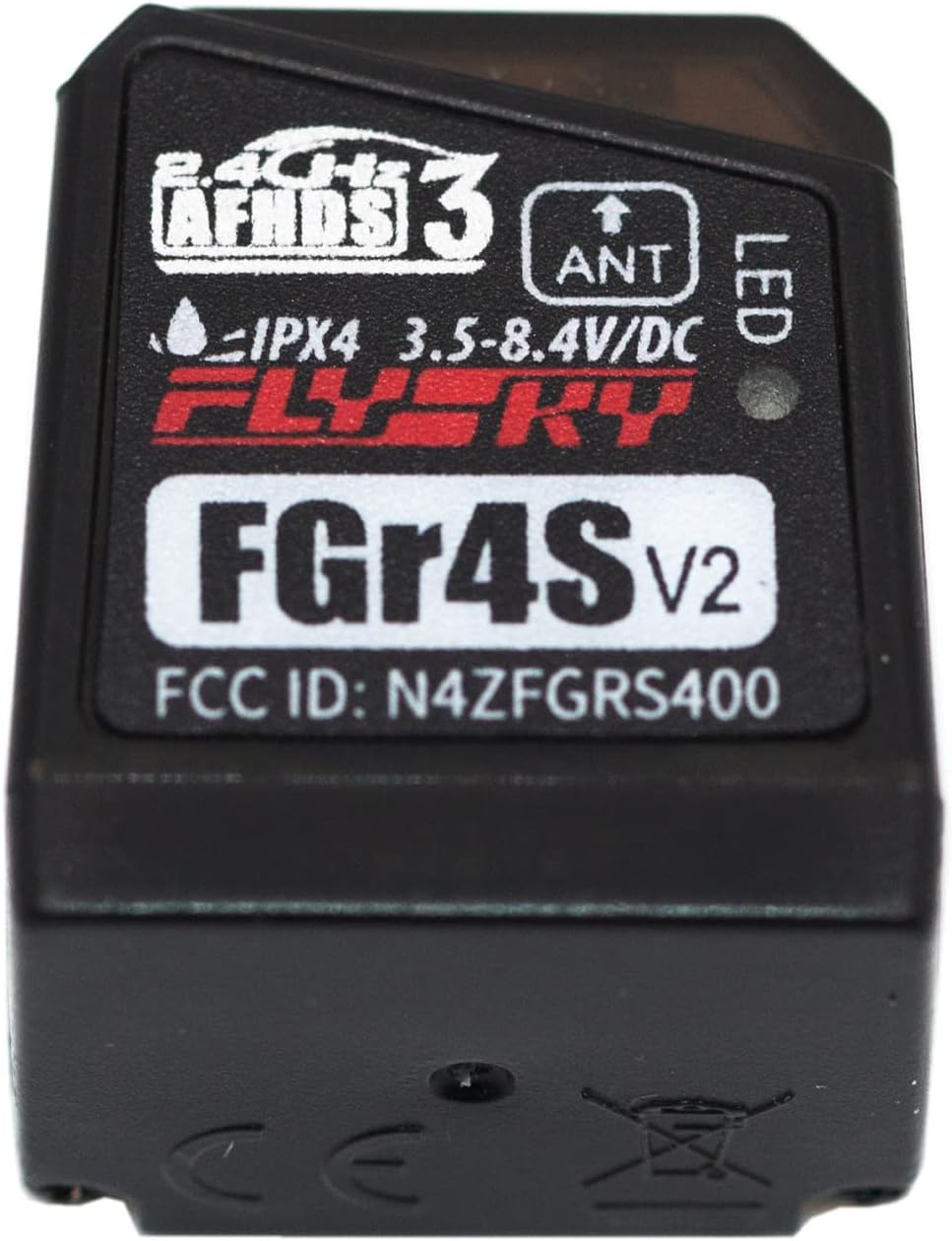

HTLNUZD Flysky FGr4S V2 4CH AFHDS 3 Remote Control 2.4GHz Receiver, Output Compatible with FS-NB4 Noble PL18 RC Transmitter Built-in Single Antenna PWM/PPM/I-Bus for RC Boat Car
Product details
| Management number | 216429896 | Release Date | 2026/04/19 | List Price | $14.47 | Model Number | 216429896 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product Model: FGr4SPWM channel:4Wireless frequency: 2.4GHzWireless protocol: AFHDS 3 Range:> 200m (ground) Antenna type: Built-in single antenna Power:3.5-8.4V RSSI:Supported Data port: PWM / PPM / i.bus / s.busTemperature range: -10 ℃ — + 60 ℃ Humidity range:20% -95%Online Update:YesDimensions:25.5 * 22 * 17.3 mm Weight:5.1gPackage list1 * FGr4S receiver1 * banding cableBindingTo ensure good signal strength, make sure the receiver antenna is as far away from any metal parts when installing the receiver.①Insert the binding cable into the receiver's BIND port.② Plug the power cable into any other port, and the receiver's LED will start to flash quickly indicating that it has entered bind mode.③Put the transmitter into bind mode; (See the transmitter's instruction manual for more information.)④Binding is successful when the receiver's LED starts to flash slowly. Remove the power and bind cables from the receiver *if the transmitter is bidirectional the reciever status indicator will not fash slowly.⑤Reconnect the power cable to the receiver.⑥ Check to make sure that the transmitter and receiver are working as expected, if there are any issues or unexpected operation follow the steps above to bind again.

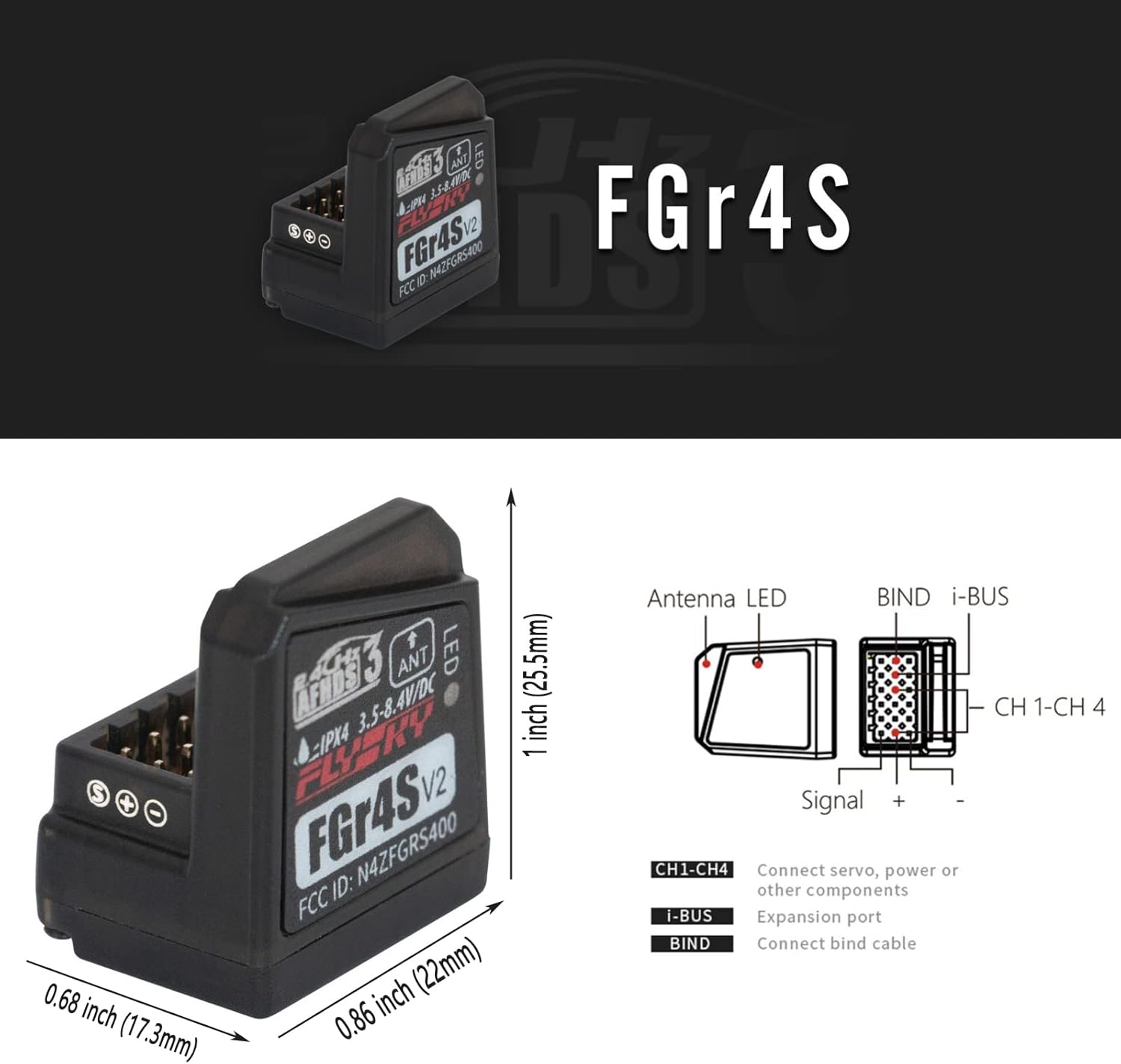

- 【Dimensions】25.5 * 22 * 17.3 mm; Weight: 5.1g; Effectively save space and reduce item's weight-bearing.
- 【Data port】The receiver supports PPM/i-bus/PWM data output, suitable for AFHDS3 system remote controller.
- 【Mode type】2.4GHz 4 channel receiver is compatible with FlySky Noble FS-NB4 PL18 Transmitter, good for Rc Car and Rc Boat.
- 【Antenna type】It uses an internal single antenna with two-way transmission capabilities and is designed to be compact and easy to install.
- 【Wireless protocol】adopts AFHDS 3, Flysky's third-generation automatic frequency hopping digital system, Easy to bind and very fast link-up, quick and extremely stable in performance.
| Item Weight | 0.634 ounces |
|---|---|
| Manufacturer | HTLNUZD |
| Package Dimensions | 5.59 x 2.64 x 1.02 inches |
| Manufacturer recommended age | 7 months and up |
