High-Precision Multi-Frequency GNSS Antenna With RHCP Polarization For GPS L1/L2, for GLONASS, For Beidou B1/B2/B3, For Galileo E1/E5b, Compatible With AG15/AG25(TNC-SMA)

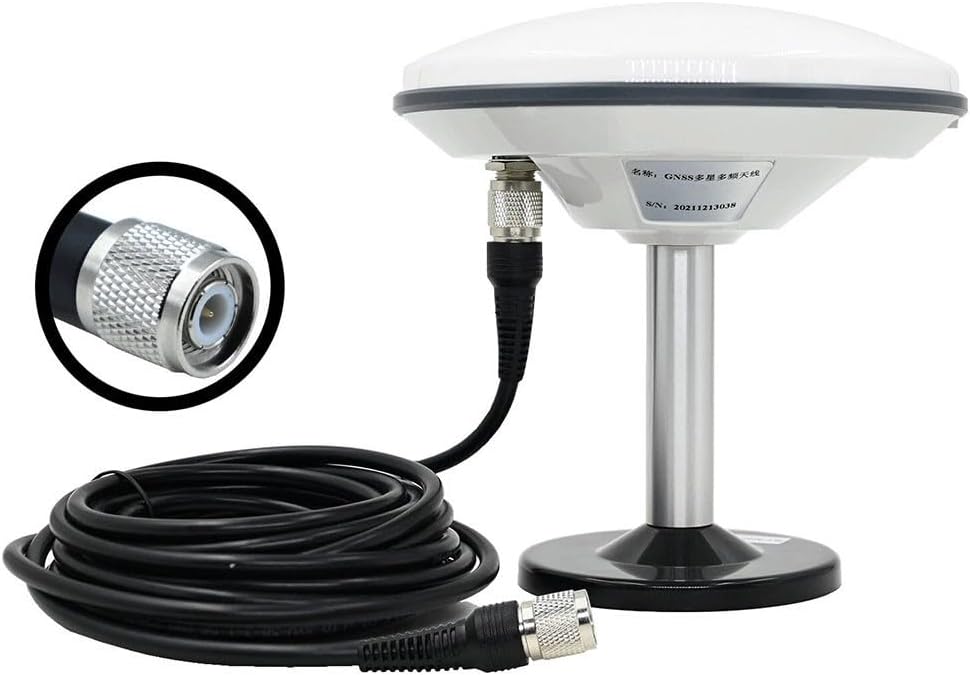

Specifications:Part name: GNSS antennaMaterial: engineering plastic + anti-Uv + metalInterface: TNC-SMA, TNC-TNC, TNC-BNC (optional)Color: as shown in the figureWorking frequency: GPSL1/L2 BeiDouB1/B2/B3 GLONASSG1/G2 for GalileoE1/E5bPolarization type: RHCPImpedance: 50ΩHorizontal coverage angle: 360°Output standing wave ratio: ≤1.5Antenna gain: ≤3dBPhase center error: ≤2mmLow noise specifications；For LNA gain: 40±2dBNoise figure: ≤1.5dBOutput standing wave ratio: ≤1.5Working voltage: +3V~+15VWorking current: ≤45mAAntenna size (mm): Ф150mm×63.7mmWeight (g): 680gWorking environment；Working temperature (℃): -40℃ ~+70℃Storage temperature (℃): -55℃ ~+85℃Waterproof level: IPX67Package contents:1 x GNSS antenna1 x base1 x 5m signal cable

• High-Precision GNSS Coverage: Supports GPS, GLONASS, BDS, and for Galileo systems, including GPSL1/L2, GLONASS G1/G2, Beidou B1/B2/B3, for Galileo E1/E5b, delivering accurate positioning for mapping, automated farming, and infrastructure projects.
• Multi-Application Compatibility: Designed for AG15, AG25, AG35 replacement use, the GNSS GPS ANTENNA fits surveying, geodesy, road construction, dock container operations, and for PING MACHINE AGRICULTURAL POSITIONING, ensuring consistent field reliability.

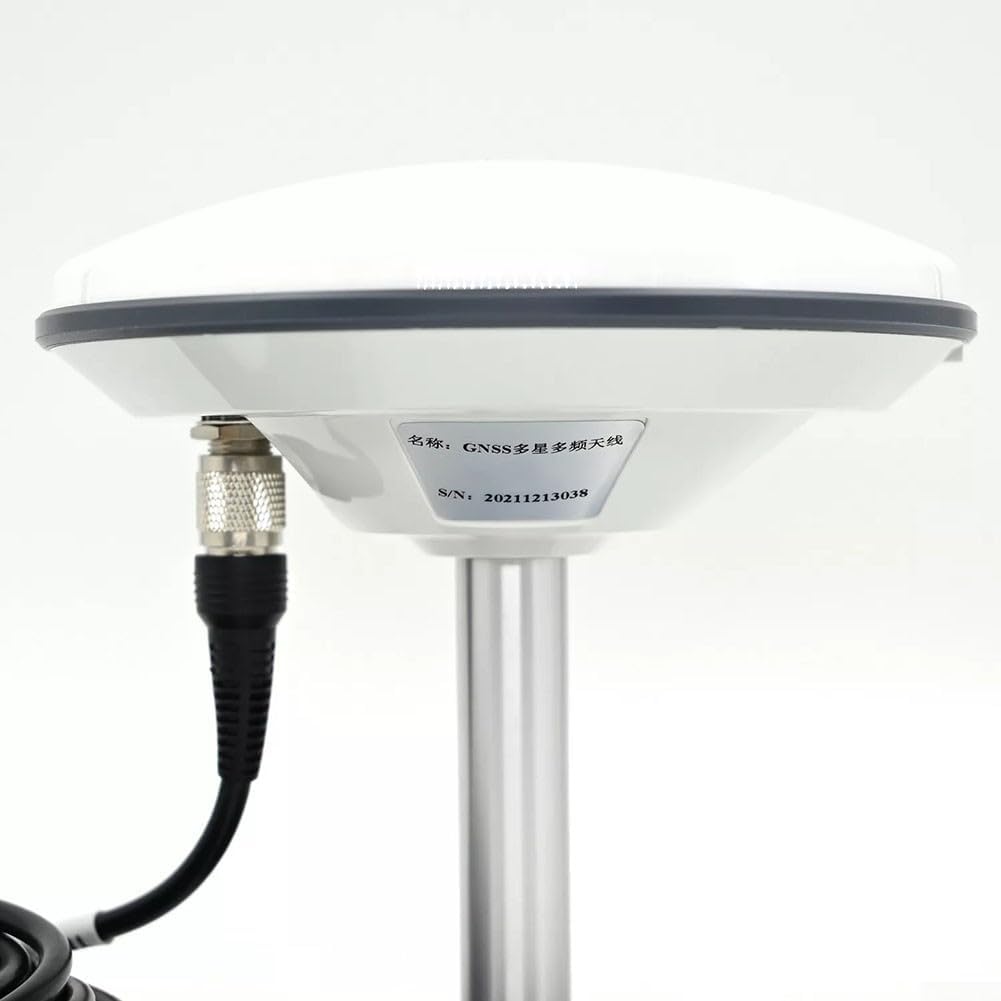

• Enhanced Signal Reception: Mushroom head antenna design with high gain ≥3dB, wide beam, RHCP polarization, and low noise figure ≤1.5dB allows strong satellite lock even at low angles or under obstruction, boosting GLONASS measurement performance.
• Robust Field Design: High-strength ABS shell, IPX67 waterproof rating, dustproof structure, and extreme temperature tolerance (-40℃~+70℃) make it LONG LASTING in outdoor environments, forestall‌ damage, and maintain operational integrity.

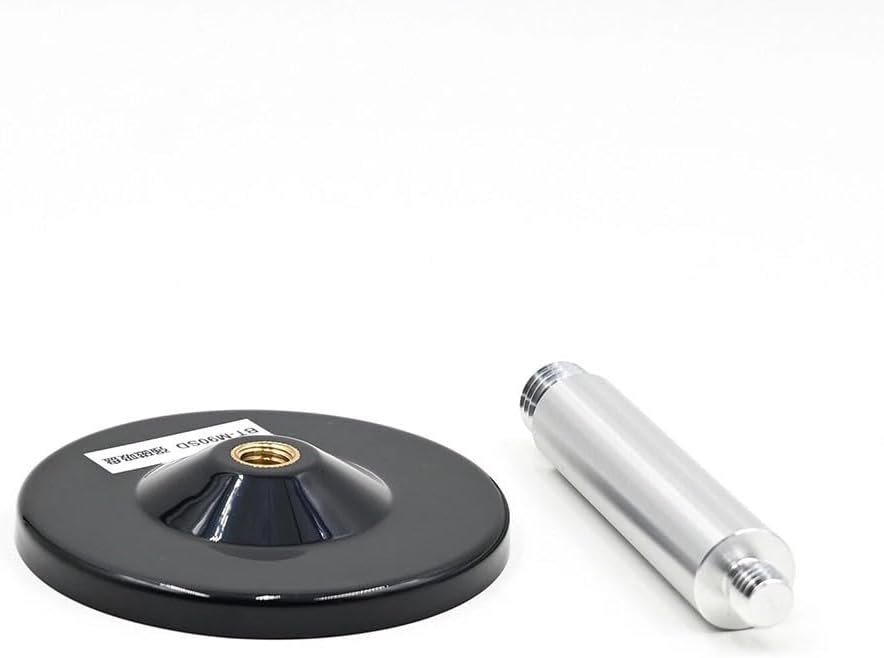

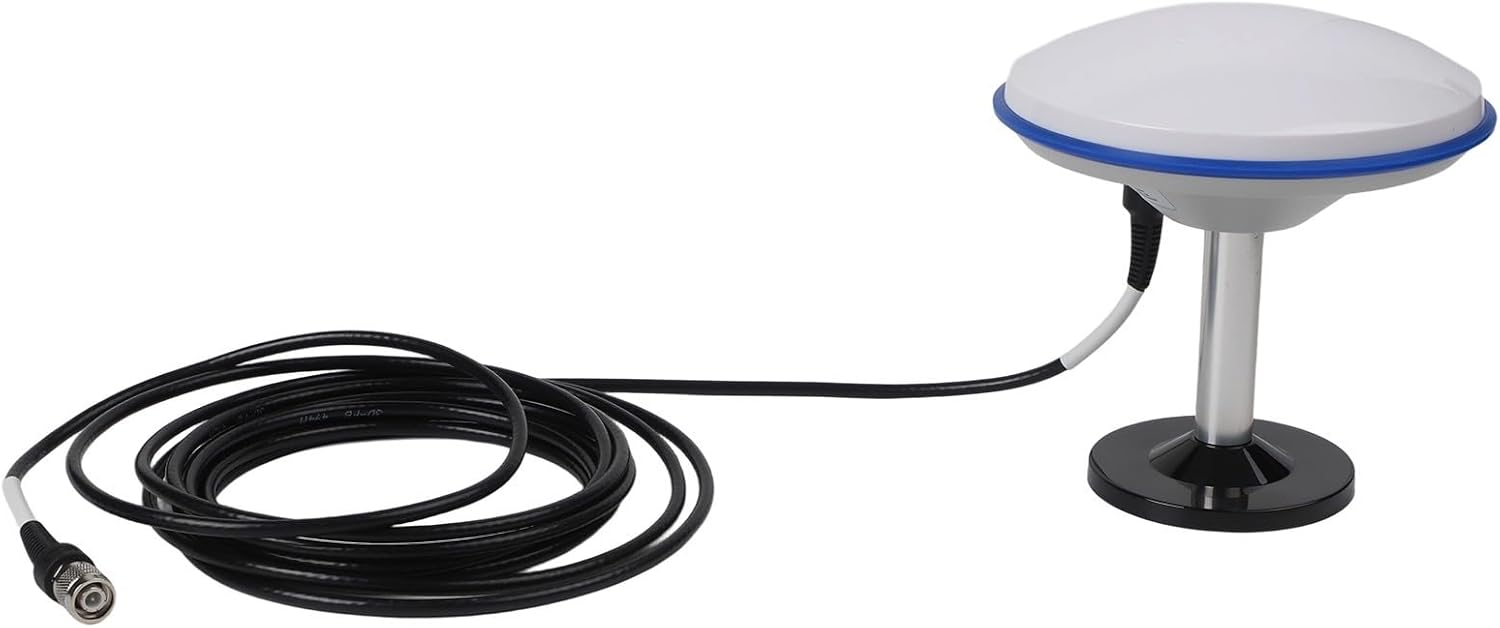

• Precise Phase Center: Multi-feed point engineering keeps phase center error ≤2mm, matched to geometric center to insure measurement accuracy; includes 5m signal cable, base, and optional TNC-SMA/TNC-TNC/TNC-BNC interfaces for general installation needs.
