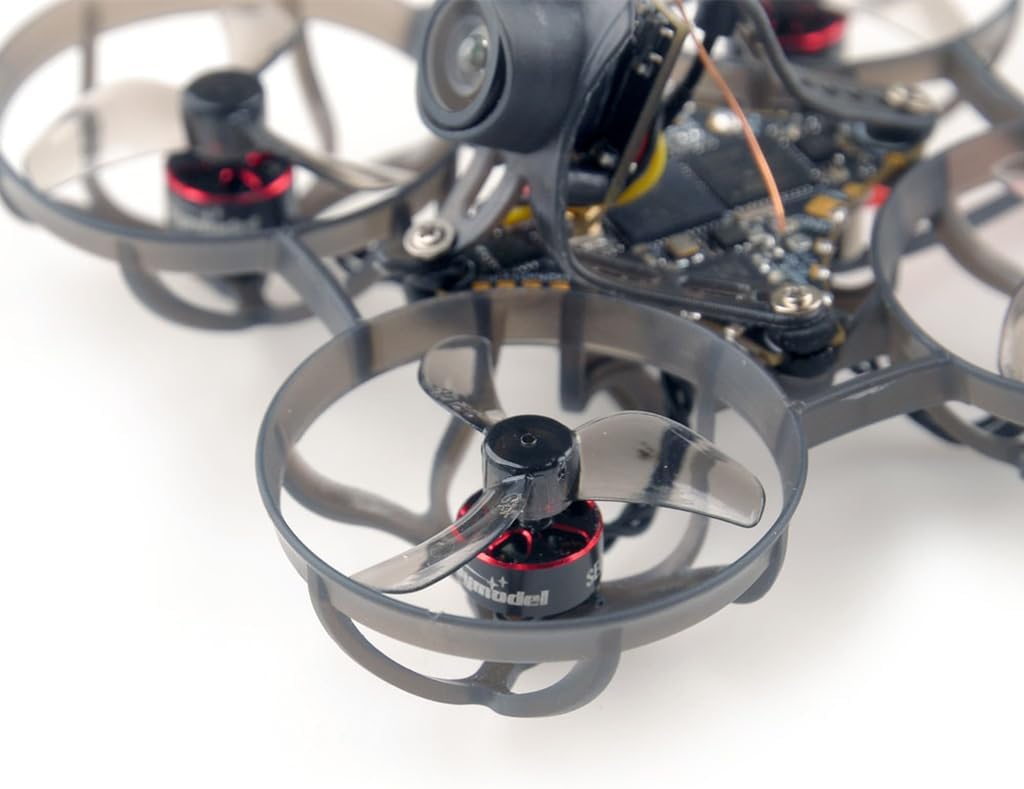

HappyModel Mobula6 Drone 1S 65mm FPV Drone Quadcopter Control Micro FPV Bwhoop AIO Flight Controller 2.4GHz ELRS 2.4G Receiver FX17-B 1/3 CMOS 800TVL Camera

2.4GHz ExpressLRS Serial receiver Mobula6 ELRS 2.4G Flight controller: ELRS F4 2G4 Firmware target: CRAZYBEEF4SX1280 Built-in ExpressLRS receiver: SPI ELRS 2.4GHz Built-in Dshot ESC: 5A Receiver antenna plug: SMD ceramic antenna Onboard VTX power: 25mw~300mw Brushless Motor: 0702 KV26000 Propeller: HQPROP 31mm Bi-blade Battery plug: PH2.0 Frame: Mobula6 frame 3.3gram SuperX ELRS Flight controller: SuperX ELRS Firmware target: Customized STM32F411 Built-in ExpressLRS receiver: Serial ELRS 2.4GHz Built-in Dshot ESC: 5A Receiver antenna plug: Enameled Copper wire antenna Onboard VTX power: 25mw~400mw Brushless Motor: 0702 KV28000 Propeller: Gemfan 1208-3 tri-blade Battery plug: A30(compatible with BT2.0) Frame: Mobula6 2024 frame 2.76gram Item Name Mobula6 2024 1S 65mm Bwhoop Drone Frame +Canopy*1 SuperX ELRS AIO 5-IN-1 Flight controller*1 SE0702 KV28000 brushless motor*1 Gemfan 1208-3 31mm tri-blade propellers(4cw+4ccw)*1 FX17-B 1/3 CMOS 800TVL camera NTSC 4:3*1 Onboard 5.8G 25mw~400mw VTX*1 Spare canopy*1 Propeller disassemble tool*1 Screw driver*1 Onboard 5.8g VTX Firmware version: OPENVTX MSP VTX: PIT Mode support Channels: 40ch Transmitting Power: 0/RCE/25mw/100mw/400mw Power supply: DC 5V Current (5v): <650ma(400mw) Antenna connector: U.FL FX17-B Camera Image Sensor: 1/3"CMOS Horizontal Resolution: 800TVL FOV 150° Signal System: NTSC Net Weight: 1.5g Dimensions: L14mm*W14mm*H13mm

• AIO Flight controller with Serial ELRS Receiver and 5.8G Openvtx. Mobula6 2024 1S 65mm ultra light micro FPV Whoop. Packet Rate option: 50Hz/150Hz/250Hz/500Hz. ExpressLRS Firmware version: V3.0. RF Frequency: 2.4GHz. Antenna : Enameled copper wire antenna. Telemetry output Power: <12dBm. Receiver protocol: Serial_basedCRSF. Compatible with ExpressLRS V3.x.x TX Module. Could flash single ELRS receiver firmware by Wifi. ExpressLRS firmware target:Generic ESP32 2.4Ghz Rx and VTx.
• FX17-B 1/3 CMOS 800TVL Camera awesome footage. Smooth and powerful. Onboard 4in1 ESC Power supply: 1S LiPo/LiPo HV. Current: 5A continuous peak 6A (3 seconds). Support BLHeliSuite programmable. Factory firmware: Bluejay v0.19.2. Default protocol: DSHOT300 Recommend ESC Startup power value to min1100/max1200.
• Flight controller: SuperX ELRS AIO 5-IN-1 Flight controller. MCU:STM32F411CEU6 (100MHZ, 512K FLASH),ESP32-PICO-D4 Sensor:BMI270(SPI connection). Mount hole size: 25.5mm*25.5mm. Power supply: 1S battery input (DC 2.9V-4.35V)Built-in 5A(each) Blheli_S 4in1 ESC, Betaflight OSD(SPI Control), 5.8G OpenVTX 0mw~400mw(MSP control), UART ExpressLRS v3.0.0, voltage meter sensor , voltage meter scale 110, current meter sensor , current meter scale 1175.
• Motor Mode: SE0702 KV28000. Configu-ration:9N12P. Stator Diamter:7mm. Stator Length:2mm. Shaft Diameter:Φ1mm. Motor Dimension(Dia.*Len):Φ9.5mm*14mm. Weight(g):1.46g. No.of Cells(Lipo):1S only.
• Item Name: Mobula6 2024 1S 65mm ultra light micro FPV Whoop Wheelbase: 65mm Size: 81mm*81mm*37mm. Propellers Materials: PC. Inch: 31mm. Pitch: 0.8 in. Weight: 0.21g. Mounthole diameter: 1mm.Compatible for1S Lipo/LIHV.
