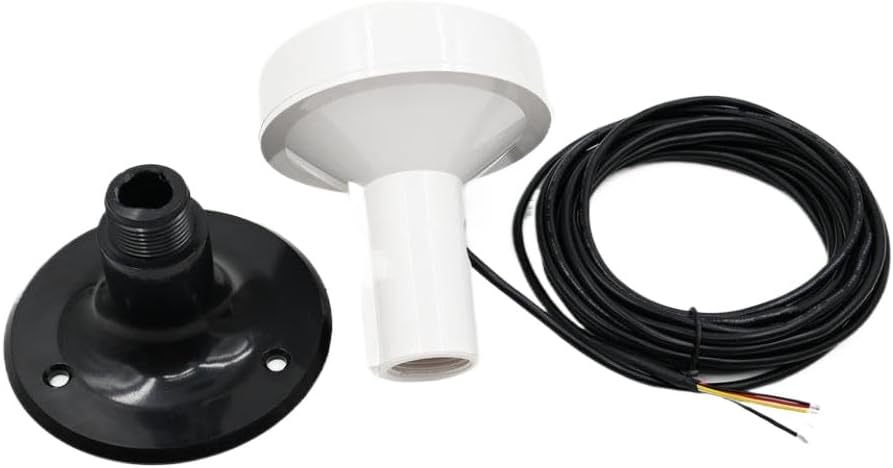

GPS Receiver QUESCAN R70L RS232 12V Marine NMEA0183 4800 Baud Compatible with 12V 24V Systems
Product details
| Management number | 215119747 | Release Date | 2026/04/12 | List Price | $36.00 | Model Number | 215119747 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
QUESCAN R70L RS232 GPS Receiver 12V Marine NMEA0183 GPS 4800 Baud 12V 24V Wide Voltage The R70L is an GPS receiver solution for small boats.It operates on a 12V or 24V DC power supply and begins receiving GPS data immediately upon connection, outputting NMEA 0183 format data at a default baud rate of 4800 bps.The NMEA messages transmitted include GGA, RMC, VTG, GSV, GSA, and GLL.Custom configuration can be performed using u-center software on a PC.Specifications: Chipset: UBX NEO-7N Supported Frequency: GPS L1/WAAS, SBAS L1, QZSS L1 Configuration: Default GPS + SBAS + QZSS Channels: 56 searching channels Horizontal Accuracy: 2.0m CEP with SBAS enabled (typical open ) Time Synchronization: 1us synchronized to GPS time Speed Accuracy: 0.05m/sec at 95% probability (SA off) Tracking Sensitivity: -167dBm Reacquisition Sensitivity: -160dBm Cold Start Sensitivity: -148dBm Cold Start Time: 26s Warm Start Time: 2s Hot Start Time: 1s Baud Rate Support: 4800bps to 921600bps, default 4800bps Data Level: RS232 Data Protocol: NMEA0183 NMEA Messages: GGA, RMC, VTG, GSV, GSA, GLL Update Rate: Up to 10Hz, default 1Hz Flash Memory: 4M Flash Maximum Altitude: <50000m Maximum Velocity: <515m/s Maximum Acceleration: <4G Operating Voltage: 7-28V, typical 12.0V Current Consumption: 20mA at 12V Dimensions: Diameter 10.5cm, Height 16cm Weight: 400g Length: 5 meters Operating Temperature: -45°C to +85°C Storage Temperature: -45°C to +85°C Waterproof Rating: IP67 Pin Definition: Wiring Diagram: GPS Tracking Test via u-center GPS should be placed open and parallel to the horizontal plane Note: In the default configuration, NMEA-GSV messages are sent at 4-second intervals to prevent TX buffer overflow.
- Model R70L RS232 GPS Receiver designed for marine navigation and vessel tracking applications
- Compatible with NMEA0183 protocol operating at 4800 baud rate for data transmission
- Supports wide voltage input range of 12V to 24V making it suitable for various marine electrical systems
- Equipped with RS232 interface integration with marine displays and control units
- Ideal for use in boats, ships, and maritime requiring accurate GPS positioning and time synchronization
| Brand | QSmtdkAMa |
|---|---|
| Map Types | Road Map |
| Model Name | QSmtdkAMa823 |
| Screen Size | 3 Inches |
| Display Type | LCD |
| Manufacturer | QSmtdkAMa |
| BuiltIn Media | Parts set |
| Additional Features | Corrosion Resistant |
| Are Batteries Included | No |
| Connectivity Technology | Bluetooth |
