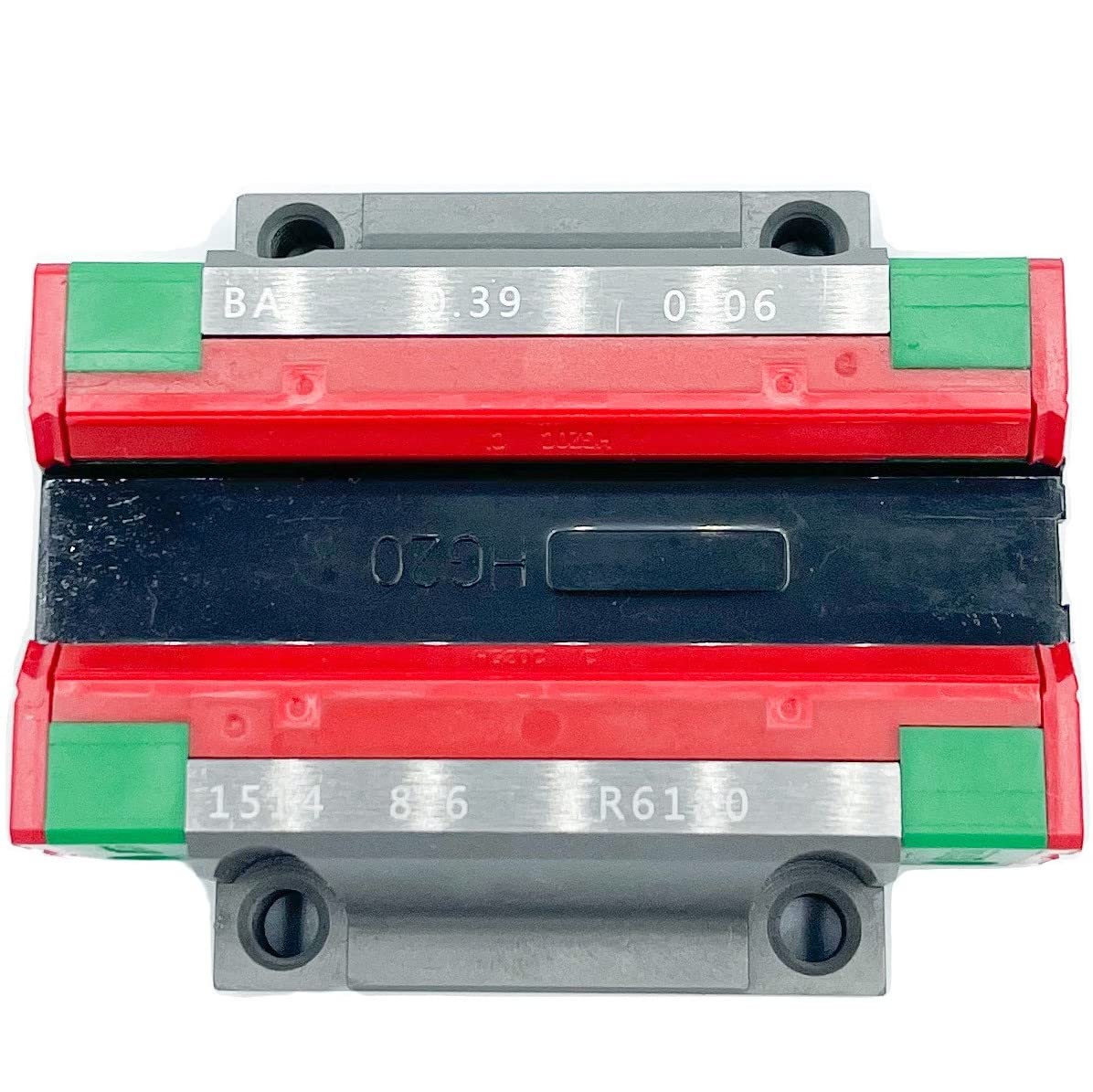

Genuine HIWIN HGW20CC Linear Guideway

HGW-20-CC-Z0-C: Series: HG Series; Block Type: W (Flange Type); Model Size: 20; Load Type: C (Heavy Load); Block Mounting Type: C (Mounting from Top or Bottom); Preload Code: Z0 (Light Preload); Precision Code: C (Normal)

• [HGW-20-CC-Z0-C] Series: HG Series; Block Type: W (Flange Type); Model Size: 20; Load Type: C (Heavy Load); Block Mounting Type: C (Mounting from Top or Bottom); Preload Code: Z0 (Light Preload); Precision Code: C (Normal)
• [Self-aligning capability] By design, the circular-arc groove has contact points at 45 degrees. HG series can absorb most installation errors due to surface irregularities and provide smooth linear motion through the elastic deformation of rolling elements and the shift of contact points. Self-aligning capability, high accuracy and smooth operation can be obtained with an easy installation.
• [Interchangeability] Because of precision dimensional control, the dimensional tolerance of HG series can be kept in a reasonable range, which means that any blocks and any rails in a specific series can be used together while maintaining dimensional tolerance. And a retainer is added to prevent the balls from falling out when the blocks are removed from the rail.
• [High rigidity in all four directions] Because of the four-row design, the HG series linear guideway has equal load ratings in the radial, reverse radial and lateral directions. Furthermore, the circular-arc groove provides a wide-contact width between the balls and the groove raceway allowing large permissible loads and high rigidity.
