Generator Interlock Kit for Horizontal Main Cutler Hammer CH Series 150 or 200 amp Panels, Generator Horizontal Electrical Interlock Kit, 1 1/2 Spacing Between Main and Branch Breaker(1set)

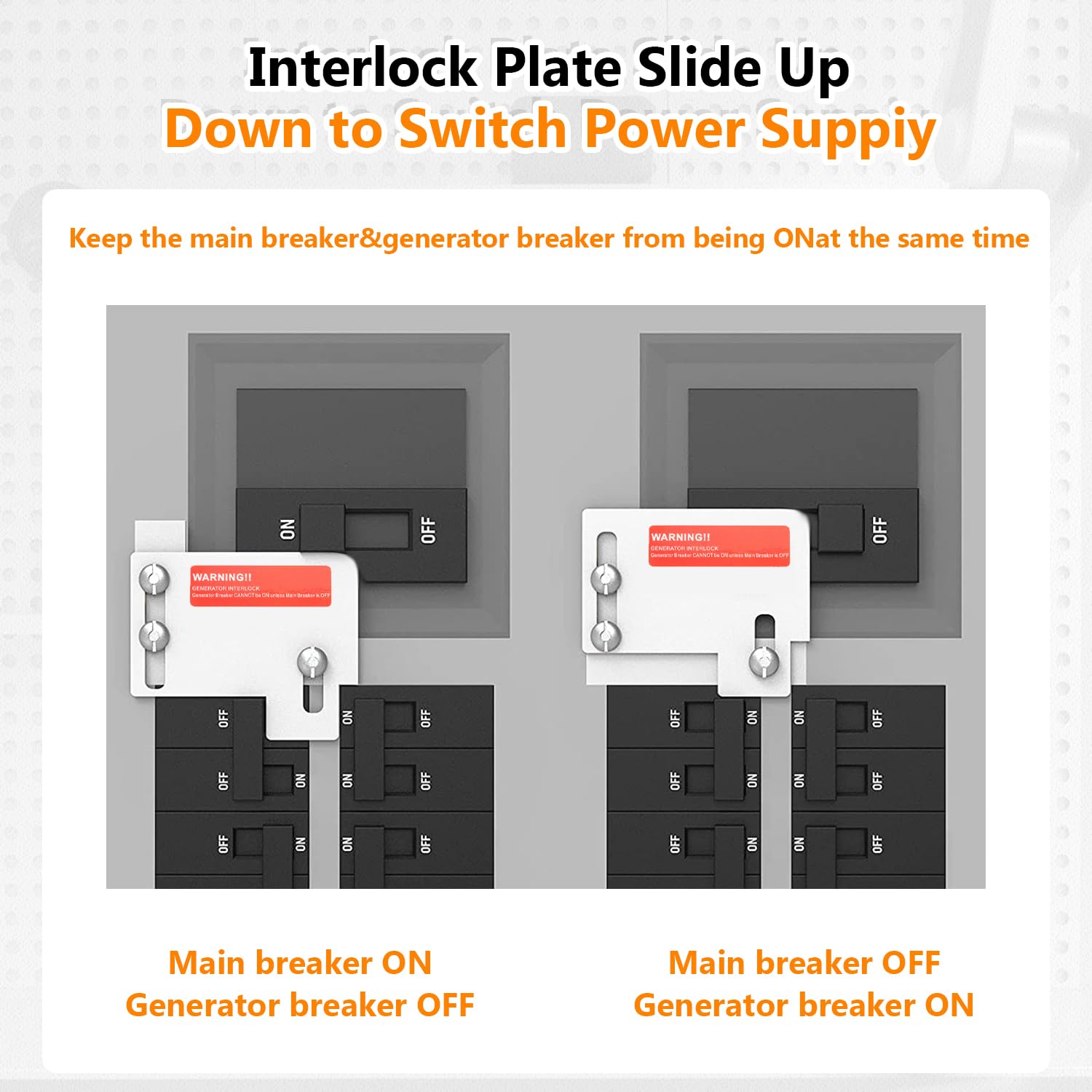

HUAREW 1 1/2 inch EAT-CH200A Generator Interlock Kit Safety Generator Interlock kit: The generator interlock kit consist of two metal plate and interlock together by three bolts. When move down, the plate stop the generator back feed circuit breaker and allows the main breaker to remain on. When move up, the generator back feed circuit breaker may be turned on but the main circuit breaker is blocked and will remain off. This kit avoids the inconveniences that an unexpected power outage can cause. It is used to direct generator power to any circuit within your home safely. Instructions: 1. Power Off Power off and then use the pen to mark holes through the bottom plate's holes. 2. Drill Holes Remove the panel cover from the breaker panel and drill the three holes marked on the panel cover using the supplied 3/16'' drill bit. 3. Install Interlock Insert the screws from rear of cover, install the bottom plate and top plate on the front cover of the breaker panel. Please make sure that the top plate can be pulled freely (enough space). 4. Test The Lock The inter lock has been properly installed. Lastly, apply all labels on electric panel. Package Include: 1 x Drill Bit 3 x Screws 3 x Nuts 3 x Remind Label 2 x Zip Ties 1 x Use instructions

• Compatible Models: Generator Interlock Kit fits for CH series ONLY 150 and 200 amp panels with TAN breakers where the area of main breaker is depressed. Apply to 1-1/2 inches interval spacing between main and generator branch breaker, other same space panels may fit. Before buying, you need to make sure the model and spacing are correct.
• Durability: Built-in high quality chemical resistant and thickness solid aluminum alloy Interlock switch plates, Very durable for long term use. The interlock switch has been treated with surface anodized gives it better electrical insulation and thermal insulation, ensuring your safety in electricity.
• Application scenarios: This kit avoids the inconveniences that an unexpected power outage can cause. Generator lockout kit "Lock position" by sliding the lock plate up and down, easy to switch generator/solar power from utility or connect with a generator to power up all of your home electrical appliances, clearly indicating what you are running when protecting your generator. Stay away from darkness and coldness when power off.
• Ease of installation: No need extra control box or wiring. Easy to install with the templates provided, It installs easily and the instructions are clear. The generator interlock kit offers drill bit, sturdy steel that goes through breaker panel easily.
• Product includes: 1 interlocking panel, 1 matching drill bit, 3 screws, 3 nuts, 3 reminder labels, 2 Zip Ties, and 1 x Instruction.
