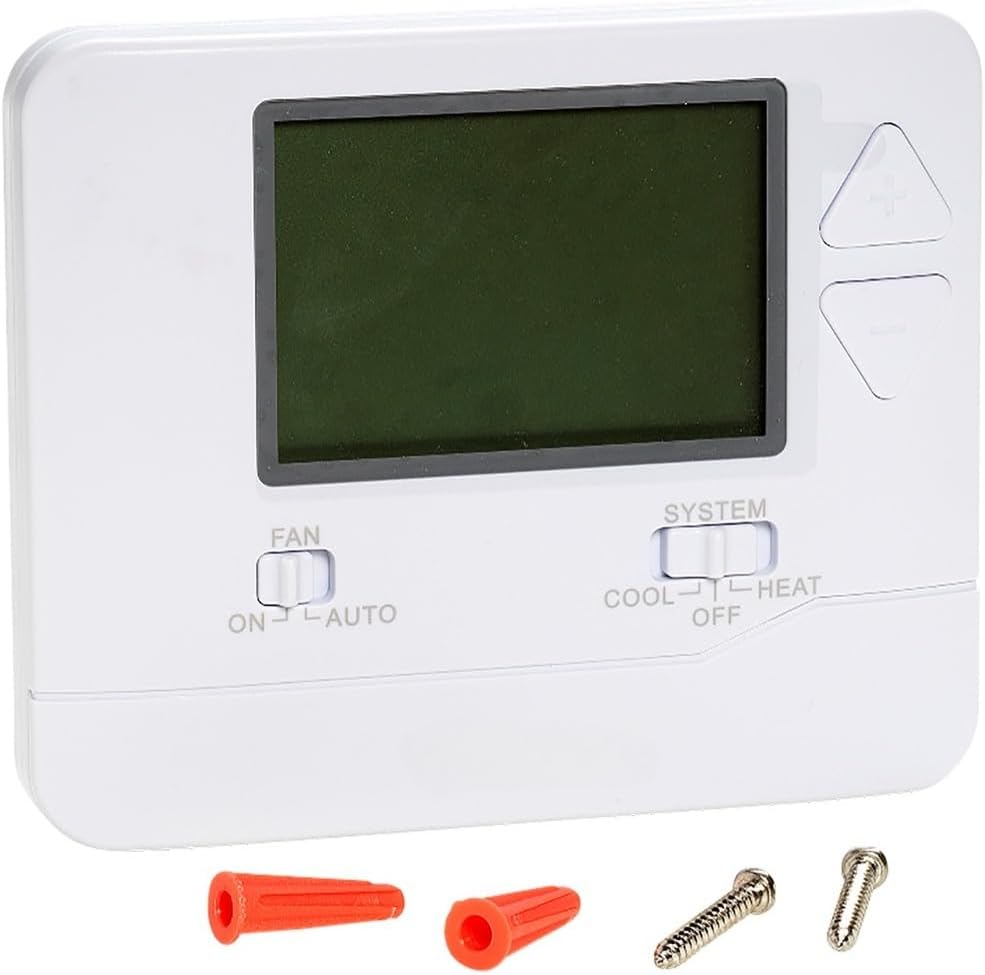

for Robertshaw Programmable Single Stage 1H/1C 7 Day Wall Thermostat RS9110
Product details
| Management number | 218691020 | Release Date | 2026/05/03 | List Price | $41.00 | Model Number | 218691020 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
For Robertshaw part number RS9110. Programmable Wall Thermostat. 7 Day, 5-1-1 or Non-Programmable. Single Stage - 1 Heat / 1 Cool. The RS9110 programmable wall thermostat offers an easy, yet powerful and reliable single-stage heating and cooling control in a simple, modern design. Factory pre-set energy efficiency program Simple, yet powerful control. Large, easy-to-read 4.6-square-inch blue backlit display Easy-access front-load battery compartment Adjustable temperature differential (swing) for energy optimization and maximum system life Adjustable room temperature calibration Adjustable setpoint limits Five-minute selectable on/off compressor delay protection for short-cycling prevention Separate O and B terminals Filter change reminder Specifications Dimensions (W x H x D): 4.7 x 3.8 x 1 in. (119.6 x 97.6 x 26 mm) Mounting: Wall or junction box System compatibility: Single-stage heating and cooling System fuel source: Gas, electric or oil Heat pump compatibility: Systems with auxiliary or emergency heat Millivolt application-compatible: Yes Temperature range: 41 to 95 degrees F (5 to 35 C) Control temperature range: 44 to 90 degrees F (7 to 32 C) Display accuracy: +/- 1 degree C (at 20 C) / +/- 1 degree F (at 68 F) Power sources: 24V AC (18 to 30V AC), 50/60 Hz for hardwire (common wire required) or 2 AAA 1.5V alkaline batteries (included) Terminals: Rh, Rc, C, Y, W, G, O, B Replacement Information For Pro1: T705 For Honeywell: TH6110D1021, TH4110U2005, TH2110DH1002, TH2110DV1008, TH4110D1007, TH6110D1005 For Braeburn: 2020, 2020NC, 2000NC For Emerson White-Rodgers: 1F83H-21NP For Aprilaire: 1F83C-11PR, 8463
- For Robertshaw part number RS9110. Programmable Wall Thermostat. 7 Day, 5-1-1 or Non-Programmable. Single Stage - 1 Heat / 1 Cool. The RS9110 programmable wall thermostat offers an easy, yet powerful and reliable single-stage heating and cooling control in a simple, modern design.
- Large terminal blocks for easy installation Universal sub-base Quick-access menu button Contractor/technician setup menu Easy-to-understand programming menus Intuitive wake, leave, return, sleep programming icons 24V AC Powered OR Battery Operation (Included)
- Factory pre-set energy efficiency program Simple, yet powerful control. Large, easy-to-read 4.6-square-inch blue backlit display Easy-access front-load battery compartment Adjustable temperature differential (swing) for energy optimization and maximum system life Adjustable room temperature calibration Adjustable setpoint limits Five-minute selectable on/off compressor delay protection for short-cycling prevention Separate O and B terminals Filter change reminder
- Dimensions (W x H x D): 4.7 x 3.8 x 1 in. (119.6 x 97.6 x 26 mm) Mounting: Wall or junction box System compatibility: Single-stage heating and cooling System fuel source: Gas, electric or oil Heat pump compatibility: Systems with auxiliary or emergency heat Millivolt application-compatible: Yes Temperature range: 41 to 95 degrees F (5 to 35 C) Control temperature range: 44 to 90 degrees F (7 to 32 C) Display accuracy: +/- 1 degree C (at 20 C) / +/- 1 degree F (at 68 F) Power sources: 24V AC (18 to 30V AC), 50/60 Hz for hardwire (common wire required) or 2 AAA 1.5V alkaline batteries (included) Terminals: Rh, Rc, C, Y, W, G, O, B
- For Pro1: T705 For Honeywell: TH6110D1021, TH4110U2005, TH2110DH1002, TH2110DV1008, TH4110D1007, TH6110D1005 For Braeburn: 2020, 2020NC, 2000NC For Emerson White-Rodgers: 1F83H-21NP For Aprilaire: 1F83C-11PR, 8463
- Product Type:Wall Thermostat
| Color | Black |
|---|---|
| Shape | Rectangular |
| Voltage | 120 Volts |
| Brand Name | YXZZZZ |
| Model Name | Wall Thermostat |
| Unit Count | 1.0 Count |
| Item Weight | 0.45 Pounds |
| Control Type | Touchpad Control |
| Display Type | LED |
| Finish Types | Standard D. Grey |
| Manufacturer | YXZZZZ |
| Model Number | RS9110 |
| Material Type | Plastic |
| Mounting Type | Wall Mount |
| Product Style | D. Grey - Wi-Fi Thermostat |
| Control Method | Voice |
| Controller Type | Touch Screen, Voice |
| Additional Features | Customizable color touchscreen, Smart Response Technology, Energy Star certified |
| Included Components | Mounting Hardware, Thermostat, Thermostat ID Card, User Manual, Wire Labels |
| Connectivity Protocol | Wi-Fi |
| Connectivity Technology | Wi-Fi |
| Temperature Control Type | Heating and Cooling |
| Item Dimensions D x W x H | 0.88"D x 4.5"W x 3.5"H |
| Specific Uses For Product | Furnace |
