Fiber Converter - Extender Set for HD 1080p & 2560x1920 (AHD | TVI | CVI | CVBS - 4-in-1) Video CCTV Over Fiber - Single & MultiMode - 1 km MM (0.62 mi) 20 km SM (11.42 mi) Transmitter & Receiver 5MPx
Product details
| Management number | 215133774 | Release Date | 2026/04/12 | List Price | $66.80 | Model Number | 215133774 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

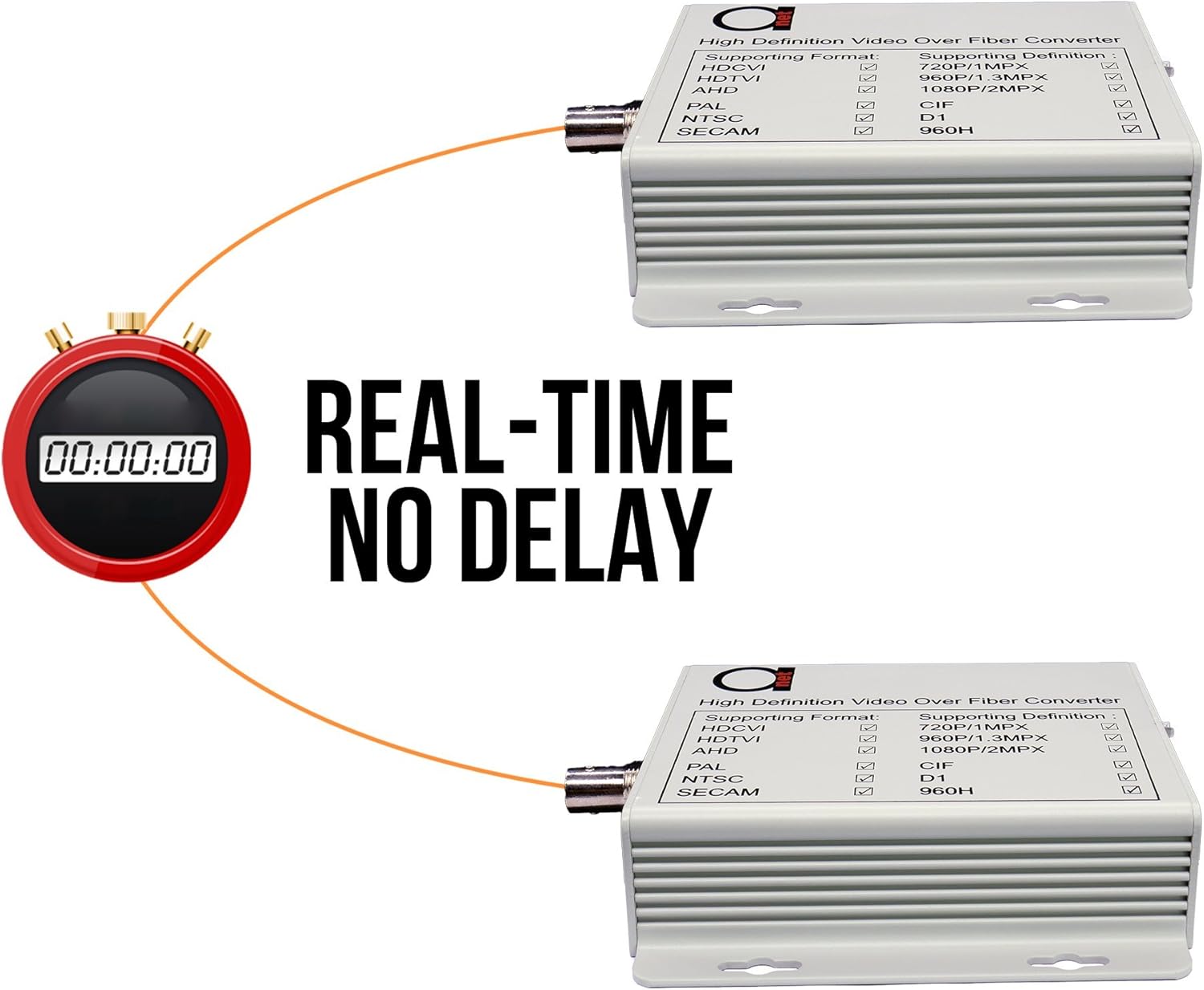

Looking for a device to extend your AHD / HD-TVI / HD-CVI, PAL, NTSC and SECAM CCTV camera systems over an optic fiber? Then look no further - ADnet’s AN-AHDCT1001 series Fiber (Converter) extender set offer easy, affordable and Plug-n-Play solution for extending HD AHD TVI CVI CVBS 960H NTSC SECAM based cameras signal over distances up to 1 km (0.62 miles) using Multimode Fiber, and up to 20 (11.42 miles) km using Single Mode type fiber. Simply plug in fiber optic cable using SC connectors at one side, and BNC connectors to your camera at Transmitter side and DVR or Monitor at Rx side, and units will be up and working immediately.Since signal is directly sent over the fiber, there is no any delay to video signal introduced at all - you'll have real, live signal transmission at receiver side. In doubt will they work with your particular camera? Contact us at any time & send us your camera model name and specifications for free consulting! IMPORTANT!: Converters DO NOT support so called UTC technology (Up The Coax, meaning that Video + PTZ Data signal is sent over same BNC port) for PTZ!. Use for Video ONLY IMPORTANT!: Maximum supported resolution for this model is up to 5 MPx , 1080p & 2560x1920 !Specifications:Transmission Wavelength: 1310 nmFiber Type: 50/125u multi-mode, 62.5/125u multi-mode，9/125u single mode Optical Port Type: SC Dimensions: 12.40cm x 10.50cm x 2.90cm / 4.88in x 4.13in x 1.14in Input Power: 5VDC - 100 - 240 AC Universal Adapter Comes In Set Video Input Connector: BNC Operating Temperature: -10℃～+60℃
- Universal for Fiber Types: Same converter (extender) supports Multimode Fiber with distance 1 km (0.62 miles) and Single Mode Fiber with distance up to 20 km (11.42 miles), wavelength 1300/1310 nm, dual fiber. (HDTVI, HDTVI, HDAHD, No Loss, No Delay Fiber Optic Transmission)
- Universal Standards Supported: HD AHD TVI CVI CVBS 960H NTSC SECAM- All-in-One device;
- Maximum Camera Pixel Resolution up to 5 Mpx, (1.3MPx 2 MPx 3MPx 4MPx all supported as well) HD 1080p & 2560 x 1920 (960p / 720p also supported) and backwards compatible with CIF,D1 and 960H
- Full Set Includes Transmitter, Receiver & AC Power Supply, User Manual, Operating Temperature from -10℃ to 60℃;
- Plug & Play and Simple to Install - No Setup or Configuration is needed, SC connector for Fiber Optical Port, BNC connector for Video Port.
| Brand | ADnet |
|---|---|
| Voltage | 5 Volts (DC) |
| Model Name | AN-AHDCT1001 |
| Unit Count | 1 Count |
| Manufacturer | AD-net Technology., CO LTD |
| Power Source | AC adapter |
| Mounting Type | Wall Mount or Desktop |
| Control Method | Touch |
| Outer Material | Fiber optic cable |
| Includes Remote | No |
| Number of Ports | 1 |
| Bluetooth support | No |
| Installation Type | self-installation |
| Compatible Devices | Monitor |
| Number of Channels | 1 |
| Supported Standards | HD AHD, HD-TVI, HD-CVI, NTSC, and SECAM |
| Wireless Compability | 802.11ac |
| Compatibility Options | [Monitor] |
| Supported Application | CCTV Monitoring Software, CCTV Recording Systems |
| Connectivity Technology | Coaxial |
| Item Dimensions L x W x H | 4.88"L x 4.88"W x 1.14"H |
| Connector Type Used on Cable | Coaxial |
| Rechargeable Battery Included | No |
