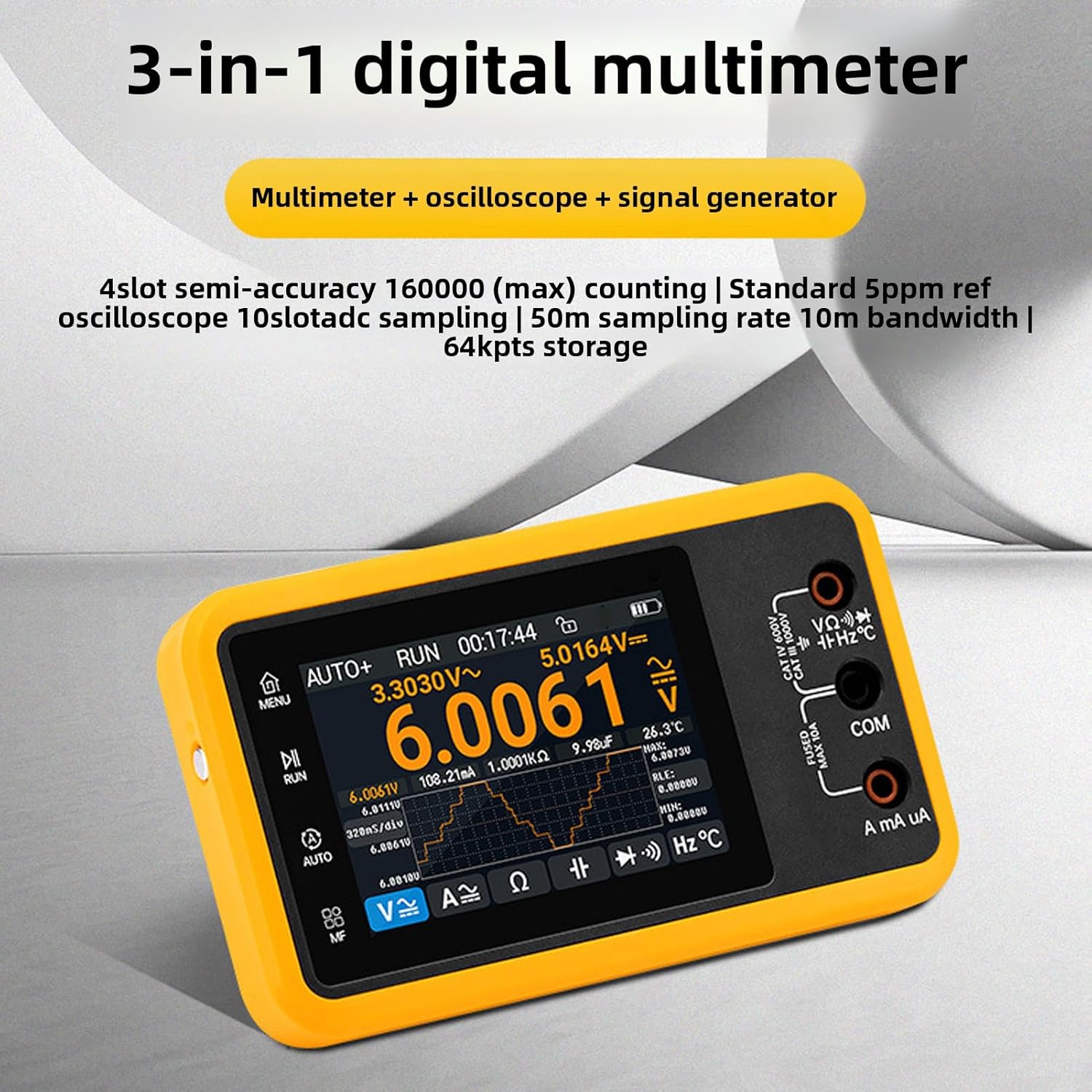

Eujgoov 3 in 1 Digital Multimeter + Oscilloscope + Signal Generator, DM40C 10Hz-60MHz 4.5 Bit Screen for USB Communication Safety Testing

Specification: Item Type: 3 in 1 Multimeter Material: Approx. ABS Battery: 1 x Rechargeable Li Battery 2000mAh (built in) Screen: Full Touch 3.5 Inch Screen (480x320) DC Voltage: 600mV/6V/60V/600V/1000V AC Voltage: 600mV/6V/60V/600V/750V DC Current: 600uA/6000uA/60mA/600mA/6A/10A AC Current: 600uA/6000uA/60mA/600mA/6A/10A Resistive Value: 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ Capacitance: 6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF Frequency: 10Hz-60MHz Temperature: -40℃-1000℃, -40℉-1832℉ (Standard Probe Temperature Range: -20℃-300℃) Continuity: 0Ω-1KΩ Diode: 0V-3.0V, 0-1KΩ Oscilloscope: Sampling Rate: 50MSa/S Analog Bandwidth: 10MHz Storage Depth: 64Kpts Time Base Range: 100ns-50s Vertical Sensitivity: 10mV-10V/div (X1) Vertical Resolution: 10bit Input Impedance: 1ΜΩ Time Base Mode: YT/ROLL Trigger Mode: Auto/Normal/Single Trigger Type: Rising/Falling Pulse Width: OFF/Min/1S/Infinite Math Function: FFT/ABS Signal Generator: Output Waveform: Sine Wave, Sawtooth Wave, Triangular Wave Waveform Frequency: 1Hz-50KHz Amplitude: 0.5V-3.0Vpp How to Use: Take out the product and use it directly. PackageList: 1 x Oscilloscope 1 x User Manual 1 x USB Cable 1 Pair Test Pens

• Multimeter Functions: The digital multimeter provides DC AC voltage, current, resistive value, capacitance, frequency, temperature, continuity, and diode measurement, making it suitable for various electrical applications
• Oscilloscope Functions: The oscilloscope has a sampling rate of 50MSa/S, an analog bandwidth of 10MHz, and a storage depth of 64Kpts. Supports auto, normal, and single trigger modes, as well as FFT ABS math functions
• Touch Screen and Battery: This 3 in 1 digital multimeter is equipped with a 3.5 inch full touch screen, rich in colors, and clear in display; Built in 2000mAh rechargeable li battery, providing long lasting endurance, convenient to use
• 3 in 1 Design: This multifunctional device combines the functions of a digital multimeter, oscilloscope, and signal generator, with 4-1/2 digit accuracy, maximum 160000 counts, 10 bit ADC sampling, convenient and practical
• Signal Generator: This handheld signal generator supports sine wave, sawtooth wave, triangular wave output waveforms, 1Hz-50KHz wave frequency, and 0.5V-3.0Vpp amplitude, making it suitable for more scenarios
