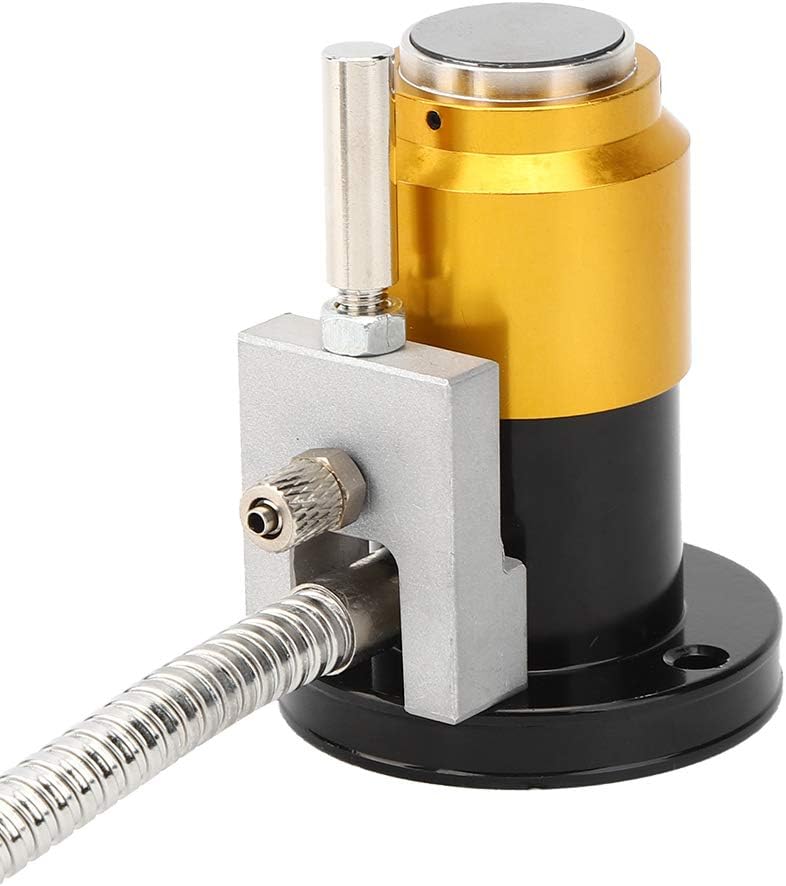

Engraving Machine Accessories Super Hard Alloy Automatic Tool Sensor Oilproof Wire Tools Setter MAHC3 for Engraving Machine Accessories (Normally open)

1. [SUPER HARD ALLOY MATERIAL] ensures durability and a long service life 2. [ AND OILPROOF DESIGN] allows for use in various environments 3. [IMPROVE MACHINE EFFICIENCY] with 8mm stroke and 3 million times service life 4. [EASY TO USE] NC normally closed type for convenient tool setting 5. [HIGHLY ACCURATE] with repeat accuracy of 0.002 at operating speed 50-200mm/min Specification: Item Type: Automatic Tool Sensor Test Speed: 50-200mm/min Service Life: 3 million times Maximum Diameter: Approx. 0.5mm / 0.02in /20mm / 0.79in Total Height: Approx. 65mm / 2.6in Total Stroke: Approx. 8mm / 0.3in Default Form: NC normally closed type/NO normally open type Voltage Range: 10-30V DC Rated Voltage: DC24V±10%, 20mA (maximum) Blowing Function: Yes Whether To Bring The Indicator Light: Yes (open when normally closed) Protection Level: IP67 x 100% , oil-proof sealing performance Optional Output Mode: NO/NC Itinerary: 5 Repeat Accuracy: 0.002 (Condition: Operating speed 50-200mm/min) Protection Structure: IP67 Contact Force: 1.5N (the installation state must be vertical) Tool Surface Material: Super hard alloy Surface Treatment: Mirror polishing 4S Contact Rating: DC24V 20mA (maximum) recommended value 10mA resistance load Cable Specifications: Standard 1.8m oil Cable Sheath: Approx.8mm / 0.3in 304 stainless steel Output Mode: B: NC (emergency stop when the signal is disconnected) Contact Voltage: DC24V 20mA resistance load (in special cases, load and current limit must be added) Scope of Application: Mainly used in engraving machine packing list: 1 x Automatic Tool Sensor 1 x Accessories

• [SUPER HARD ALLOY MATERIAL] ensures durability and a long service life
• [ AND OILPROOF DESIGN] allows for use in various environments
• [IMPROVE MACHINE EFFICIENCY] with 8mm stroke and 3 million times service life
• [EASY TO USE] NC normally closed type for convenient tool setting
• [HIGHLY ACCURATE] with repeat accuracy of 0.002 at operating speed 50-200mm/min
