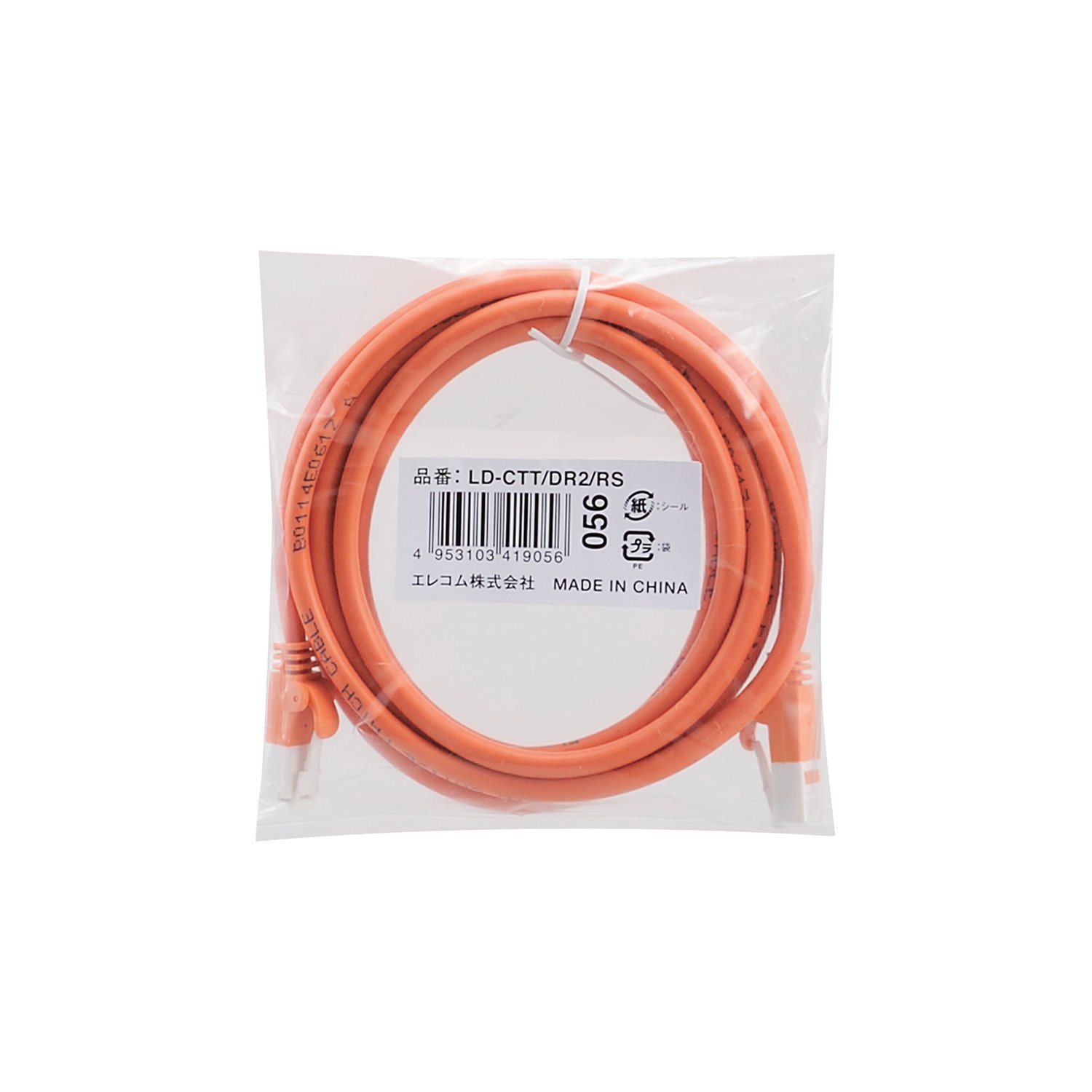

Elecom LD-CTT/DR2/RS LAN Cable, 6.6 ft (2 m) CAT5e, No Cracks, RoHS Compliant, Orange

Specifications: ■Color: Orange ■Interface: RJ-45 connector ■Environmental Consideration: EU RoHS Compliant (10 substances) ■Standards: Cat5e compliant (10BASE-T/100BASE-TX/1000BASE-T compatible) ■Transmission speed: 1Gbps ■ Transmission band: 100MHz ■ Cable Length: Approx. 6.6 ft (2 m) *Connector not included ■ Cable Thickness: Approx. 5.35mm ■Number of cores: 8 cores ■Wiring Method: Straight wire ■ Yori cores (twisted pair cable): Yes. ■Shielding: No (UTP specification) ■Cross materials: x ■ External Sheath (coating) Material: PVC ■ With Length Mark: x ■ Conductor Composition: Iron wire (24AWG) ■ Connector Included: With connector on both ends ■Molded Connector: Yes ■Slim Connector: Yes. ■Connector with nail breakage prevention cover: Yes. - Cable winding function: x ■Package form: Polybag (Eco-friendly type) ■ Nail-resistant connector: Yes. ■PoE:Yes 【Description】 ■ Cat5e compliant LAN cable standard type. ■ The LAN cable is made with a double structure with anti-claws protectors and connectors made of highly durable material to prevent cracking. Pass 1000 bending tests (verified by our company). ■ Prevents cable from falling out due to claws and securely fastens to LAN port for a long time. ■Stable data transfer is possible in 100BASE-TX and 1000BASE-T environments. ■ Because it has no cross interruption, it is soft and easy to maneuver, and it is easy to set up in narrow spaces. ■ Uses a slim connector that can be connected without interfering with adjacent ports. ■ It has flame retardant that passes 60 degree tilt test (JIS C 3005). ■ Environmentally friendly product complies with the EU "RoHS Directive (restriction on use of harmful substances on electrical and electronics) ■ The packaging container of the product is made up of only paper, cardboard and polybag. Product inquiries Elecom General Information Center TEL. 0570-084-465 FAX. 0570-050-012 Reception Time / 10:00 - 19:00 24/7

• This is a standard Cat5e compliant LAN cable that allows stable communication in 100BASE-TX and 1000BASE-T environments. The double construction of the protector and heavy duty connectors makes the LAN cable less likely to break. Pass 1000 bending tests (verified by our company)
• Cat5e compliant LAN cable standard type
• The LAN cable is made with a double structure that is resistant to cracking and has connectors made of highly durable material that is resistant to bending. Pass 1000 bending tests (verified by our company)
• Prevents cables from falling out due to claws and securely fastens to LAN ports for a long time
• Stable data transfer in 100BASE-TX and 1000BASE-T environments
• Since it is made with a glue wire that eliminates cross interruption, it is soft and easy to maneuver, and it is easy to set up in narrow spaces
• It adopts a slim connector that can be connected without interfering with adjacent ports
• Flame retardant passes 60 degree tilt test (JIS C 3005)
• Environmentally friendly with EU "RoHS Directive (10 Substances)
