EKWB EK-Quantum Surface S360 Radiator, Triple, Black, 2-Pack
Product details
| Management number | 216094667 | Release Date | 2026/04/19 | List Price | $128.00 | Model Number | 216094667 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

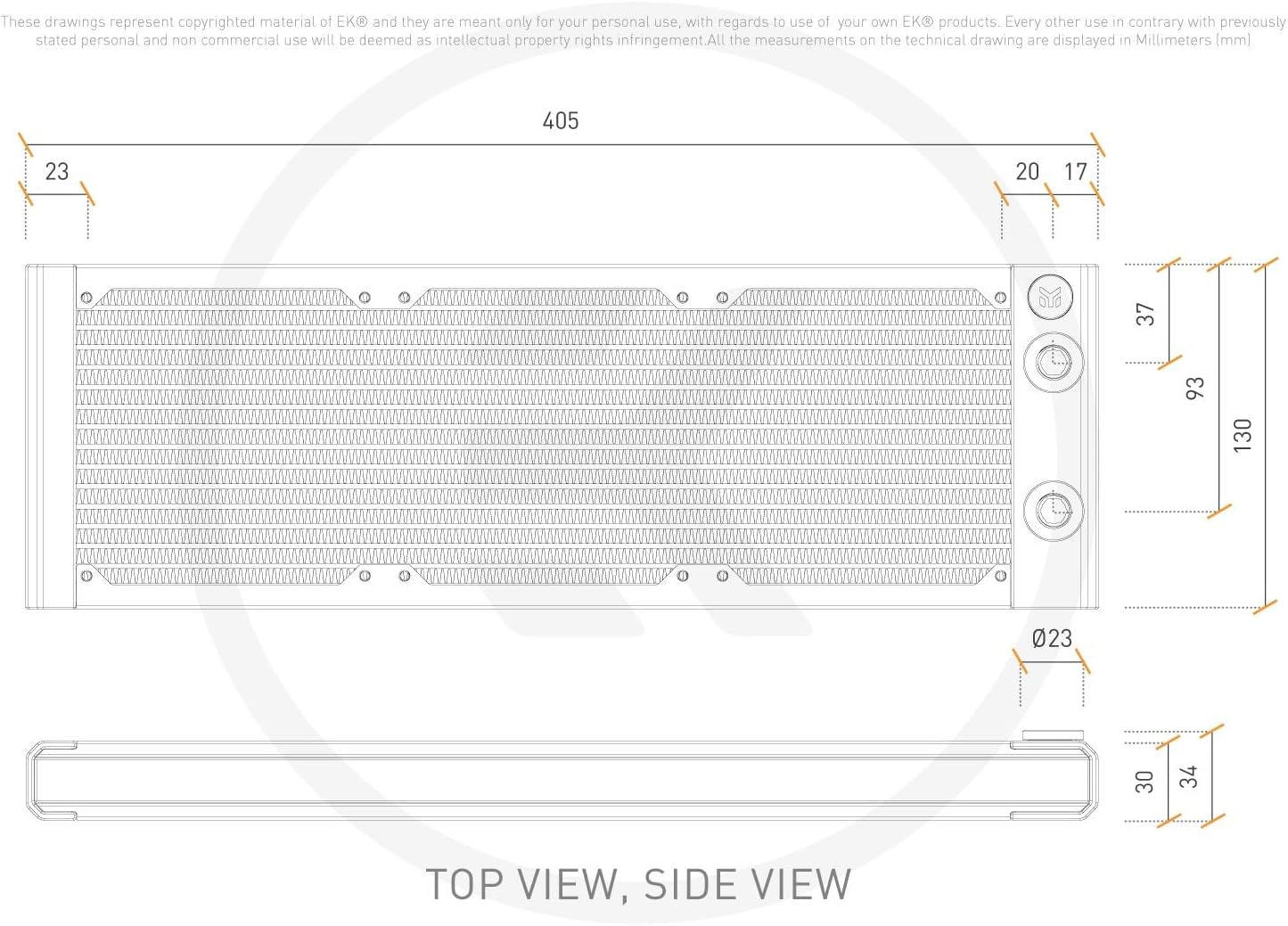

With a thickness of only 30mm, the EK-Quantum S Series Surface radiators are ideal for space-constrained cases. Despite the reduced thickness, they deliver exceptional performance at very low and medium fan speeds. A total of 16 copper 2mm wide tubes across the entire length of the radiator assure optimal coolant flow putting no stress on your cooling loop. High-grade non-louvered copper fins with 20 FPI density provide the best balance between thermal transfer and air resistance for optimal performance even at low-speed fan operation. A Push/Pull setup on an S Series EK-Quantum Surface radiator is not something EK would recommend since it will not bring a proportional performance increase. If more cooling power is needed, adding additional radiators is the way to go. Technical and Material Specifications: - High-grade 99.9% copper fins - Copper H90 tubing - Brass H62 end tank chambers - Stainless Steel side plates - Extruded Aluminum Silver anodized end piece covers - Brass nickel-plated extenders and plugs Dimensions: 405 x 130 x 30mm (L x W x H) Weight: 0.95kg FPI: 20 Port threads: 2x G1/4" Fan compatibility: 120x120x25mm fan Pressure tested: 1bar Enclosed: - EK-Quantum Surface S series radiator - 12x Phillips Slotted M4x30mm for 25mm thick fans - 12x Phillips Slotted M4x5mm for mounting the radiator directly to the case - 6mm steel Allen (Hex) key - 9mm steel Allen (Hex) key Model: 3831109838198-2P
- With a thickness of only 30mm, the eK-Quantum S Series Surface radiators are ideal for space-constrained cases.
- Despite the reduced thickness, they deliver exceptional performance at very low and medium fan speeds.
- A total of sixteen copper 2mm wide tubes across the entire length of the radiator assure optimal coolant flow putting no stress on your cooling loop.
- High-grade non-louvered copper fins with 20 FPI density provide the best balance between thermal transfer and air resistance.
- The Quantum Surface line is made to be modular and easily disassembled.
| Brand Name | EK |
|---|---|
| Manufacturer | EKWB |
| Mounting Type | Chassis Mount |
| Warranty Description | One year manufacturer |
| Cooler Heatsink Material | Copper |
| Item Dimensions L x W x H | 15.94"L x 5.12"W x 1.18"H |
| Cooler Heatsink Compatibility | 120mm fan mount, G1/4 thread fittings |
