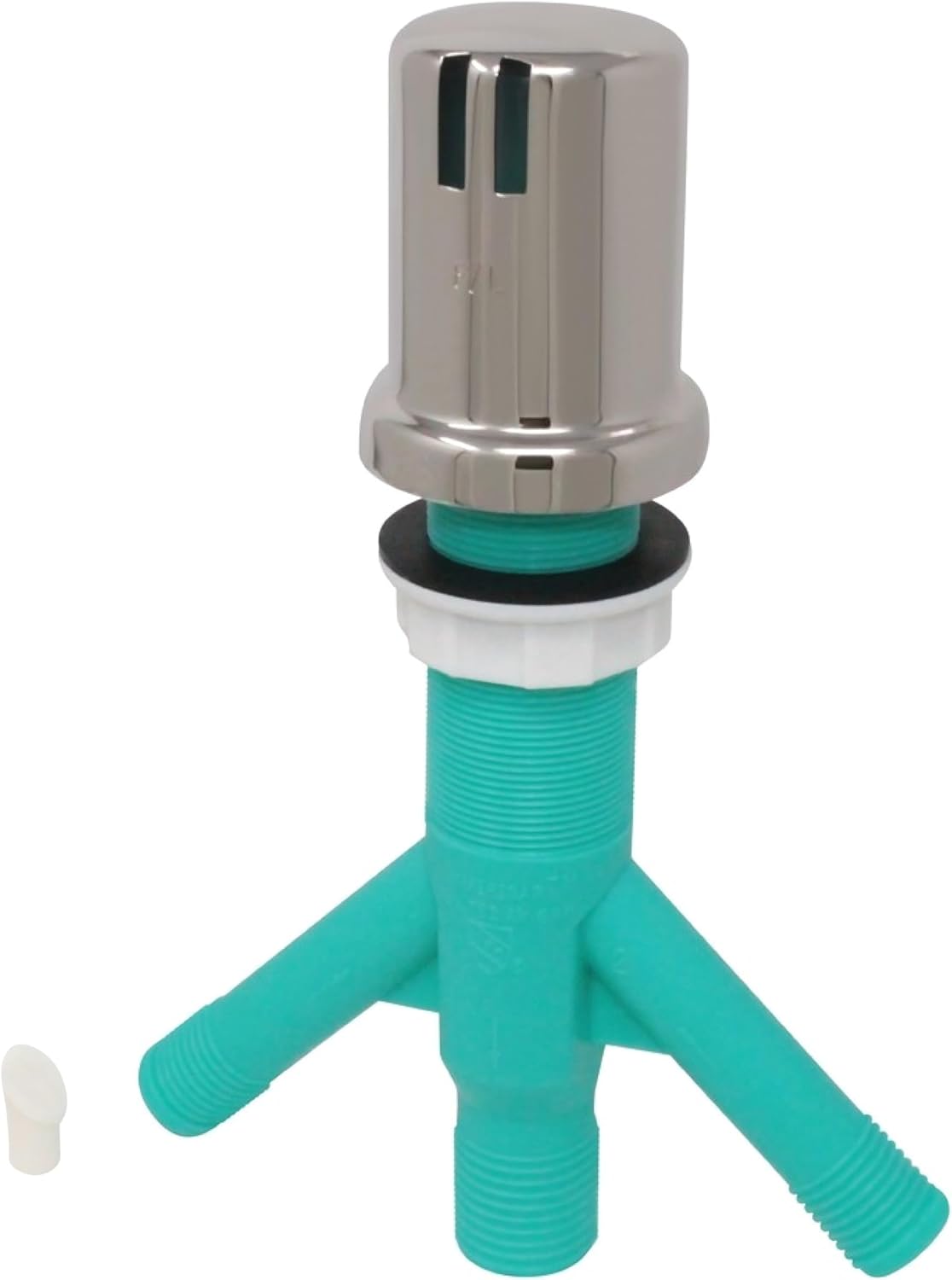

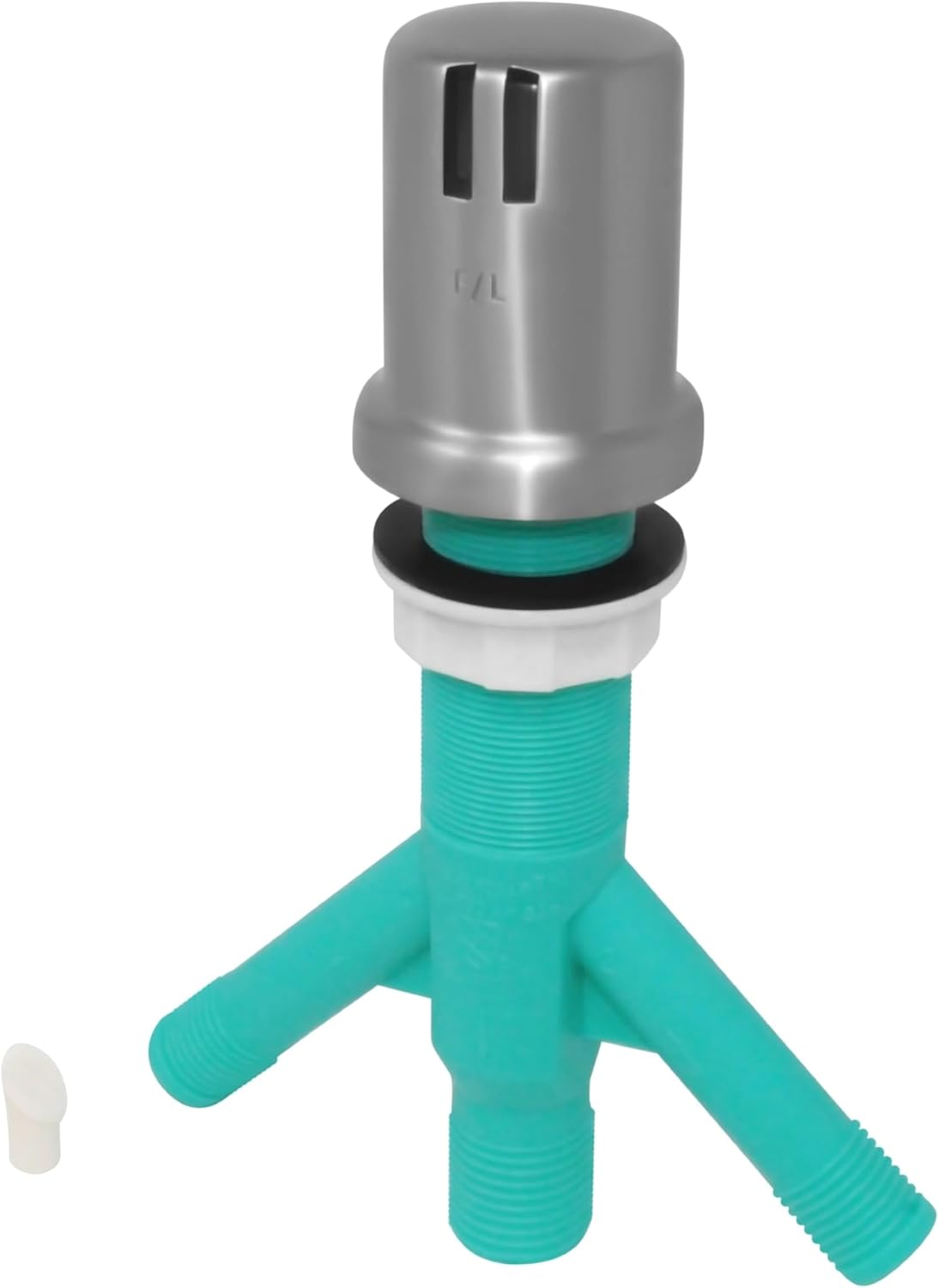

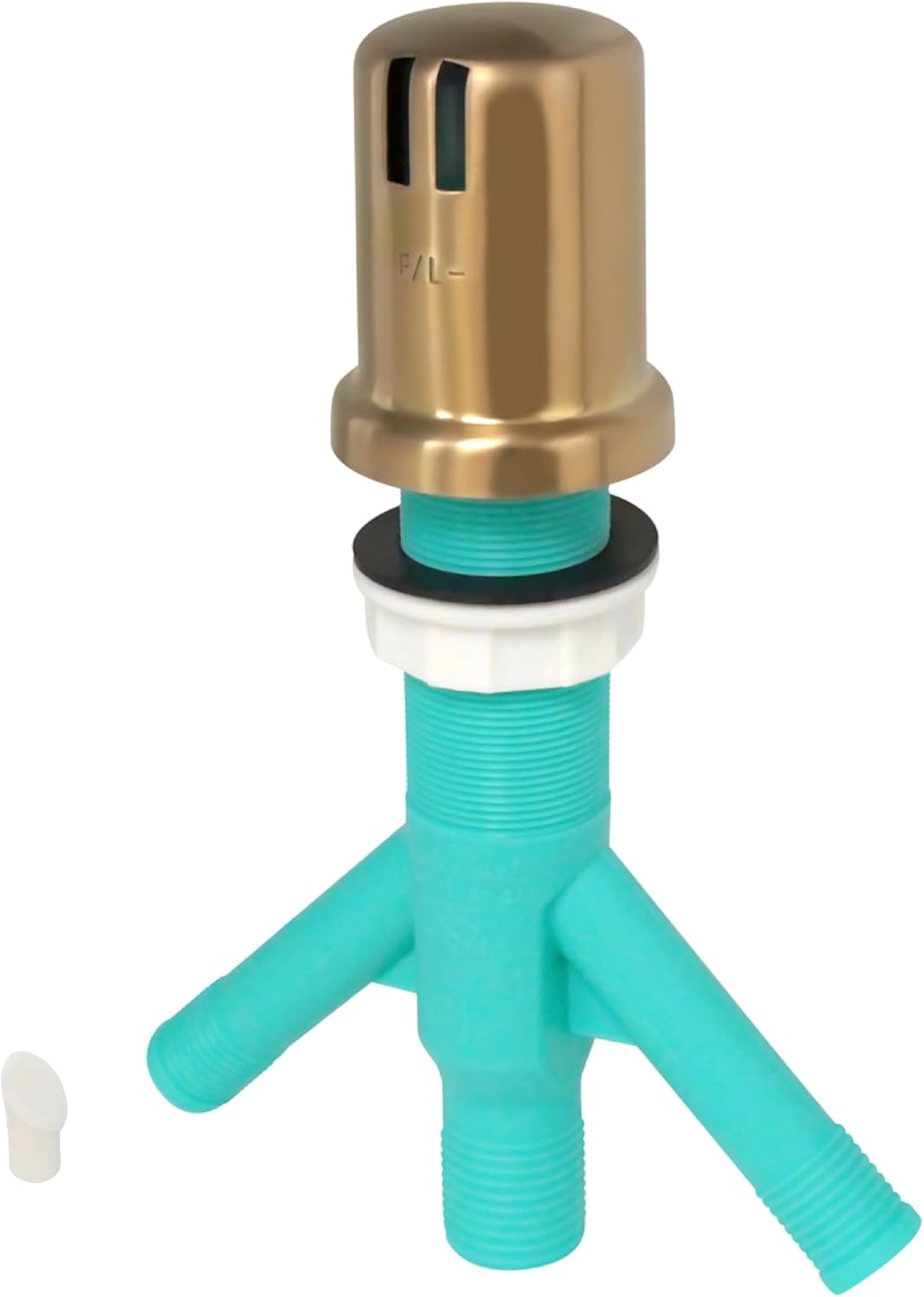

Dual Air Gap for Double Drawer or Two Separate Dishwashers with Skirted Cap and Extra Long Thread for Thick or Thin Countertops (AG200-004, AG200-001, T52, AMERIGAP)

A dishwasher air gap provides safe drainage of the discharge water into a garbage disposal drain. The plumbing code requires the dishwasher air gap in most states. Using a dishwasher without an air gap is not recommended. The AMERIGAP brand dual dishwasher air gap provides many advantages over other air gaps available on the market and ensures safety and peace of mind that your water supply is clean. A common misconception is that a “high loop” (routing a drain line above a sink’s flood level, for instance) and a wye connection will provide the same function as an air gap; this is not true, because the continuous connection between dishwasher and drain line still will allow back-flow through siphoning. This air gap is easy to install, easy to use, and easy to maintain. The AG200-004 air gap is UPC and IPC listed.

• ❤ FLOW RATE: The AG200-004’s maximum flow rate is 11 gallons per minute (GPM). The maximum flow rate per port is 5.5 GPM. The maximum flow rate through this air gap is the highest flow rate above which the air gap will overflow. At maximum flow rate, the air gap is dry on the outside.
• ❤ INLET PORTS: The AG200-004 accepts two standard 5/8-inch inside diameter hoses from a dual dishwasher. The hoses from the dishwasher slide onto the side ports and are secured using stainless worm clamps (not included). Make sure there are no kinks in the hose and that water passes freely. Both sides of the dishwasher can be operational at the same time. This air gap is compatible with all dual dishwashers.
• ❤ OUTLET PORTS: The drainage side of the air gap connects to a 7/8-inch inside diameter hose, which routes discharge water to the side drain connection on the garbage disposal. This hose is available from Home Depot (search for “PVC Disposal Discharge Hose”). When installing this hose, make sure that there is no sagging or loops. Any sagging will create standing water and will restrict the proper draining of the air gap. Secure both ends of the hose with a 1-inch stainless steel worm clamp.
• ❤ THREADED BODY: The AG200-004 has a body with a thread that enables air gap mounting through a standard countertop. Countertop thickness can be up to 1-3/4 to 2-1/8 inches, and it does not require any special modification to accommodate this air gap. The body of the air gap made from extra durable plastic to resists bending or deforming.
• ❤ MOUNTING NUT: The AG200-004 has a durable mounting nut that will not strip or become loose. The multi-threaded nut can be tightened without the worry of damaging threads. This configuration provides a simple and reliable installation that prevents leaks and assures trouble-free operation after the air gap is installed.
