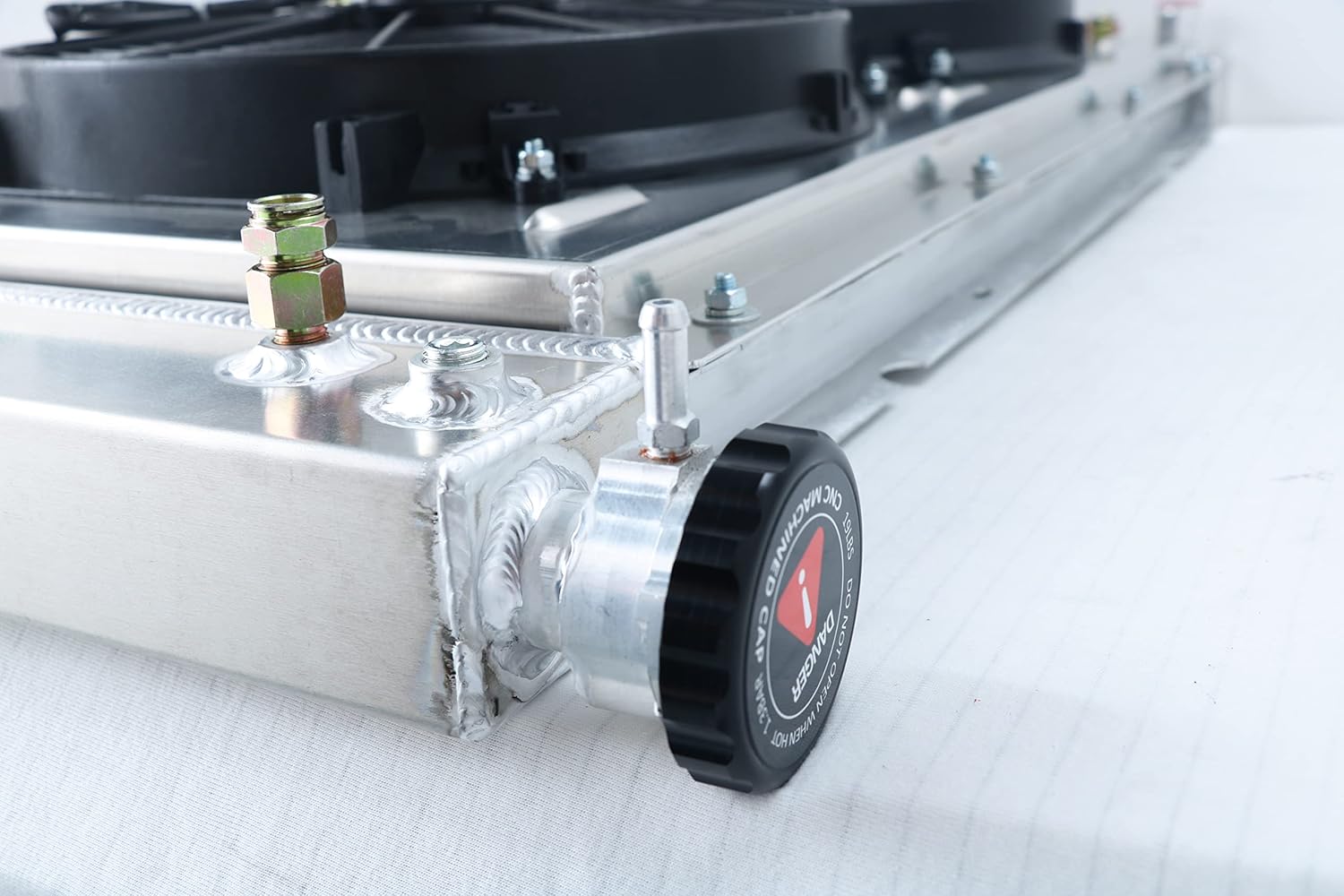

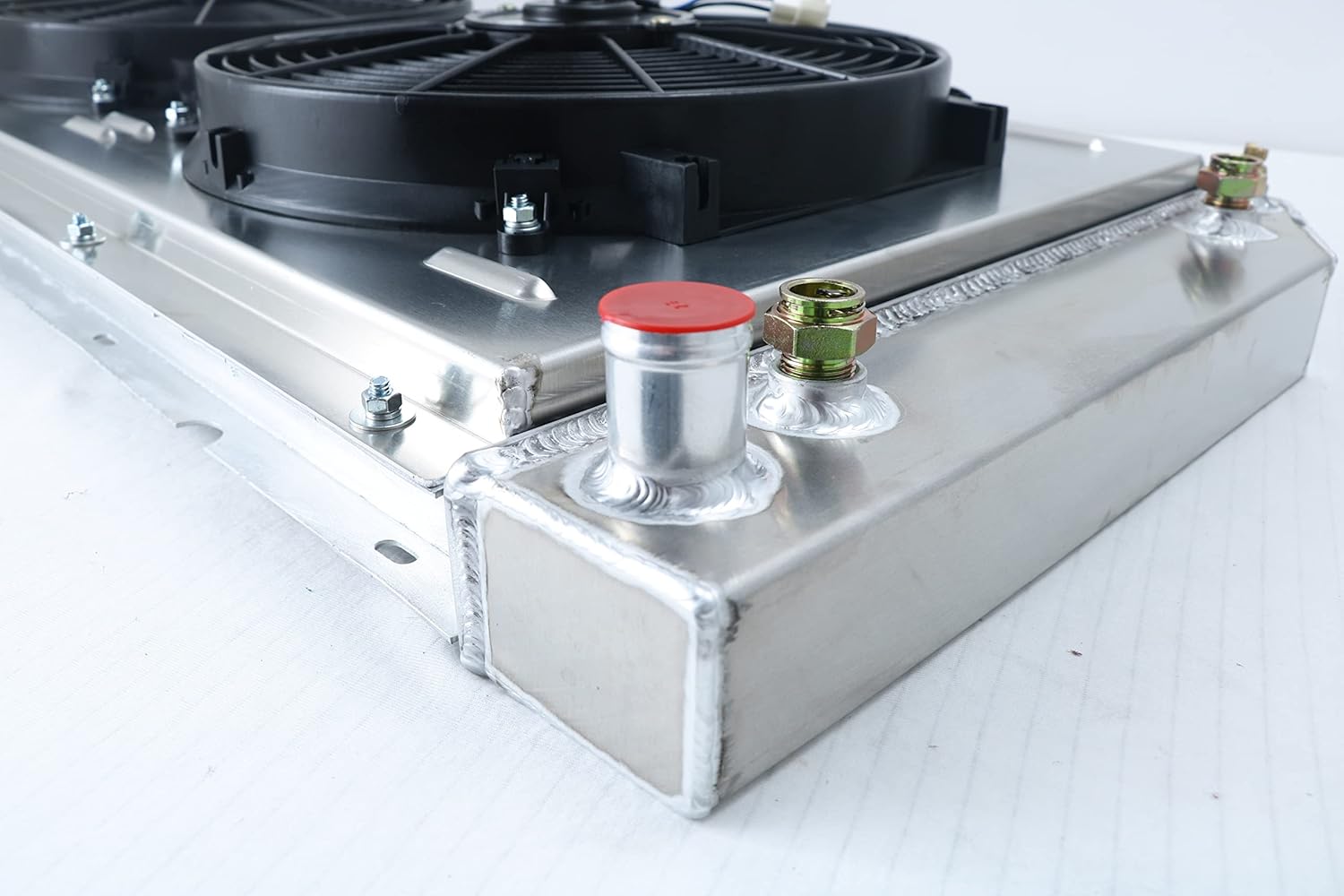

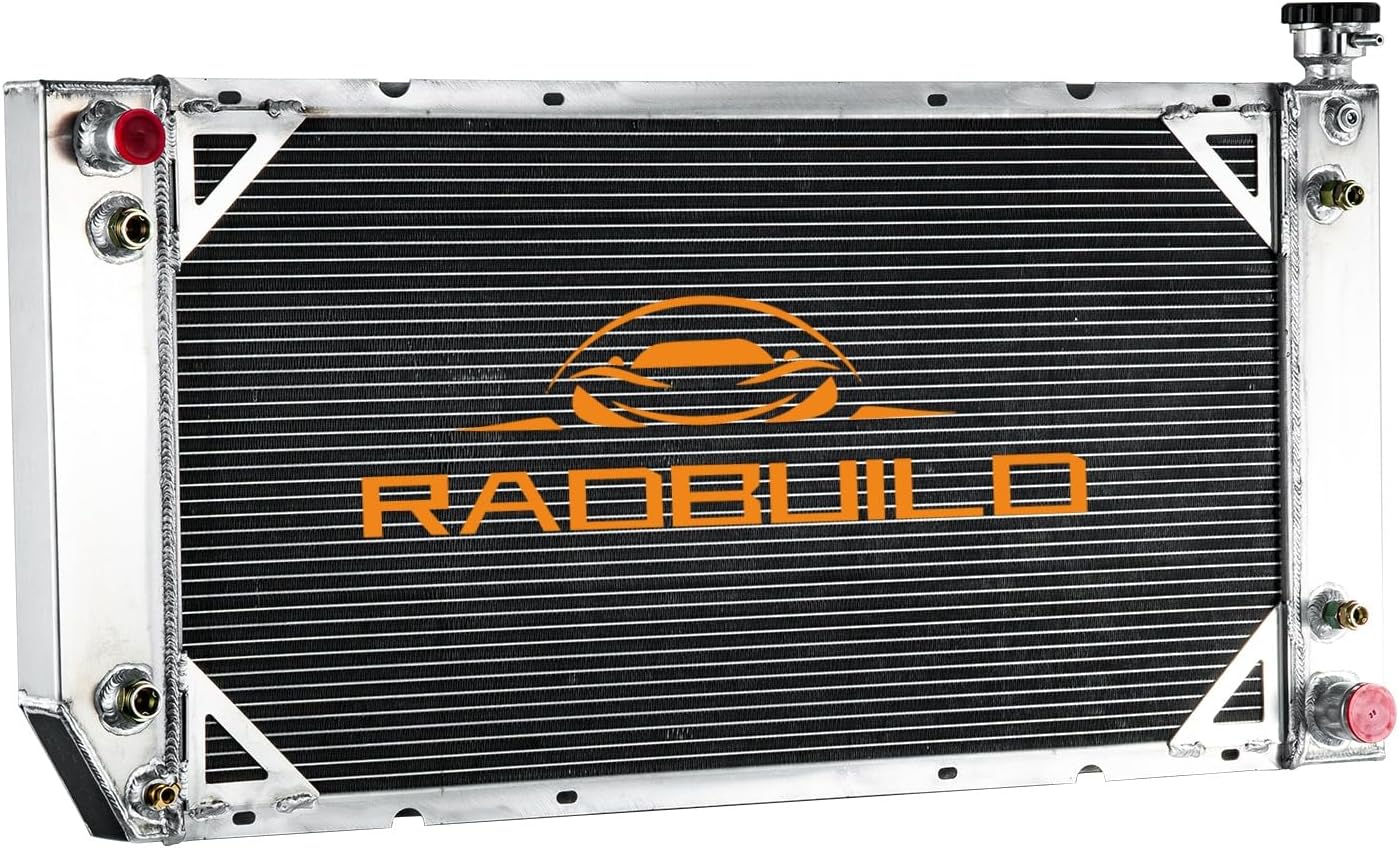

DPI1520 Radiator for 1988-2000 Chevy GMC C/K 1500 2500 3500 Suburban Blazer Tahoe GMC Yukon Cadillac 3 Row Aluminum Radiators Fans Relay Kit

FitmentFor 1988-1999 Chevy C/K Truck 5.7L-7.4L V8 EnginesFor 2000 Chevy C/K Truck 5.7L V8 EnginesFor 1992-1994 Chevy Suburban/Blazer 5.7L-7.4L V8 EnginesFor 1995-2000 ChevyTahoe/1992-2000 GMC Yukon 5.7L V8 EnginesFor 1999-2000 Cadillac Escalade/Escalade EXT 5.7L V8 EnginesPackage Include:1 X 3-Row Aluminum Radiator(Includes Radiator Cap)1 X Aluminum Shroud2 X 14" Fans(Includes mounting kits)1 X Thermostat Relay KitRadiator DetailsRow Count: 3 RowCore Size: 33.98"H x 16.85"W x 1.73"TOverall Size: 40.94"L x20.47"W x5.91"HInlet/Outlet: 1.26"/1.57"Transmission oilcooler: IncludeOil Cooler: φ26*292*1/2-20UNF(Z)Performance: Up to 30%~45% More CoolingRadiator Crafts:100% welded by TIG, No EpoxyPlacement on Vehicle: Engine CompartmentMounting Style: Bolt-OnFitment Type: Direct ReplacementSurface Finish: Aircraft Grade Raw Aluminum Tank & CorePetcoke Drain: OEM Style Brass Petcoke DrainRadiator Cap: CNC Machined Filler Neck And CapFans SizeMaximum Fan CFM: 2200±200FAN DIAMETER X HEIGHT X THICKNESS:14.05" X 14.05" X 2.5"Number of Blades: 8 blades (Plastic)Maximum Fan RPM/ Amp Draw :2,250 rpm / 12.70 ampsRelay Kit Instructions:RED + connect directly to battery.WHITE wire to ignition switch power source.BLACK goes to thermos switch.BLUE wire goes to the Fans.Thermostat Relay Kit:Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature.180'F turn-on temperature, 165'F turn-off temperature.3/8" NPT thread-in brass probe included.Probe typically threads into radiator, water outlet or manifold.Part NumberManufacturer Part Number: DPI1520, DPI1522, DPI1693, 1520, 1522, 1693, 1520, RADS1520

• For 1988-2000 Chevy C/K Truck | For 1992-1994 Chevy Suburban/Blazer | For 1995-2000 Chevy Tahoe | For 1992-2000 Gmc Yukon | For 1999-2000 Cadillac Escalade/Escalade Ext V8 Engines |1988 1989 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000
• Core Size: 33.98" Height x 16.85" Width x 1.73" Thick; Overall Size: 40.94" Length x 20.47" Width x 5.91" Height; Inlet/Outlet: 1.26"/1.57"; Transmission Oil Cooler: φ26*292*1/2-20UNF(Z); Engine Oil Cooler: φ32*292*M20*1.5(P)
• High Performance! Full AA5052 Aircraft Aluminum radiator that dramatically increases cooling efficiency by up to 30%~45%, strong and durable, 100% welded by TIG, No Epoxy. 100% Leak Tested
• Easy to Install! Meticulously built to superior OE standards for a precise fit, direct bolt-on replacement. No Drilling or Modifications Needed for Installation
• Crafted by our professional team using the highest-grade materials for exceptional longevity. Any problem, such as quality problems (leaking)/damaged/not received, please contact us via email first
