Dividing Head Milling Set, Precision Semi Universal Indexing Head with 100mm/125mm/160mm Chucks, for Milling Machine Rotary Table Tailstock Milling Set 6Inch

A high-precision, easy-to-use indexing table improves machining efficiency and reduces scrap, saving you money in the long run. Isn't it an essential tool for every machine shop?Specifications:Chuck type: 3-jaw chuckGear ratio: 1:40Size: 4 inches/5 inches/6 inchesGraduation accuracy: 0.04°Center height: 100 mm, 100 mm, 130 mmChuck diameter: 100 mm, 125 mm, 160 mmClamping range: 2-80 mm, 2-110 mm, 3-145 mmOverall height (upright): 240 mm, 250 mm, 300 mmOverall height (lying): 170 mm, 170 mm, 220 mmChuck bore: 20/30/40Weight: 21kg/22kg/29kgAdvantages:- Rotating scale indicator with 1° fine divisions.- Adjustable angle for fast splitting: -10°-90°.- 360° rotating head with sturdy, stable counter-jaw clamping.- Universal indexing head: Spindle accuracy: 0.03mm, indexing accuracy: 120 seconds.- Fast positioning: Direct indexing plate allows for fast splitting of 2, 3, 4, 6, 8, 12, or 24 holes.- Durable cast iron construction: Made of fc30 cast iron, indexes workpieces around their axis, such as hexagonal parts, gears, splines, and other parts.Package contents:1 * indexing head3 * honeycomb plates1 * tailstock3 * counter jaws4 * spacers1 * chuck wrench1 * tail head1 * rotator1 * protective nut

• 【CAST IRON ROTARY TABLE】Designed for precise positioning, rotation, indexing, and clamping of wood and metal workpieces, it is for surf-ace machining, long-hole processing, and precision drilling. It is widely used on milling, grinding, drilling, and planing machines, as well as in the automotive, mold-making, and general machinery industries, playing a critical role in machining
• 【ADJUSTABLE ANGLE】The semi-universal dividing head is a simple indicator center that can be used for both direct and indirect indexing. After completing the processing of gears, end faces and grooves, the spindle box can be tilted from 10° below the horizontal to 90° vertical. By changing the Angle, materials of different sizes can be processed
• 【HIGH PRECISION】This milling cutter features an indexing head and a laser-engraved scale. Its 24 quick-indexing holes allow for 2, 3, 4, 6, 8, 12, and 24-degree divisions, with a gear ratio of 1:40. A circle represents 360 degrees, and a scale mark represents 1 degrees

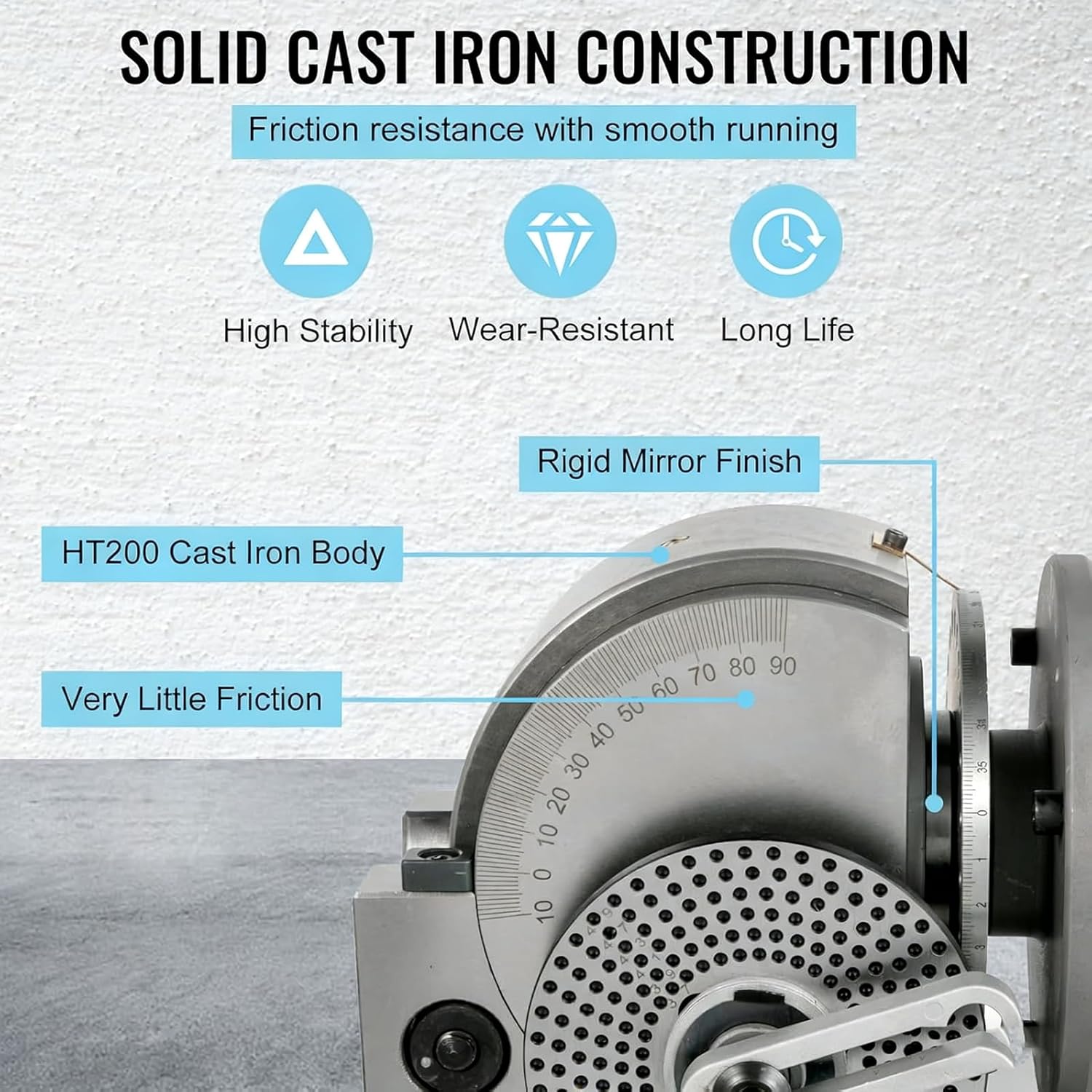

• 【DURABLE MATERIAL】Our rotary table is made of cast iron, which is extremely wear-resistant and has a high surf-ace hardness that prevents scratches and wear, ensuring a long service life. The precision components of this tool work together to divide the material to be cut efficiently and accurately
• 【100/125/160 CHUCK】This universal indexing head features a direct indexing plate and a replaceable indexing plate located on the machine headstock. Additionally, two replaceable indexing plates, each with a different number of holes, are included to set precise cutting intervals
