Digitus 305 m Cat 6A Network Cable - U-FTP (PiMF) Simplex - BauPVO Eca - LSZH Halogen Free - 500 MHz Copper AWG 23/1 - PoE+ Compatible - LAN Cable Installation Cable Ethernet Cable - Blue

The Digitus® Cat.6A U/FTP installation cable is characterized by the following cable construction 4x2x AWG23/1 and reaches a transmission frequency up to 500 MHz. The halogen free cable jacket is conform to the standard IEC 60332-1, FRNC-B, LSZH-1 and CPR Euro class Eca. The cable is suitable for building structured cabling in the secondary and tertiary area. Compliant with the following standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-10-1.

• PROPERTIES: Cat6A cable with 4x2 AWG 23/1 core diameter 0.57 mm twisted pair copper cables (Cu) – 500 MHz bandwidth up to 10 Gbit/s 10GBase-T in accordance with IEEE 802.3 – External diameter 7.0 mm – Power over Ethernet (PoE, PoE+)

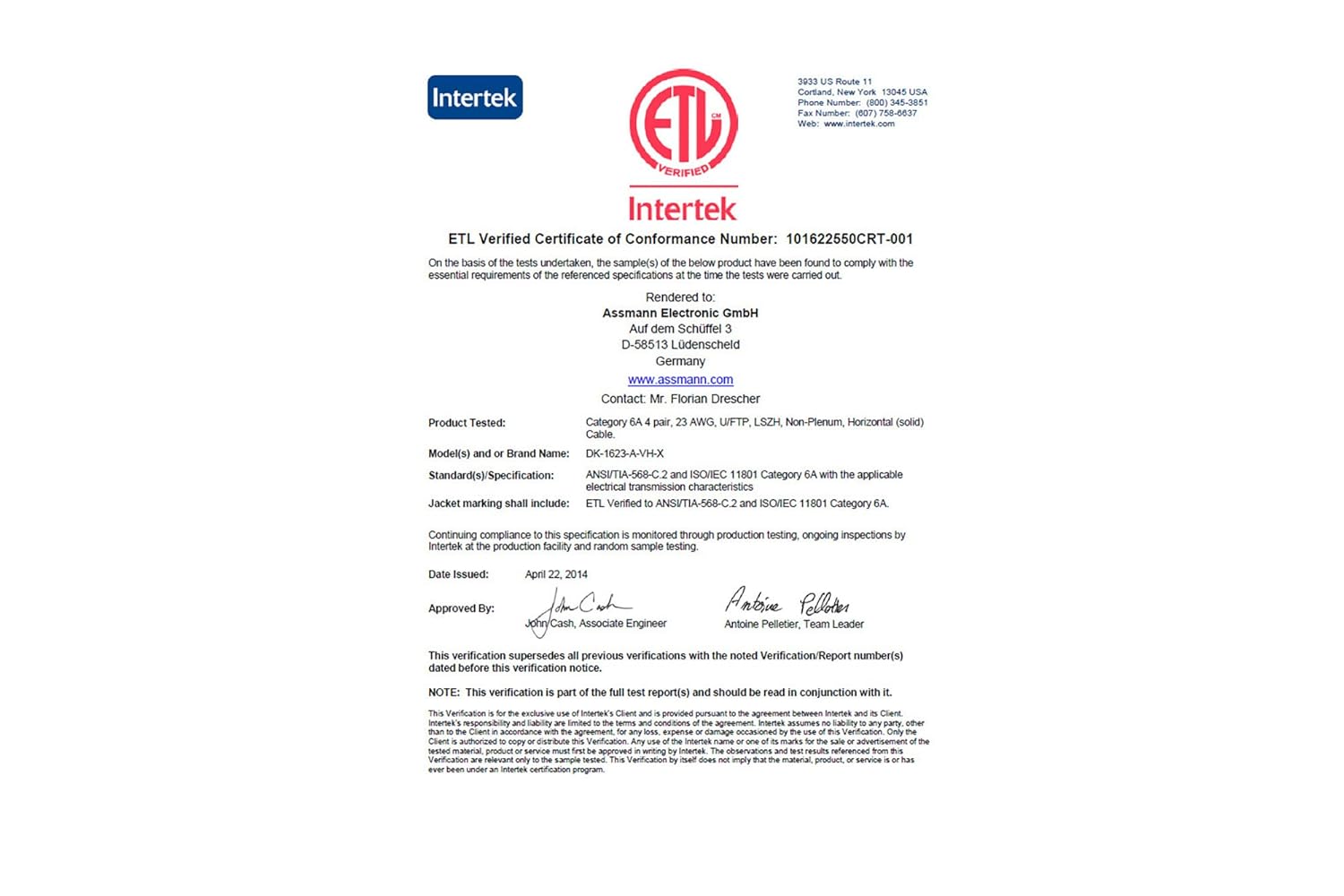

• QUALITY CHARACTERISTICS: LAN cable is shielded (U/FTP shielding with PiMF, pairs in metal foil) – Type approval GHMT certified – Standards: ISO/IEC 11801, IEC 61156-5, DIN EN 50173-1/4, DIN EN 50288-10-1, EN 60332-1, EN 50174-2, ANSI/TIA-568-C
• FIRE PROTECTION: Data cable corresponds to CPR Euro Class BauPVO Eca in accordance with EN 50575 – LSZH halogen-free flame-retardant low smoke – With HD-PE polyethylene outer sheath (0.50 mm thickness) color light blue (RAL 5012)
• INSTALLATION: Connection of network components (network socket, patch panel, Keystone module, RJ45 network plug) and network devices (WLAN repeater, LAN switch, PoE switch, splitter, access point, network router)
• APPLICATIONS: For universal network cabling in structures, offices, buildings, commerce, home, house, industry, cellar, warehouse, data center or apartment (network cable, DSL cable, Internet cable, TAE cable, phone cable)
