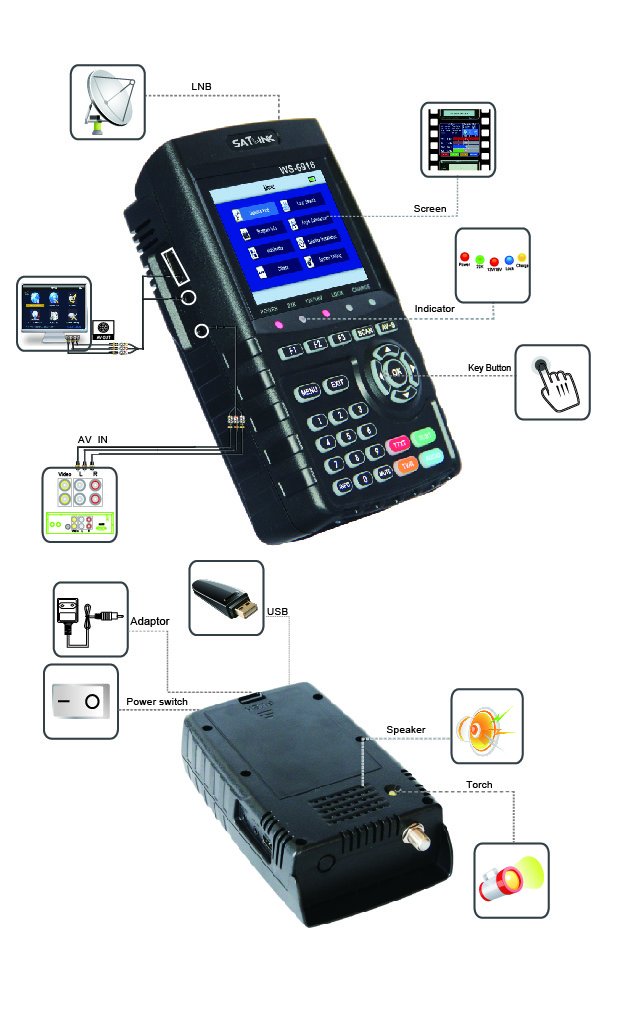

Digital 3.5" LCD Satellite Finder Satellite Meter Detector WS-6916 DVB-S/S2 Compliant Terrestrial Signal Meter Receiver 950～2150MHz -65～-25dBm DISEQC 1.0/1.1/1.2,0/22khz Video Audio Encoding

MeterTo MeterTo mainly offers instruments and tools. Please confirm the product is offered by our store MeterTo when purchasing, otherwise we can't ensure the quality and after-sale service. Specification Model: WS-6916 Transmission Standards: DVB-S/S2. H.264 Satellite Input/ Demodulation Connector Type: F Type Input Frequency: 950 to 2150 MHz Signal Input Level: - 65 to -25 dBm Band Switch Control: 22KHz LNB Supply: 13V/18V, IMax 400mA Demodulation Type: QPSK,8PSK Symbol Rate: 2Mband(SCPC/MCPC) LCD Features LCD Type: TFT TRANSMISSIVE Number of Dots: 480(RGB)x272 Active Area (W x H): 70.02x52.58mm2 AV Output Interface Connector Type: 3.5 mm jack Video Output: CVBS Audio Output: Stereo Audio L/R output AV Input Interface Connector Type: 3.5 mm jack Video Input: CVBS Audio Input: Stereo Audio L/R input Data Service Port Connector: USB Data Protocol: USB2.0 interface File Management System: NTFS, FAT32, FAT16 File format: wma,mp3,mp4,avi,jpg,jpeg,bmp,img Microprocessor Microprocessor: 78346 Clock Frequency: 550MHz SDRAM Memory: DDR2 512Mbit Power Supply Li-Ion Battery: 7.4V/3000mAh Adapter OUTPUT: DC12V/1.5A INTUPT: 100-240VAC 50/60Hz Power consumption: Max. 10W Size: 101x177X47(mm) Weight: 0.46KG

• Support formal international standard video and audio encoding; Supports scan of Auto,Blind,Manual or NIT;
• Digital meter for signal strength and quality; Sound and Light Alarm for Locking Signal;
• Supports DISEQC 1.0/1.1/1.2,0/22khz Tone; Support both AV out and AV in;
• LNB short protect; Speaker Integrated; Auto Calculate Angle of AZ ,EL;
• 7.4V/3000mAh Li-Ion Battery Included; Software upgrade via USB port.
