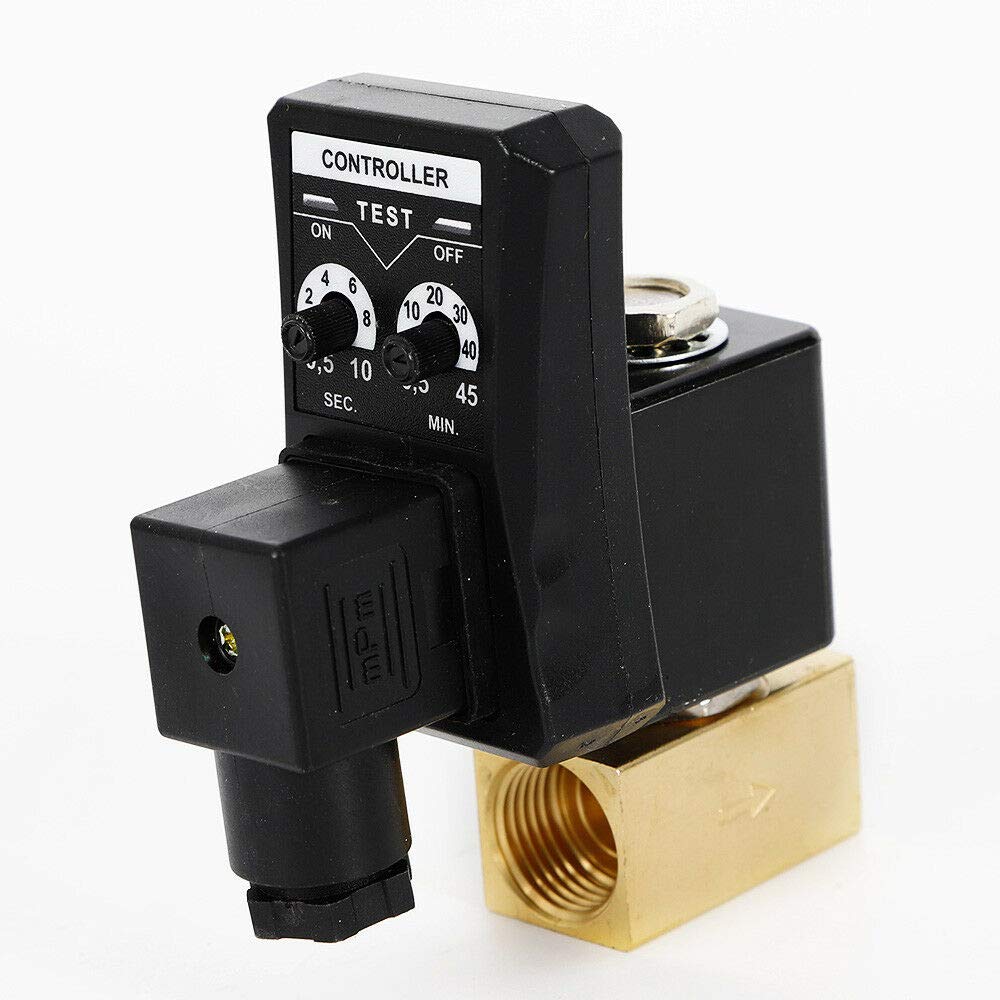

DENESTUS 1/2" Timing Drain Valve Automatic Electronic Timed 2 Way Air Compressor Tank Water Drain Two Way Direct Acting Valve AC 110V 60HZ Kits

1/2" Automatic Electronic Timed 2 Way Air Compressor Tank Water Drain Valve 110V US STOCK☆ DENESTUS Pro Timing Drain Valve-Strong and DurableSpecification:Voltage: AC110V 60HzVoltage Range: 10%Time Interval ( OFF ): 0.5--45 minutes (adjustable)Discharge Time ( ON ): 0.5--10 seconds (adjustable)Manual Test Button: Yes( micro switch)The Current Consumption: Max 4mAShell Material: Flame retardant ABS plasticElectrical Connection: DIN43650AFlow Aperture: 5 mmInsulation Class: HIn / Out Port Size: 1/2"Maximum Working Pressure: 1.6MpaMaximum Temperature: 90 CValve Material: Forging brassInstallation:1. Clean the compressed air system before installing2. Attention to the direction of the arrow when the valve body; outlet do not use the impact of the hose does not impact3. The supply voltage must be the same as the drain valve voltage; when using DC, the positive pole must be connected to the connector "1"4. The factory has been connected to the cable drain valve, fade for the fire line L, blue for the zero line N, yellow and green color for the safe ground GND5. Always tighten the long screws on the terminal box to prevent the water from burningTimer setting:Left knob to set the discharge time, the right knob to set the interval time; the first discharge time of 2s, the interval time is 20min, and then need to be further adjustedPackage Include:1x Drain Valve

• ■ DENESTUS Timing Drain Valve Time Interval ( OFF ): 0.5--45 minutes (adjustable). And Discharge Time ( ON ): 0.5--10 seconds (adjustable).
• ■ Type: two-way direct-acting valve. Indicator Lamp: LED indicating power ON / OFF.
• ■ Maximum Working Pressure: 1.6Mpa.Voltage: AC110V 60Hz.In / Out Port Size: 1/2".
• ■ Valve Material: Forging brass.Shell Material: Flame retardant ABS plastic.
