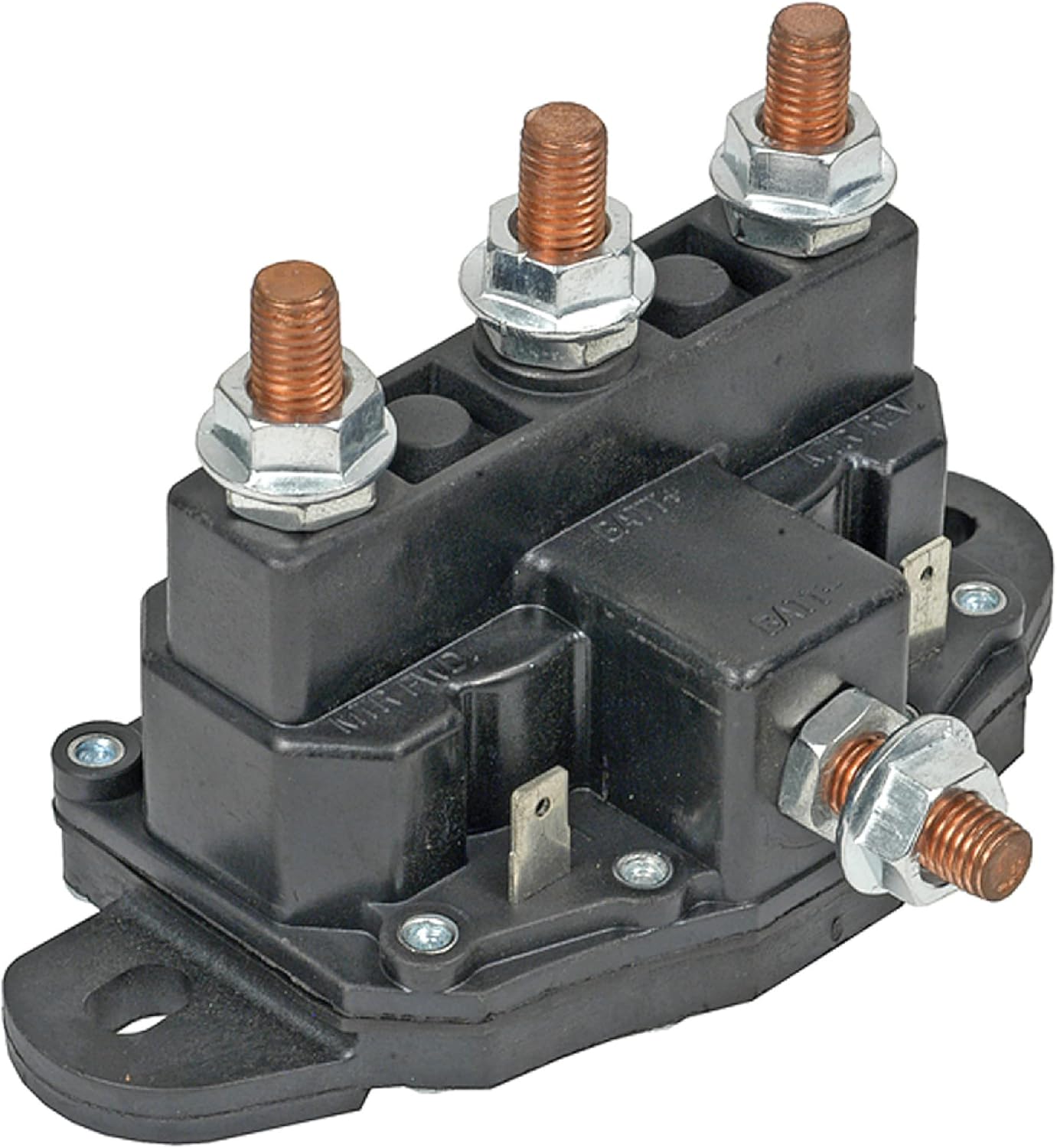

DB Electrical LRW6000 Winch Motor Reversing Solenoid Compatible with/Replacement for Contactor Relay 6 Terminal 12 Volt/Works on Winch Motors Windlasses
Product details
| Management number | 213147044 | Release Date | 2026/04/12 | List Price | $13.28 | Model Number | 213147044 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
HEAVY DUTY12 VOLT Reversing Polarity Contactor for Permanent Magnet Winch and Reversable MotorsThis solenoid switch is used to reverse polarity on permanent Magnet winch motors with 2 terminal posts It will not work on Winch motors with 3 terminal posts Applications:Winch Motors Windlasses Hydraulic Pump Motors & Other Reversible Motors that Normally Require Multiple Solenoids Used on late model Ramsey and other winch and hydraulic applications and Industrial Equipment This solenoid will work only with Permanent Magnet Motors It will not work with the older style motors with copper field coils This solenoid is guaranteed to perform equal or better than the solenoid it is replacing Voltage: 12 voltsNumber of Terminals: 6Continuous or Intermittent?: Continuous DutyNew or Remanufactured: NewNotes:DPDT Motor Reversing Solenoid (4) 5/16"-24 Threaded Studs for Battery & Motor (2) 6 4mmBlade Terminals for Solenoid Operation (2) 7 1mm x 10 4mm Mounting Slots 150 Surge Amps 75 Amps Carry for 5 Minutes1 YEAR WARRANTYDon't be fooled by cheap imitations!
- Specs : Unit Type : SWITCH - CONTACTOR
- Compatible with/Replacement for ARROWHEAD (OEM) : CH24450, ARROWHEAD : LRW6000, COLE HERSEE : 24450, 24450BX, J & N : 240-22017, PIC : 6660-111
- 1-year warranty protects you after your purchase
- 100% New aftermarket Contactor Switch built to meet OEM specifications
| UPC | 701485520532 |
|---|---|
| Model | 240-22017 |
| Wattage | 900 watts |
| Brand Name | DB Electrical |
| Part Number | 240-22017 |
| Coil Voltage | 12 Volts |
| Contact Type | Dpdt |
| Manufacturer | DB Electrical |
| Mounting Type | Panel Mount |
| Connector Type | Blade Terminal |
| Current Rating | 75 Amps |
| Operating Time | 5 Minutes |
| Operation Mode | Electrical,Motor |
| Coil Resistance | 75 Ohms |
| Contact Material | Copper |
| Included Components | DB Electrical LRW6000 Winch Motor Reversing Solenoid For Contactor Relay 6 Terminal Ramsey w Copper Contacts |
| Warranty Description | 1-Year Warranty |
| Contact Current Rating | 75 Amps |
| Minimum Switching Voltage | 12 Volts |
| Global Trade Identification Number | 00701485520532 |
| EU Spare Part Availability Duration | 1 Years |
