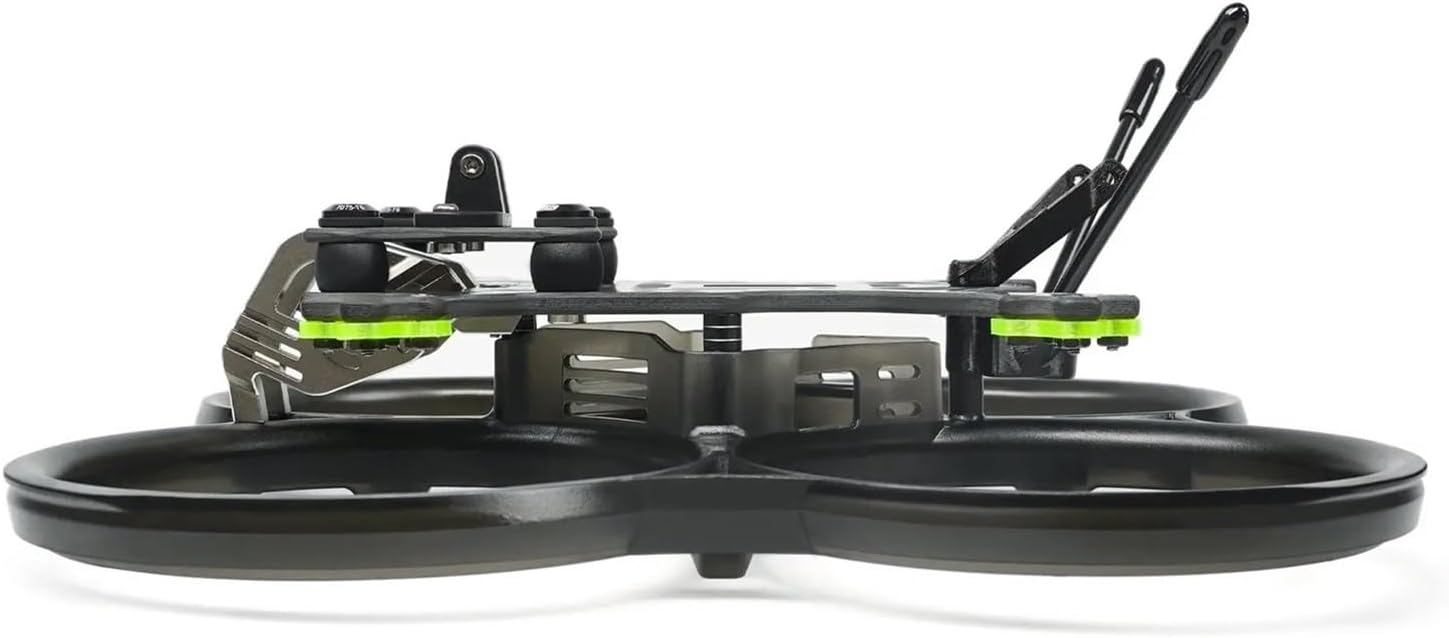

CT30 Reinforced 3-Inch Integrated Mechanical Frame Kit 127mm Wheelbase 7075 Bracket Embedded Prop Guard Damping Platform (1 Set)(L)

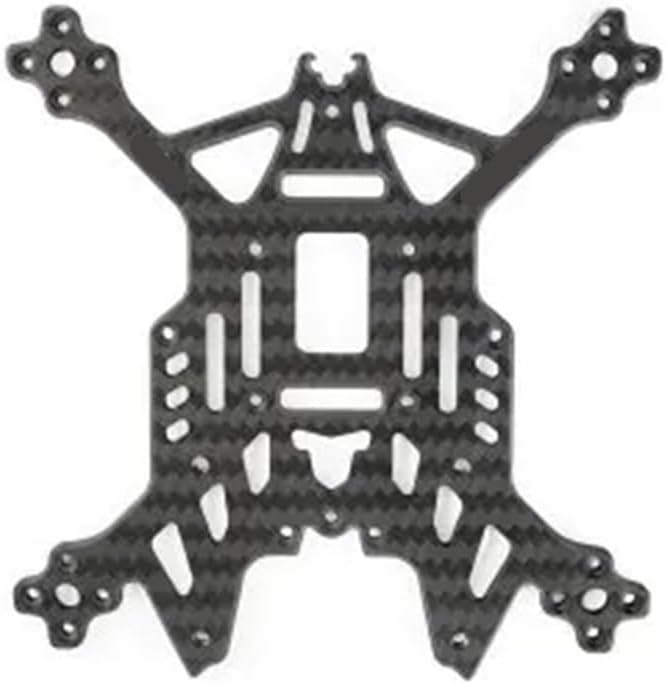

The Reinforced CT30 Series 3-Inch Frame is a technical structural solution engineered for professional maintenance and imaging platforms. By combining 7075 aviation-grade metal columns, high-tenacity injection-molded guards, and mechanical damping gimbals, it delivers exceptional structural durability for demanding environments at a weight of approximately 103.2g. This set is ideal for repair applications requiring strict vibration , maintenance efficiency, and versatile hardware mounting.Technical Specifications:- Model: CT30 Cinematic Series (Reinforced Protective Frame)- Material: Carbon / 7075 / Reinforced PC+PET- Wheelbase: 127 mm (Motor to Motor)- Thickness: Main Plate 3.0mm / Isolation Plate 2.0mm / Bottom Plate 1.5mm- Controller Mounting: 25.5 * 25.5 mm- Motor Pattern: 12 * 12 mm (Compatible with 15/18/20 series)- Feature: One-piece injection-molded guard with optional COB strip- Frame Weight: Approximately 103.2g (Including guards and 3D parts)- Target Audience: Users aged 14+Package Included:- 1 x Reinforced Carbon CT30 Frame Assembly (with guards)- 1 x Fastening Hardware and L-shaped Tool Set- 1 x 3D Printed Components Set

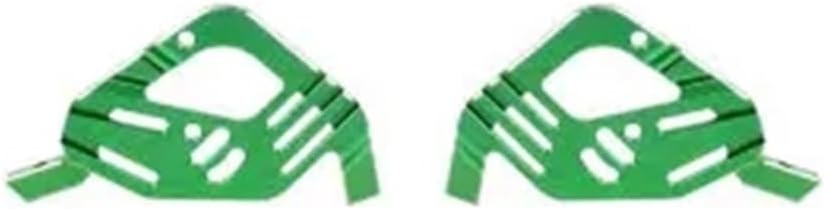

• Integrated Cinematic Logic: This 127mm wheelbase frame is specifically engineered for 3-inch propulsion systems, utilizing 7075 aviation-grade aluminum brackets for structural stability. The physical layout is optimized to provide a stable mounting base for optical sensors.
• Advanced Damping: Features a newly developed mechanical damping designed to effectively dissipate high-frequency physical vibrations. This vibration-isolation structure ensures mechanical consistency for the mounting platform during dynamic displacement.
• Reinforced Injection Guard: Manufactured from high-tenacity, impact-resistant PC+PET composite via integrated injection molding, providing 360-degree physical . An embedded ring-shaped COB physical unit is tuned for clear display of system outlines.
• Quick-Disassembly Design: The optimized structural logic requires removing only 6 bolts to separate the top plate from the guard. This convenient physical connection significantly simplifies the upgrade and replacement process for internal components during maintenance.
• Consistent Integration Logic: As a purely mechanical frame component, it contains no electronic components, energy storage units, or substances. Features 25.5x25.5mm mounting compatibility, meeting the requirements for system repair and hardware replacement for users aged 14+.
