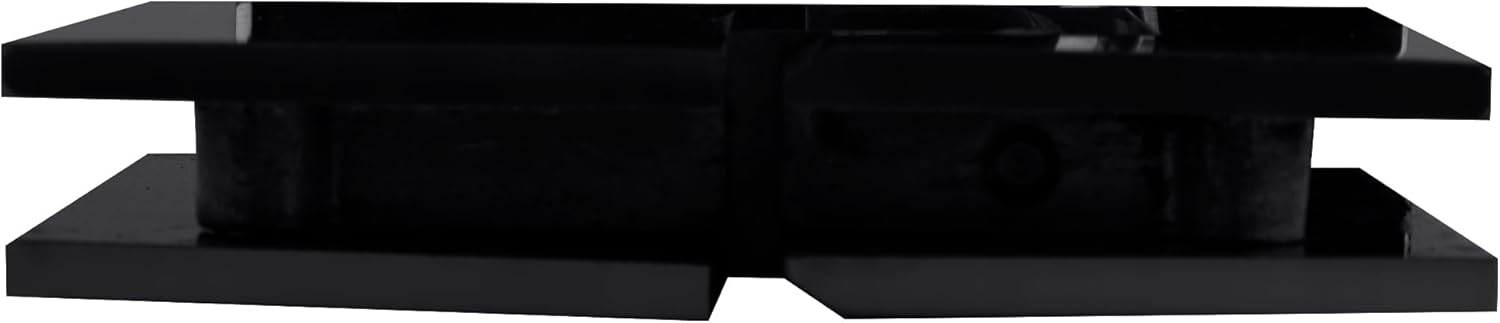

CRL GEN380MBL Matte Black Geneva 380 Series Adjustable 180 Degree Glass-to-Glass Hinge

The CRL Adjustable Geneva Series has taken our popular Geneva Hinge to a new level. Adjustment to accommodate the desired angle (up to 90 degrees) is done after the door is installed. Once the door is hung, simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired closing position. The door can swing 90 degrees inward and 90 degrees outward (adjusting the angle from the factory set position will reduce the 90-degree swing in that direction). For doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5 degrees inside the shower area, thus having the door close snugly against the jamb. Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm). Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm). SPECIFICATIONS: Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass Special Features: Adjustable to any angle up to 90 degrees without having to take the door down. Construction: Solid Brass Hinge Swings: 90 degrees in and 90 degrees out (at factory set position). Closing Type: Self-Centering when within 15 degrees of closed position. Cut-Out Required Includes Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass. NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department. Product Warning: CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the

• Adjustable to Any Angle Up to 90 Degrees without Removing Door
• Three Year Warranty
• Adjustable 180 Degree Glass-to-Glass
• Use Monolithic Tempered Glass
