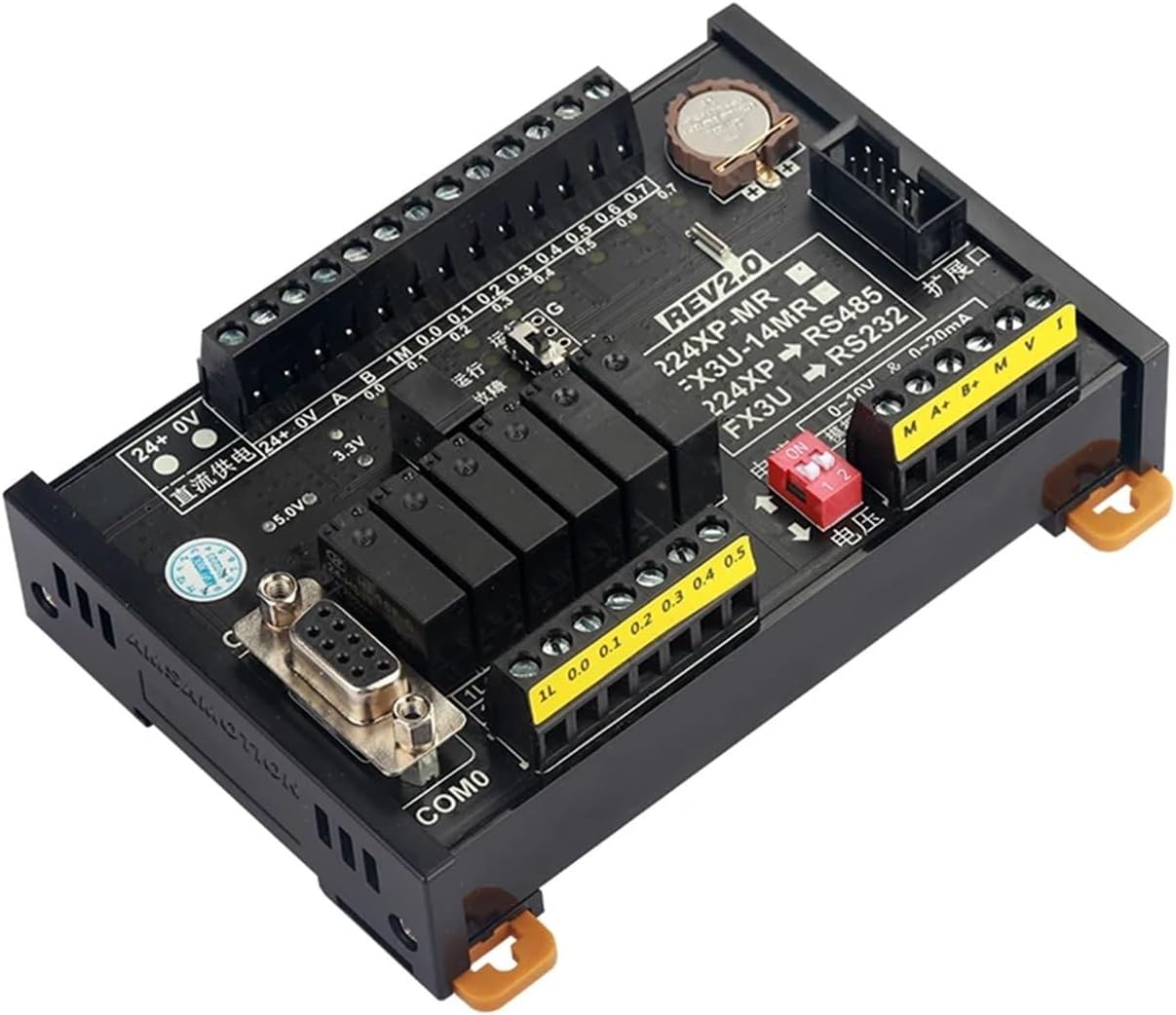

CPU224XP Relay Industrial Control Board Replace S7-200 Programmable Logic Controller 214-2BD23-0XB8 8I 6O 2I 2O

ModulesParameters: 224-MINI (relay type)Digital 8I6OAnalog 2I2ODigital inputInput signal type: Switch contact signal or level signal, supportpositive and negative triggerInput signal voltage: 18~28VInsulation Loop: Optocoupler isolationDigital outputContact capacity: 30VDC/5A,250VAC/5AInsulation Loop: Mechanical insulationAnalog inputInput type: Voltage/current, DIP switch switch switch input typeInput Range: 0 ~ 10V/0 ~ 20ma ( corresponding value range 0 ~ 32000)Conversion accuracy: 12 bitsCorresponding address: A + channel corresponds to AIW0, B + channel corresponds to AIW2Analog outputRange:0 ~ 10V/0 ~ 20ma ( corresponding value range 0 ~ 32000)Conversion accuracy:12 bitsHigh-speed counterNumber of input points: Three single phase, two AB phasePulse frequency: Single Phase 100K per circuitInput signal: 18-28VCommunication interfaceRS485One-way standard PPI communication port, support PPI andfree-port communicationPPR: 9.6 K, 19.2 K, 187.5 k; free mouth baud: 1.2 K to115.2 KExpansion port: 1 way, expandable 7 I/O modules==========is_customized : noUsage : General PurposeContact Load : Low PowerModel Number : CPU224XP
