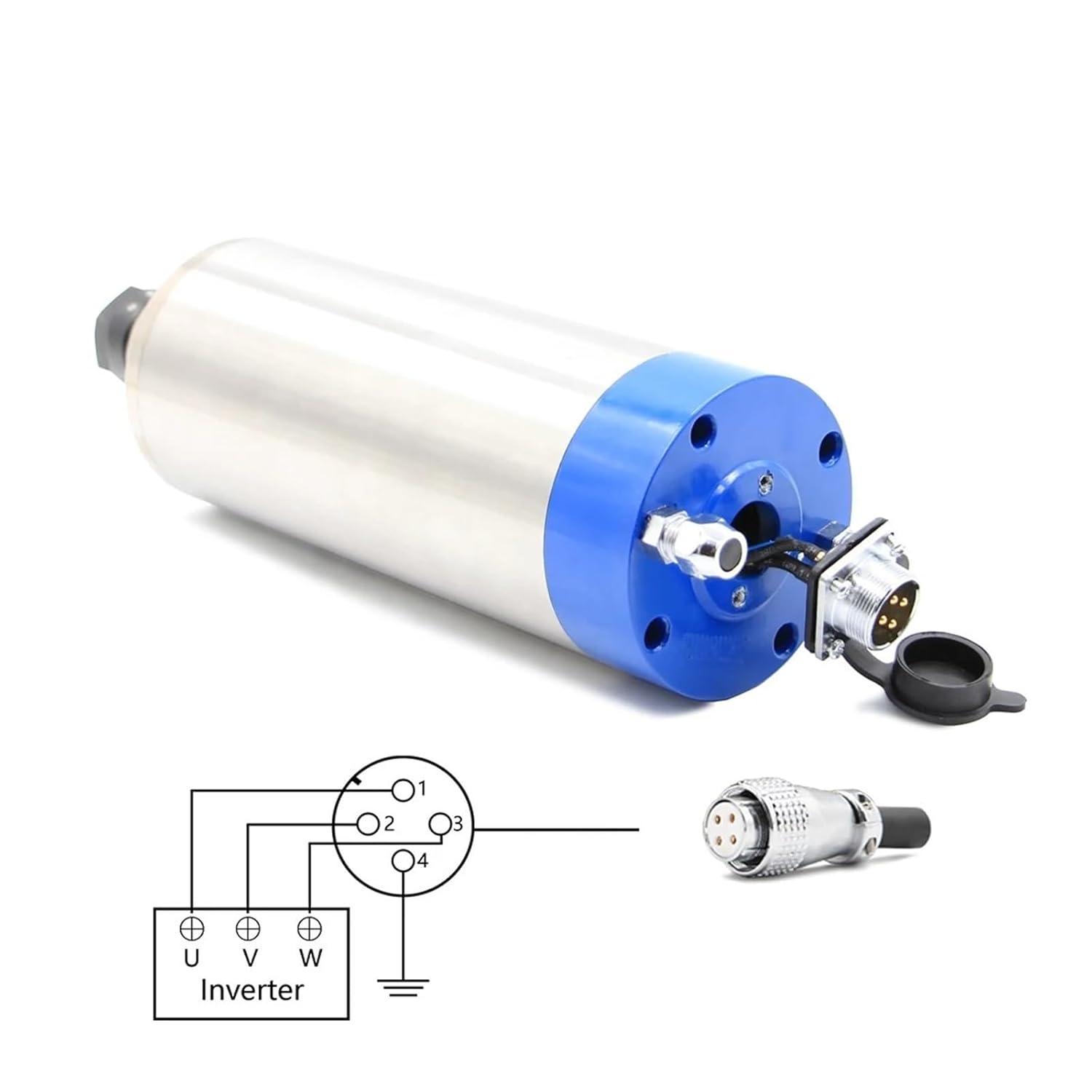

CNC Spindle Motor 2.2kw ER20 Water-Cooled Metal Spindle 800Hz Number of Poles = 4 Water-Cooled for Metal, Iron, Stainless Steel(380v)
Product details
| Management number | 213596719 | Release Date | 2026/04/12 | List Price | $36.00 | Model Number | 213596719 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Metal working spindle motor 1 and 220 vAC 22 kw water cooled 800 Hz pole 4 diameter 85 mm Size: 85 x 215 mm, central body diameter 85 mm x length: 215 mm. Speed Regulation Mode: Through the three-phase output frequency converter, adjust the frequency converter to change the spindle speed. Cooling method: water cooling Power: 2.2 kW Voltage: 220V Current: 10A Frequency: 800 Hz. Speed: 12000-24000rpm Number of poles: 4 Gear deviation: less than 0 mm. Diameter (mm): 85 Bearing type: 2 x 7005 P4 DT & 2 x 7003 P4 DT ========== Certification: CE Driving: electric motor. Max Torque: 1.0N.m Operating speed: 12000-24000rpm Model: ER20 2.2KW Metal Axle Application: Milling Dimensions: 85 x 215 mm. Voltage: 220V Current: 10A Power: 2.2 kW (1HP = 735 W) Cooling: Water-cooled Bearing Type: 2 X 7005C P4 DT & 2X 7003C P4 DT Clamp: ER20 Frequency: 800 Hz. Number of poles: 4 Nozzle range: 1-13mm (including 1/4, 1/8, 1/2)
- Rotation: Spindle motors provide stable high-speed rotation.
- Machining: Spindle motor precision directly affects the precision of the machined workpiece
- Application: adapt to a variety of application scenarios
- Features: light weight of all sizes
- Installation: Simple installation and easy to use
| Model | KACOME |
|---|---|
| Brand Name | KACOME |
| Model Name | KACOME |
| Unit Count | 1.0 Count |
| Manufacturer | KACOME |
