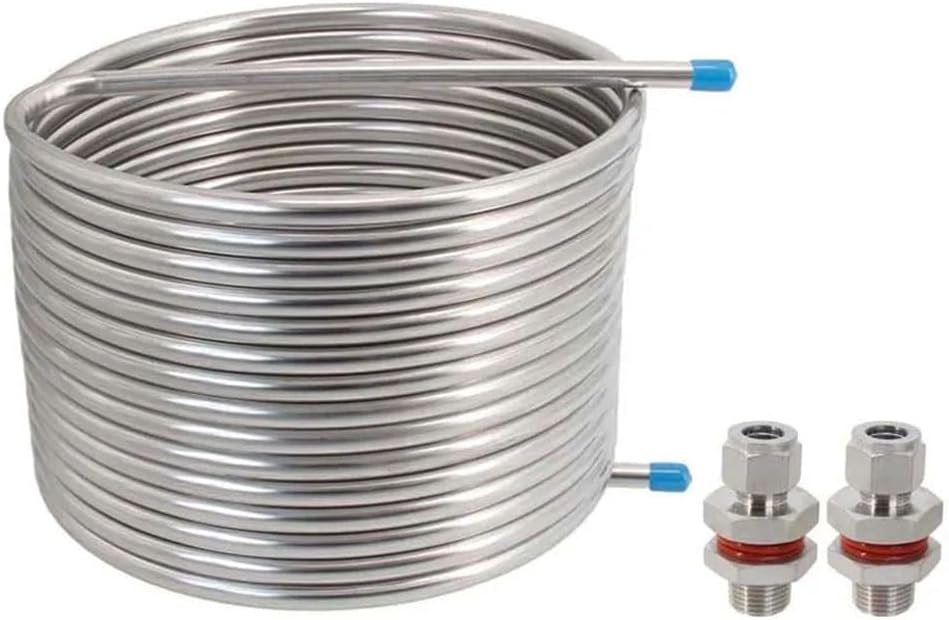

Chiller, 50ft(15.2M) Heat Exchange Recirculating Mash System(HERMS) Coil 10"/12" Diameter 1/2" OD Tubing 304SS Hot Liquor Tank Chiller Silver(10 inch,Weldless)
Product details
| Management number | 215031804 | Release Date | 2026/04/12 | List Price | $113.28 | Model Number | 215031804 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Description:1. Coil Diameter - 10"(25cm) & 12" (30cm) 2. Inlet/Out length - 2.4"(10" diameter version), 1.6" (12" diameter version )3. Distance from inlet/out(measurements taken center of tubing to center of tubing)10.8"(10" diameter version), 8.5" (12" diameter version )4. Overall coil height11"(10" diameter version), 9" (12" diameter version )The ends of the coil extend approximately 2" past the diameter to allow the user to cut to the exact length they need as every kettle will be slightly different. Cut the ends using a hacksaw and file the edges smooth with a metal file so that there are no burrs. If you want to get a nice clean cut, using a stainless steel tubing cutter instead as it will create a perfect cut without burrs.Features:1. Maintain your mash temp like a pro with the 1/2" x 50' Stainless Steel Coil.2. Perfect for step mashing 10-15 gallon batches of your favorite brew.3. The longer 50 foot length ensures that heat transfer is maximized and the large 1/2 inch tubing minimizes flow restriction.4. Easy to install even in tight kettles due to the cross-over design as having the ends come from the opposite sides of the coil allows for more flex.5. 8 Different Types for choose.Specifications:Total length: 50 feetMaterial: 1/2" OD 304 stainless steel, 0.035" wall thickness, seamlessEnds: Bent at a 90 degree angle to exit straight out of kettle wall, lining up perpendicular with each other.Cleaning:We recommend a good clean with similar oxygen based cleaner (recirculate with pump through coil, and a light scrub on the outside with a nylon brush or similar - do not use a steel brush or scrubby). Let it air dry afterward. The air dry allows any un-passivated sections of the stainless s
- Material: 1/2" OD 304 stainless steel, 0.035" wall thickness, seamless
- Perfect for step mashing 10-15 gallon batches of your favorite brew.
- The longer 50 foot length ensures that heat transfer is maximized and the large 1/2 inch tubing minimizes flow restriction.
- Easy to install even in tight kettles due to the cross-over design as having the ends come from the opposite sides of the coil allows for more flex.
- 8 Different Types for choose.
| Department | Unisex Adult |
|---|---|
| Item Weight | 4.41 pounds |
| Manufacturer | DYETEE |
| Number of pieces | 1 |
| Assembly required | No |
| Item model number | DYETEE |
| Package Dimensions | 1.18 x 0.79 x 0.39 inches |
| Tickrepellent material | metal |
