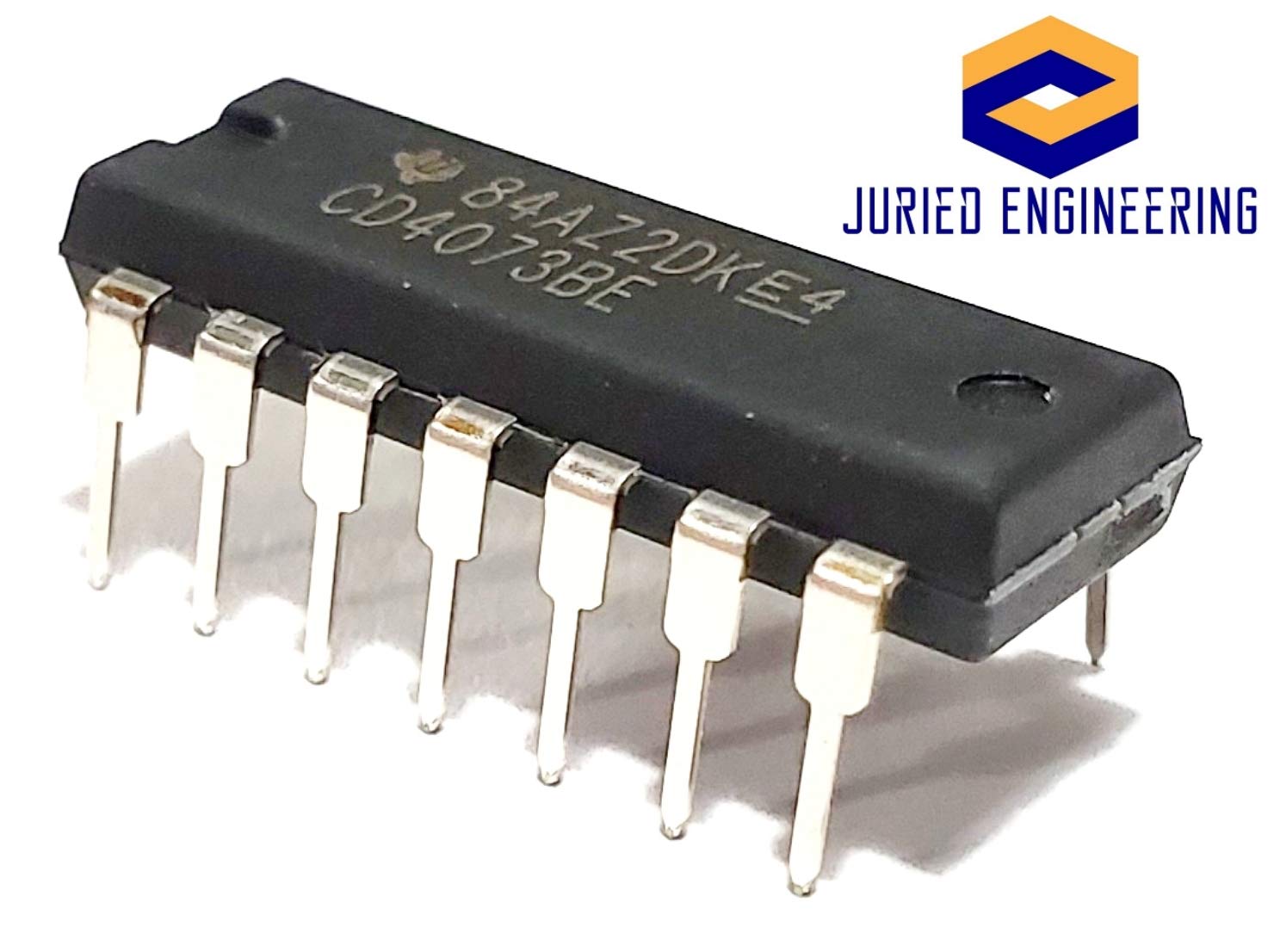

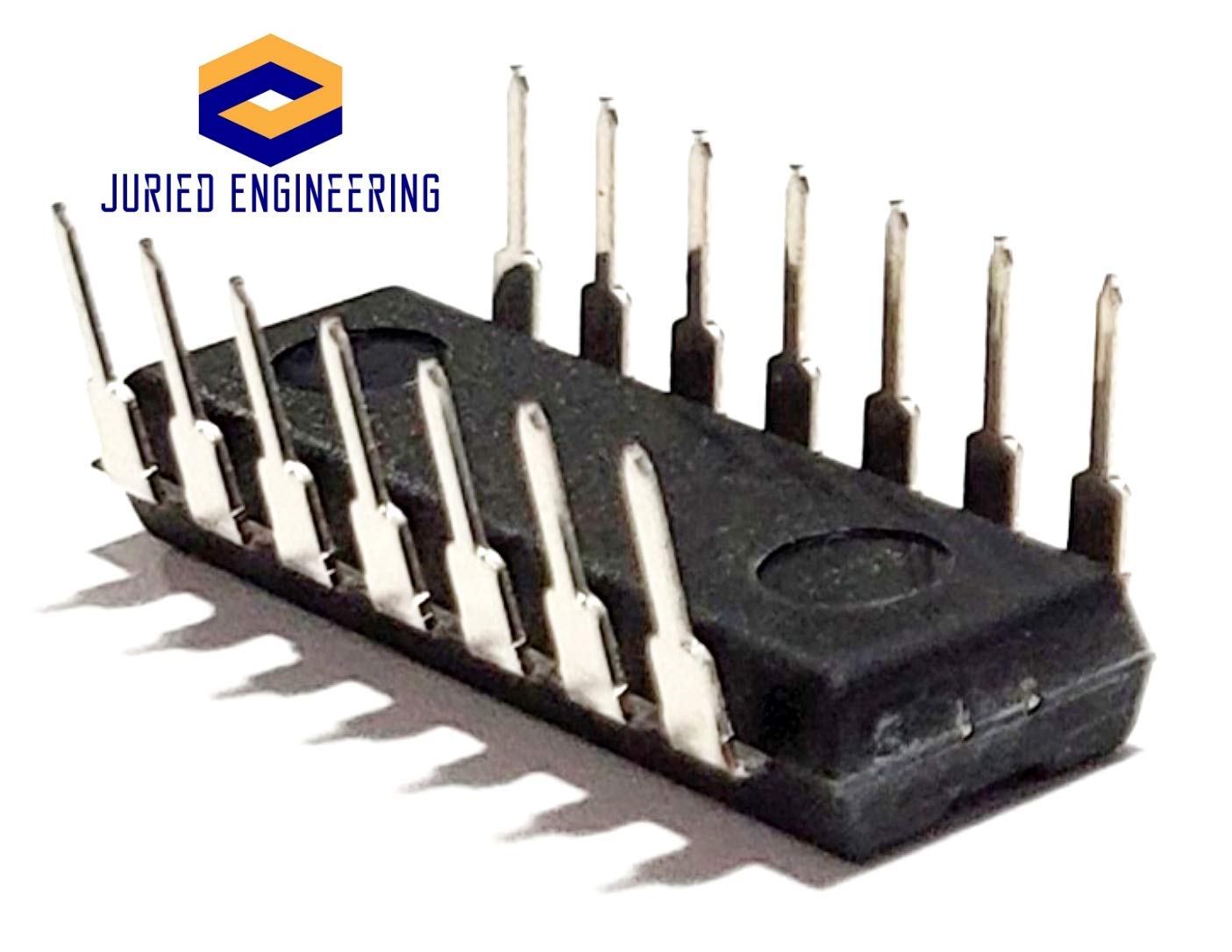

CD4073BE CD4073 4073 CMOS Triple 3-Input and Gate Breadboard-Friendly IC DIP-14 (Pack of 20)
Product details
| Management number | 218170853 | Release Date | 2026/05/03 | List Price | $9.19 | Model Number | 218170853 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The CD4073B AND gates, provide the system designer with direct implementation of the AND function and supplement the existing family of CMOS gates.
- The CD4073B AND gates, provide the system designer with direct implementation of the AND function and supplement the existing family of CMOS gates
- Medium-Speed Operation - tPLH, tPHL = 60 ns (typ.) at VDD = 10 V, 100% tested for quiescent current at 20 V
- Maximum input current of 1 µA at 18 V over full package-temperature range: 100 nA at 18 V and 25°C
- Noise margin (full package-temperature range) = 1 V at VDD = 5 V, 2 V at VDD = 10 V, 2.5 V at VDD = 15 V, Standardized, symmetrical output characteristics
- 5-V, 10-V, and 15-V parametric ratings, Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"
| Manufacturer | TI |
|---|---|
| Item model number | CD4073BE |
