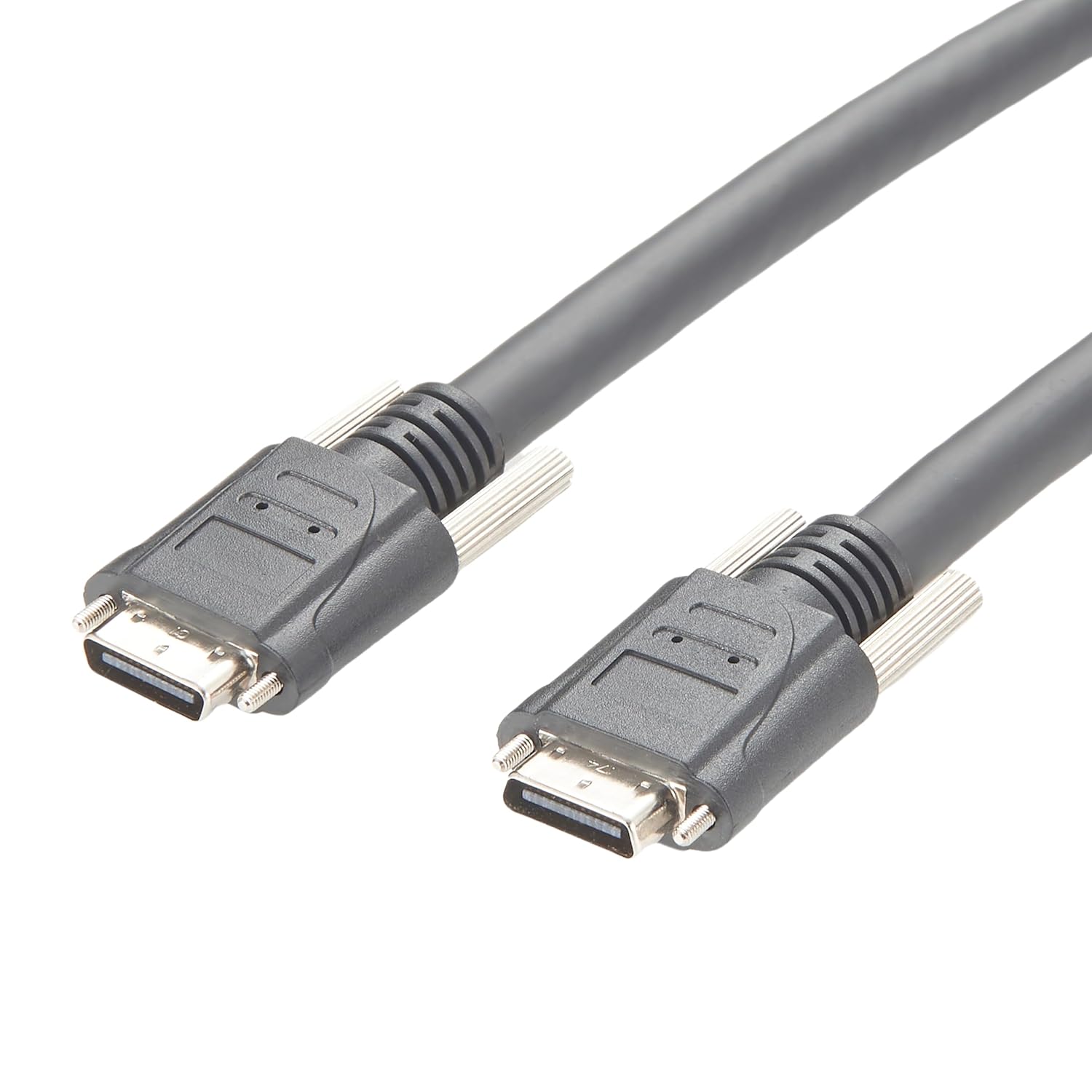

Camera Link SDR 26Pin Male to SDR26 Cable PoCL Power Over Camera Link Machine Vision High Flex Cable with Screw Lock for Frame Grabber Medical Imaging (5M/16FT)
Product details
| Management number | 215115074 | Release Date | 2026/04/12 | List Price | $60.00 | Model Number | 215115074 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specifications:Connector Type: SDR 26Pin to SDR26Gender: Male to MaleWire Gauge: 28AWGCable Length: 10FT/16FT/33FTJacket Material: UL20276 PVC High Flex Drag ChainOD: 9.5MMTechnology: PoCL Power Over Camera LinkApplication:Machine Vision Systems including Frame Grabbers and CamerasQuality Control and Automatic InspectionProcess Control SystemsMedical Devices and ImagingRobot Guidance and robotics
- ✔Product Parameter – Connector Type: SDR 26Pin Connector; Cable Length: 10FT/16FT/33FT Optional; OD: 9.5MM; Wire Gauge: 28AWG; Jacket Material: UL20276 PVC.
- ✔Advantage – The High Flex Drag Chain Cable with 1,000,000 flex cycle rating,conforms to UL standards and RoHS Directive.The real-time Machine Vision protocol to assure fast transfer of large files with no latency issues.
- ✔Screw Lock – SDR26 (shrunk delta ribbon 26 pin) connectors are robust and durable with standard locking screws to prevent accidental disconnects on your critical applications.
- ✔PoCL – The assembly is capable of PoCL (Power over Camera Link) which allows the camera to be powered by the frame grabber through the Camera Link cable, eliminating the need for a separate power cable to save space, time and cost in your installations.
- ✔Application – This cable is suitable for Industrial Camera,Machine Vision,Frame Grabber,Medical imaging,Industrial Automation,Robot Visual,Traffic Monitoring,3D Vision,Process Control Systems.
- ✔Custom Cable – We are a professional cable manufacturer, please contact us for customised requirements.Please contact us if the cable you received is defective or does not work.We will solve the problems properly or send you a new replacement at once.

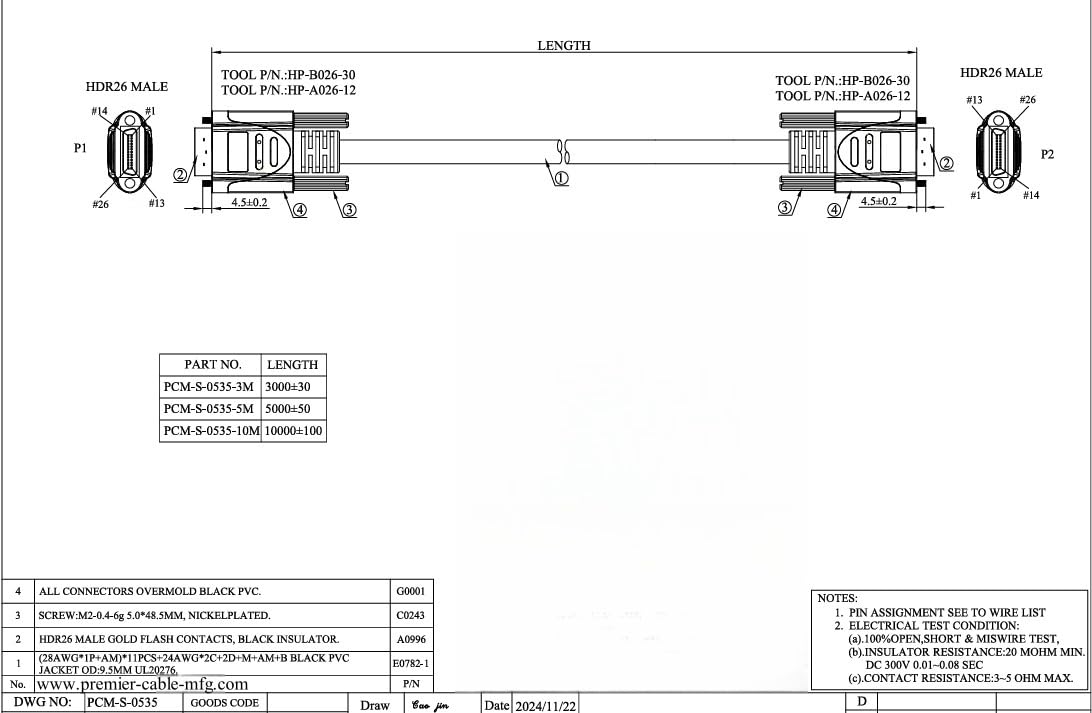

| Model | PCM-S-0535 |
|---|---|
| Brand Name | Plinkwirekb |
| Cable Type | Camera Link |
| Item Shape | Round |
| Model Name | SDR 26Pin to SDR Cable |
| Item Weight | 0.61 Kilograms |
| Manufacturer | dongguanshijindiedianzi |
| Connector Type | Sdr 26pin |
| Outer Material | Polyvinyl Chloride (PVC) |
| Number of Items | 1 |
| Connector Gender | Male-to-Male |
| Compatible Devices | for Industrial Camera,Machine Vision,Frame Grabber,Medical imaging,Industrial Automation,Robot |
| Included Components | 1*Camera Link SDR 26Pin Male to SDR26 Male Cable |
| Other Special Features of the Product | High Flex Drag Chain,low latency, high bandwidth |
